Package Include:
1 x Receiver: S1PFD-DC
1 x Transmitter: CP-3
1 x User manual
Application:
This receiver is a wireless controller for DC motor or linear actuator, it and the transmitter form a wireless transmitter receiver system. If you connect a DC motor to this receiver, you can operate the motor to rotate in positive or reversal direction by the remote control. If you connect a DC linear actuator to this receiver, you can operate the linear actuator to extend or retract by the remote control.
This receiver has a time delay function where you can freely set the forward and reverse working time of DC motor or linear actuator. When you operate the motor to run, the motor will stop automatically after the set delay time.
Feature:
Wireless control, easy to install.
Suitable for DC motor or linear actuator.
DC 7~27V operating voltage range.
You can operate the motor to rotate in positive or reversal direction by the transmitter.
You can operate the linear actuator to extend or retract by the transmitter.
With working mode setting button: 5 different working modes can be switched.
With LED display screen: The LED screen will display the working mode and working time.
With time delay function: You can set the forward and reverse working time of DC motor or linear actuator.
With wired control terminals: You can connect manual switches to control the motor or linear actuator.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model: S1PFD-DC
Operating Voltage: DC 7~27V
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Output Type: DC 7~27V (The output voltage is the same as the input voltage)
Suitable Wires for Connecting Terminals: 22-12 AWG
5 Selectable Working Modes: Delay working mode, Single signal trigger delay working mode, Automatic cycle working mode, Momentary, Self-locking
Operating Temperature: -20°C ~ +70°C
PCB size: 93 x 88 x 24 mm (3.7 x 3.5 x 0.9 inches)
Case size: 104 x 89 x 40 mm (4.1 x 3.5 x 1.6 inches)
Transmitter Parameters:
Model No: CP-3
Channel/Button: 3
Button Symbol:▲▇▼
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Standby current: 4uA
Operating Current: 14mA
Operating Frequency: 433Mhz
Transmitting Distance: 500m / 1500ft (theoretically)
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 92mm x 40mm x 15mm
Matching Transmitters:
This receiver can work with different transmitters, such as model CWC-3L (waterproof, 50 Meter / 150 feet), C-3-2 (100 Meter / 300 feet), CP-3 (500 Meter / 1500 feet), CG-3 (500 Meter / 1500 feet) or CB-3-2 (1000 Meter / 3000 feet).
Working Range:
With a transmitter (such as CP-3) to form a complete set, the maximum working distance can reach 1500ft feet or 500 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no interference. But in the practice, it will be hindered by trees, walls, or other construction, and will be interfered by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
The receiver equipped with an external antenna has a larger working range than the receiver equipped with an internal antenna.
Usage:
The receiver can be used to control DC 12V / 24V motor or linear actuator.

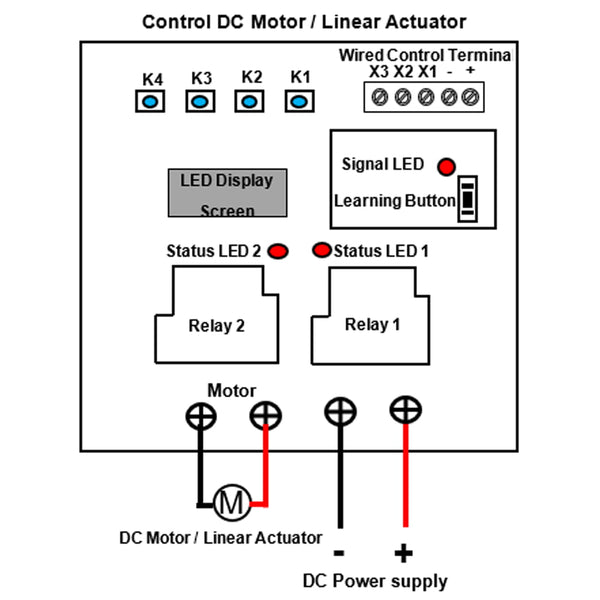

Wiring:
If you want to control a DC 12V / 24V motor or linear actuator, do as following:
1) Connect the positive pole of DC power supply to terminal <+> of the receiver, and connect the negative pole of DC power supply to terminal <-> of the receiver.
2) Connect two wires of motor or linear actuator to terminals <Motor> of the receiver, and you can exchange these two wires to change the rotating direction of motor or the moving direction of linear actuator.
How to set different working modes:
The receiver will be set in "P--1" Delay working mode before leaving the factory, if you want to use another mode, please follow the following steps.
The receiver has four buttons, button K1 is the setting button, and buttons K2, K3, and K4 are delay time adjustment buttons.
When the receiver is powered on, the LED screen lights up. If you press and hold the button K1 for 2-3 seconds, the LED screen will display "P--1", and the receiver enters the working mode setting. At this time, you may press the button K2 or K3 to switch the display text of the LED screen, different text on the LED screen correspond to different working modes. The text can be switched from "P--1" to "P--6".
"P--1" means delay working mode.
"P--2" means single signal trigger delay working mode.
"P--3" means automatic cycle working mode.
"P--4" means momentary working mode.
"P--5" means self-locking working mode.
"P--6" working mode is useless.
Notice: When the receiver is operating in "P--1", "P--2" or "P--3" working mode, you will need to set the corresponding delay time.
1. Setting delay working mode:
When the receiver is in the working mode setting state, press the button K2 or K3 to switch the display text until the LED screen displays "P--1".
How to set the delay time:
1) After setting the "P--1" working mode, press the K1 button again to enter the setting of the forward working time, and the LED screen will display "A001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
2) Press the K1 button again to enter the setting of the reverse working time, and the LED screen will display "b001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
3) After setting the delay times, press the K1 button again to exit the setting state.
The operation by the transmitter, such as CP-3:
1) Press the button <UP> on the transmitter: DC motor rotates in positive direction, or linear actuator extends outward; After the forward working time, DC motor or linear actuator automatically stops. During the working time, you can also press the button <STOP> to immediately stop DC motor or linear actuator.
2) Press the button <DOWN> on the transmitter: DC motor rotates in reversal direction, or linear actuator inward retracts; After the reverse working time, DC motor or linear actuator automatically stops. During the working time, you can also press the button <STOP> to immediately stop DC motor or linear actuator.
2. Setting single signal trigger delay working mode:
When the receiver is in the working mode setting state, press the button K2 or K3 to switch the display text until the LED screen displays "P--2".
How to set the delay time:
1) After setting the "P--2" working mode, press the K1 button again to enter the setting of the forward working time, and the LED screen will display "A001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
2) Press the K1 button again to enter the setting of the waiting time, and the LED screen will display "b001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
3) Press the K1 button again to enter the setting of the reverse working time, and the LED screen will display "C001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
4) After setting the delay times, press the K1 button again to exit the setting state.
The operation by the transmitter, such as CP-3:
1) Press the button <UP> on the transmitter: DC motor rotates in positive direction, or linear actuator extends outward; After the forward working time, DC motor or linear actuator automatically stops. During the working time, you can also press the button <STOP> to immediately stop DC motor or linear actuator.
2) After the waiting time, DC motor automatically rotates in reversal direction, or linear actuator automatically retracts inward; After the reverse working time, DC motor or linear actuator automatically stops. During the working time, you can also press the button <STOP> to immediately stop DC motor or linear actuator.
3. Setting automatic cycle working mode:
When the receiver is in the working mode setting state, press the button K2 or K3 to switch the display text until the LED screen displays "P--3". (The power of the receiver needs to be restarted after switching from other operating modes to the auto-cycle working mode.)
How to set the delay time:
1) After setting the "P--3" working mode, press the K1 button again to enter the setting of the forward working time, and the LED screen will display "A001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
2) Press the K1 button again to enter the setting of the waiting time, and the LED screen will display "b001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
3) Press the K1 button again to enter the setting of the reverse working time, and the LED screen will display "C001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
4) After setting the delay times, press the K1 button again to exit the setting state.
The operation by the transmitter, such as CP-3:
1) After the automatic cycle working mode is set, DC motor will automatically rotate in positive direction, or linear actuator automatically extends outward; After the forward working time, DC motor or linear actuator automatically stops.
2) After the waiting time, DC motor automatically rotates in reversal direction, or linear actuator automatically retracts inward; After the reverse working time, DC motor or linear actuator automatically stops.
3) After the waiting time, DC motor automatically rotates in positive direction again, or linear actuator automatically extends outward again. In this way, the DC motor or linear actuator will keep working in a loop.
4) At any time, you can press the button <STOP> on the transmitter to stop the cycle working.
Notice: During the cyclic working, if you press the button <STOP> to stop the cycle working, you need to restart the power supply to start the cycle working again.
The meaning of the decimal point when it is in different positions:
When there is no decimal point, it means that the delay time is seconds. For example, “A002” means 2 seconds.
When the decimal point is in the first position, it means that the delay time is minutes. For example, “A002.” means 2 minutes.
When the decimal point is in the third position, it means that the delay time is 0.01 second. For example, “A0.02” means 0.02 seconds.
When the decimal point is in the second position, it means that the delay time is 0.1 second. For example, “A00.2” means 0.2 seconds.
4. Setting Momentary mode:
When the receiver is in the working mode setting state, press the button K2 or K3 to switch the display text until the LED screen displays "P--4".
The operation by the transmitter, such as CP-3:
1) Press and hold the button <UP> on the transmitter: DC motor rotates in positive direction, or linear actuator extends outward; Release the button <UP>, DC motor or linear actuator stops.
2) Press and hold the button <DOWN> on the transmitter: DC motor rotates in reversal direction, or linear actuator inward retracts; Release the button <DOWN>, DC motor or linear actuator stops.
5. Setting Self-locking mode:
When the receiver is in the working mode setting state, press the button K2 or K3 to switch the display text until the LED screen displays "P--5".
The operation by the transmitter, such as CP-3:
1) Press the button <UP> on the transmitter: DC motor rotates in positive direction, or linear actuator extends outward; Press the button <UP> again or press the button <STOP>, DC motor or linear actuator stops.
2) Press the button <DOWN> on the transmitter: DC motor rotates in reversal direction, or linear actuator inward retracts; Press the button <DOWN> again or press the button <STOP>, DC motor or linear actuator stops.

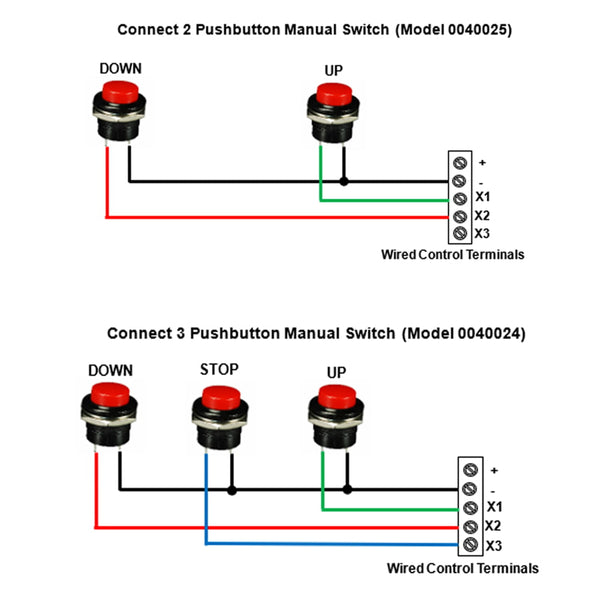

Wired control terminals:
The receiver has wired control terminals, and you can connect external devices (with normally open contact), sensors, or manual switches to these terminals, then use them to operate the motor or the linear actuator.
For example, you can connect three manual switches to wired control terminals <->, <X1>, <X2> and <X3> according to following wiring diagram.
The operation of the manual switch in different working modes is the same as that of the transmitter.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the factory.
1) Press the learning button in the receiver for 1- 2 seconds, the signal LED in the receiver turns on, this indicates that the receiver enters the learning state.
2) First press the <UP>button on the transmitter, the signal LED will flash once. Then press the <STOP> button on the transmitter, the signal LED will flash once. Finally press the <DOWN> button on the transmitter, the signal LED will flash once. This indicates that the pairing with three buttons is successful.
3) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
We have paired the transmitter to the receiver, if you don’t want the receiver to work with the transmitter, you can delete all transmitters codes stored in the receiver.
Operation: Press and hold the learning button in the receiver for 9-10 seconds, the signal LED lights up, then flashes three times quickly and then goes out, at this time release the learning button, this indicates that all stored codes have been successfully deleted.
1 x Receiver: S1PFD-DC
1 x Transmitter: CP-3
1 x User manual
Application:
This receiver is a wireless controller for DC motor or linear actuator, it and the transmitter form a wireless transmitter receiver system. If you connect a DC motor to this receiver, you can operate the motor to rotate in positive or reversal direction by the remote control. If you connect a DC linear actuator to this receiver, you can operate the linear actuator to extend or retract by the remote control.
This receiver has a time delay function where you can freely set the forward and reverse working time of DC motor or linear actuator. When you operate the motor to run, the motor will stop automatically after the set delay time.
Feature:
Wireless control, easy to install.
Suitable for DC motor or linear actuator.
DC 7~27V operating voltage range.
You can operate the motor to rotate in positive or reversal direction by the transmitter.
You can operate the linear actuator to extend or retract by the transmitter.
With working mode setting button: 5 different working modes can be switched.
With LED display screen: The LED screen will display the working mode and working time.
With time delay function: You can set the forward and reverse working time of DC motor or linear actuator.
With wired control terminals: You can connect manual switches to control the motor or linear actuator.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model: S1PFD-DC
Operating Voltage: DC 7~27V
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Output Type: DC 7~27V (The output voltage is the same as the input voltage)
Suitable Wires for Connecting Terminals: 22-12 AWG
5 Selectable Working Modes: Delay working mode, Single signal trigger delay working mode, Automatic cycle working mode, Momentary, Self-locking
Operating Temperature: -20°C ~ +70°C
PCB size: 93 x 88 x 24 mm (3.7 x 3.5 x 0.9 inches)
Case size: 104 x 89 x 40 mm (4.1 x 3.5 x 1.6 inches)
Transmitter Parameters:
Model No: CP-3
Channel/Button: 3
Button Symbol:▲▇▼
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Standby current: 4uA
Operating Current: 14mA
Operating Frequency: 433Mhz
Transmitting Distance: 500m / 1500ft (theoretically)
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 92mm x 40mm x 15mm
Matching Transmitters:
This receiver can work with different transmitters, such as model CWC-3L (waterproof, 50 Meter / 150 feet), C-3-2 (100 Meter / 300 feet), CP-3 (500 Meter / 1500 feet), CG-3 (500 Meter / 1500 feet) or CB-3-2 (1000 Meter / 3000 feet).
Working Range:
With a transmitter (such as CP-3) to form a complete set, the maximum working distance can reach 1500ft feet or 500 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no interference. But in the practice, it will be hindered by trees, walls, or other construction, and will be interfered by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
The receiver equipped with an external antenna has a larger working range than the receiver equipped with an internal antenna.
Usage:
The receiver can be used to control DC 12V / 24V motor or linear actuator.
Wiring:
If you want to control a DC 12V / 24V motor or linear actuator, do as following:
1) Connect the positive pole of DC power supply to terminal <+> of the receiver, and connect the negative pole of DC power supply to terminal <-> of the receiver.
2) Connect two wires of motor or linear actuator to terminals <Motor> of the receiver, and you can exchange these two wires to change the rotating direction of motor or the moving direction of linear actuator.
How to set different working modes:
The receiver will be set in "P--1" Delay working mode before leaving the factory, if you want to use another mode, please follow the following steps.
The receiver has four buttons, button K1 is the setting button, and buttons K2, K3, and K4 are delay time adjustment buttons.
When the receiver is powered on, the LED screen lights up. If you press and hold the button K1 for 2-3 seconds, the LED screen will display "P--1", and the receiver enters the working mode setting. At this time, you may press the button K2 or K3 to switch the display text of the LED screen, different text on the LED screen correspond to different working modes. The text can be switched from "P--1" to "P--6".
"P--1" means delay working mode.
"P--2" means single signal trigger delay working mode.
"P--3" means automatic cycle working mode.
"P--4" means momentary working mode.
"P--5" means self-locking working mode.
"P--6" working mode is useless.
Notice: When the receiver is operating in "P--1", "P--2" or "P--3" working mode, you will need to set the corresponding delay time.
1. Setting delay working mode:
When the receiver is in the working mode setting state, press the button K2 or K3 to switch the display text until the LED screen displays "P--1".
How to set the delay time:
1) After setting the "P--1" working mode, press the K1 button again to enter the setting of the forward working time, and the LED screen will display "A001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
2) Press the K1 button again to enter the setting of the reverse working time, and the LED screen will display "b001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
3) After setting the delay times, press the K1 button again to exit the setting state.
The operation by the transmitter, such as CP-3:
1) Press the button <UP> on the transmitter: DC motor rotates in positive direction, or linear actuator extends outward; After the forward working time, DC motor or linear actuator automatically stops. During the working time, you can also press the button <STOP> to immediately stop DC motor or linear actuator.
2) Press the button <DOWN> on the transmitter: DC motor rotates in reversal direction, or linear actuator inward retracts; After the reverse working time, DC motor or linear actuator automatically stops. During the working time, you can also press the button <STOP> to immediately stop DC motor or linear actuator.
2. Setting single signal trigger delay working mode:
When the receiver is in the working mode setting state, press the button K2 or K3 to switch the display text until the LED screen displays "P--2".
How to set the delay time:
1) After setting the "P--2" working mode, press the K1 button again to enter the setting of the forward working time, and the LED screen will display "A001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
2) Press the K1 button again to enter the setting of the waiting time, and the LED screen will display "b001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
3) Press the K1 button again to enter the setting of the reverse working time, and the LED screen will display "C001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
4) After setting the delay times, press the K1 button again to exit the setting state.
The operation by the transmitter, such as CP-3:
1) Press the button <UP> on the transmitter: DC motor rotates in positive direction, or linear actuator extends outward; After the forward working time, DC motor or linear actuator automatically stops. During the working time, you can also press the button <STOP> to immediately stop DC motor or linear actuator.
2) After the waiting time, DC motor automatically rotates in reversal direction, or linear actuator automatically retracts inward; After the reverse working time, DC motor or linear actuator automatically stops. During the working time, you can also press the button <STOP> to immediately stop DC motor or linear actuator.
3. Setting automatic cycle working mode:
When the receiver is in the working mode setting state, press the button K2 or K3 to switch the display text until the LED screen displays "P--3". (The power of the receiver needs to be restarted after switching from other operating modes to the auto-cycle working mode.)
How to set the delay time:
1) After setting the "P--3" working mode, press the K1 button again to enter the setting of the forward working time, and the LED screen will display "A001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
2) Press the K1 button again to enter the setting of the waiting time, and the LED screen will display "b001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
3) Press the K1 button again to enter the setting of the reverse working time, and the LED screen will display "C001". At this time, you can press the K2 button to increases the delay time, or press the K3 button to reduce the delay time, or press the K4 button to set the position of the decimal point.
4) After setting the delay times, press the K1 button again to exit the setting state.
The operation by the transmitter, such as CP-3:
1) After the automatic cycle working mode is set, DC motor will automatically rotate in positive direction, or linear actuator automatically extends outward; After the forward working time, DC motor or linear actuator automatically stops.
2) After the waiting time, DC motor automatically rotates in reversal direction, or linear actuator automatically retracts inward; After the reverse working time, DC motor or linear actuator automatically stops.
3) After the waiting time, DC motor automatically rotates in positive direction again, or linear actuator automatically extends outward again. In this way, the DC motor or linear actuator will keep working in a loop.
4) At any time, you can press the button <STOP> on the transmitter to stop the cycle working.
Notice: During the cyclic working, if you press the button <STOP> to stop the cycle working, you need to restart the power supply to start the cycle working again.
The meaning of the decimal point when it is in different positions:
When there is no decimal point, it means that the delay time is seconds. For example, “A002” means 2 seconds.
When the decimal point is in the first position, it means that the delay time is minutes. For example, “A002.” means 2 minutes.
When the decimal point is in the third position, it means that the delay time is 0.01 second. For example, “A0.02” means 0.02 seconds.
When the decimal point is in the second position, it means that the delay time is 0.1 second. For example, “A00.2” means 0.2 seconds.
4. Setting Momentary mode:
When the receiver is in the working mode setting state, press the button K2 or K3 to switch the display text until the LED screen displays "P--4".
The operation by the transmitter, such as CP-3:
1) Press and hold the button <UP> on the transmitter: DC motor rotates in positive direction, or linear actuator extends outward; Release the button <UP>, DC motor or linear actuator stops.
2) Press and hold the button <DOWN> on the transmitter: DC motor rotates in reversal direction, or linear actuator inward retracts; Release the button <DOWN>, DC motor or linear actuator stops.
5. Setting Self-locking mode:
When the receiver is in the working mode setting state, press the button K2 or K3 to switch the display text until the LED screen displays "P--5".
The operation by the transmitter, such as CP-3:
1) Press the button <UP> on the transmitter: DC motor rotates in positive direction, or linear actuator extends outward; Press the button <UP> again or press the button <STOP>, DC motor or linear actuator stops.
2) Press the button <DOWN> on the transmitter: DC motor rotates in reversal direction, or linear actuator inward retracts; Press the button <DOWN> again or press the button <STOP>, DC motor or linear actuator stops.
Wired control terminals:
The receiver has wired control terminals, and you can connect external devices (with normally open contact), sensors, or manual switches to these terminals, then use them to operate the motor or the linear actuator.
For example, you can connect three manual switches to wired control terminals <->, <X1>, <X2> and <X3> according to following wiring diagram.
The operation of the manual switch in different working modes is the same as that of the transmitter.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the factory.
1) Press the learning button in the receiver for 1- 2 seconds, the signal LED in the receiver turns on, this indicates that the receiver enters the learning state.
2) First press the <UP>button on the transmitter, the signal LED will flash once. Then press the <STOP> button on the transmitter, the signal LED will flash once. Finally press the <DOWN> button on the transmitter, the signal LED will flash once. This indicates that the pairing with three buttons is successful.
3) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
We have paired the transmitter to the receiver, if you don’t want the receiver to work with the transmitter, you can delete all transmitters codes stored in the receiver.
Operation: Press and hold the learning button in the receiver for 9-10 seconds, the signal LED lights up, then flashes three times quickly and then goes out, at this time release the learning button, this indicates that all stored codes have been successfully deleted.
