Package Include:
1 x Receiver: S1PFCW-AC-ANT3
1 x Transmitter: CC-3-2
1 x 4-core cable with male connector
1 x User manual
Introduction:
This receiver is a super long range remote switch. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. It uses a transceiver chip to implement bidirectional communication. It’s ideal working distance is up to 5 kilometers, which is an excellent device for remote control and long-distance communication.
Application:
This receiver is a wireless controller for AC motor, it and the transmitter form a wireless transmitter receiver system. If you connect a AC motor to this receiver, you can operate the motor to rotate in positive or reversal direction by the remote control. You can connect two limit switches to the receiver and use them to stop the motor. It can be used in rolling blinds, rolling doors, projection screens, awnings, pumps, winches, conveyors or other appliances and equipment with AC motors.
Feature:
Wireless control, easy to install.
Suitable for AC motors.
Super long working range: With the transmitter forming a complete set, the maximum working distance may reach 5000 meters in an open area.
Waterproof: The receiver has a waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.
High Power: It can work at maximum current 30A.
With limit control terminals: You can connect sensors, limit switches or external devices to stop the motor.
You can use the transmitter / remote to control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Feedback Function:
The receiver and the transmitter have a Two-way working mode, so the user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the signal from the transmitter, it will immediately transmit a feedback signal to the transmitter. When the transmitter receives this signal, it will send out a buzzing sound to inform you that the receiver has been successfully triggered.

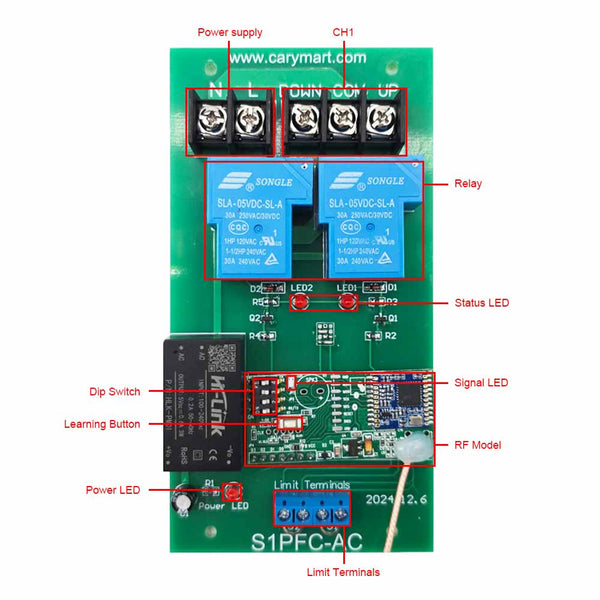

Receiver Parameters:
Model: S1PFCW-AC-ANT3
Operating Voltage: 110~240V AC (110V/120V/220V/240V), but does not work on US 220V motors.
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 1 CH, can work with 1 AC motor
Output Type: 110~240V AC (110V/120V/220V/240V)
Maximum Working Current: 30A / each channel, so motor's maximum starting current cannot exceed 30A.
Suitable Wires for Connecting Terminals: 22-12 AWG
2 Selectable Modes: Momentary, Interlocking
Operating Temperature: -20 °C ~ +70 °C
PCB Size: 140 x 73 x 18 mm (5.5 x 2.9x 0.7 inches)
Case Size: 192 x 100 x 45 mm (7.5 x 3.9 x 1.8 inches)
Transmitter Parameters:
Model: 0021097 (CC-3-2)
Channel / Button: 3
Button Symbol: ▲, ■, ▼
Operating Voltage: 9V (1 x 6F22-9V battery, can be used for 12 months)
Quiescent Current: 5μA
Working Current: 65mA (when the transmitter is transmitting the signal), 16mA( when the transmitter is receiving the signal).
Operating Frequency: 433.92 MHz
Modulation Mode: FSK + LORA
Maximum Transmitting Distance: 5000 meters / 15000 feet (theoretically)
Operating Temperature: -20°C ~ +70°C
Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)
Matching Transmitters:
This receiver only works with 5000m transmitters, such as model CC-3-2 (5000 Meter / 15000 feet).
Super Long Working Range:
The receiver and the transmitter form a wireless remote control switch, the maximum working distance may reach 15000 feet or 5000 meters in an open area.
The maximum working distance is based on theoretical data without obstacles and any RF interference. In practice, it will be hindered by trees, walls, or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
Usage:
The receiver can be used to control AC 110~240V (110V/120V/220V/240V) motor.
Note: It does not work on US 220V power supply or 220V motors.
Wiring:
If you want to control an AC 120V motor, do as following:
1) Connect the live wire of AC power supply to terminal <L>, and connect the neutral wire of AC power supply to terminal <N>.
2) Connect the forward wire of the AC motor to the terminal <UP>, connect the reverse wire of the AC motor to the terminal <DOWN>, and connect the neutral wire of the AC motor to the terminal <COM>.
Setting different working modes:
The receiver will be set in Interlocking mode before leaving the factory, if you require momentary mode, please follow the following steps.
1) Setting Interlocking mode: Turn on the second bit of the dip switch.
The operation of Interlocking mode with the transmitter CC-3-2:
Press the button ▲ on the transmitter: Motor rotates in positive direction.
Press the button ▼ on the transmitter: Motor rotates in reversal direction.
Press the button ■ on the transmitter: Motor stops.
2) Setting Momentary mode: Turn off the second bit and the third bit of the dip switch.
The operation of Momentary mode with the transmitter CC-3-2:
Press and hold the button ▲ on the transmitter: Motor rotates in positive direction.
Release the button ▲: Motor stops.
Press and hold the button ▼ on the transmitter: Motor rotates in reversal direction.
Release the button ▼: Motor stops.
Limit control terminals:
The receiver has limit control terminals, and you can connect external devices (with normally closed contact), such as sensors, limit switches to limit terminals, then use them to stop the motor.
For example, you can connect a normally closed limit switch to the two terminals of S1, and connect another normally closed limit switch to the two terminals of S2.
When the motor rotates in positive direction, if disconnect two terminals of S1, the motor will stop automatically.
When the motor rotates in reversal direction, if disconnect two terminals of S1, the motor will stop automatically.
