Introduction:
This is a long range RC transmitter and receiver kit, including a S1UW-DC-ANT3 receiver and a CC-2N transmitter. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. The transmitter CC-2N is a special long range remote control with normally open contact trigger, enabling easy connection to warning host, detector, sensor, limit switch, Programmable Logic Controllers and other AC or DC devices for automated control.
Key Features:
Super Long Working Range: Up to 5000m (15,000 ft) in open areas.

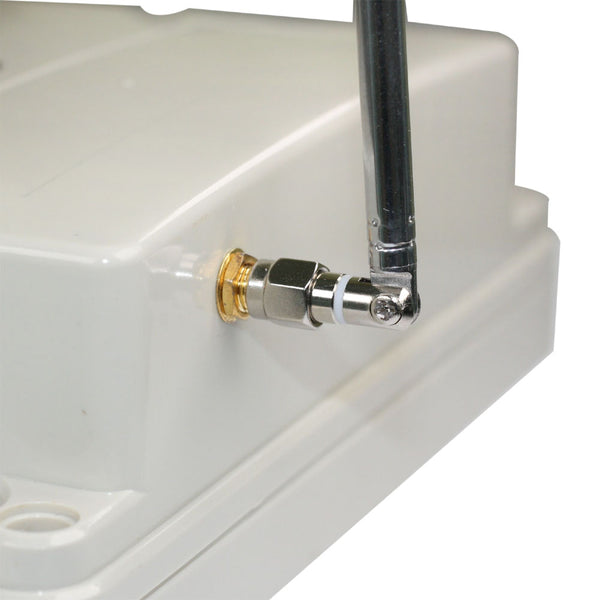

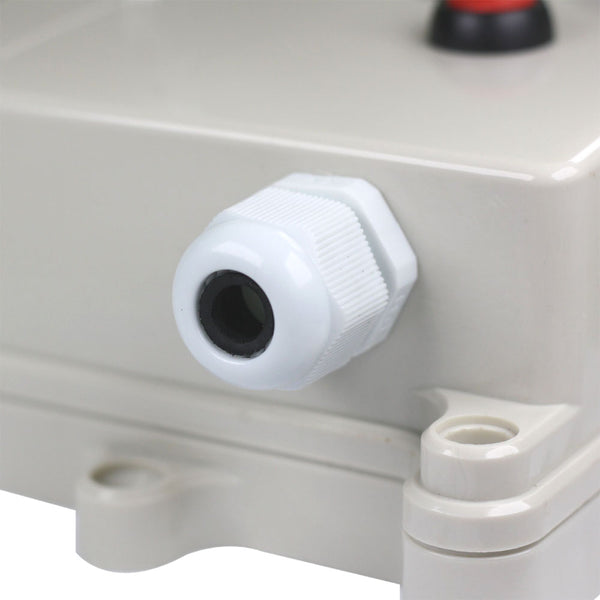

Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
Versatile Compatibility: Controls both DC and AC equipment by dry relay output.
Working Modes: Interlocking.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.

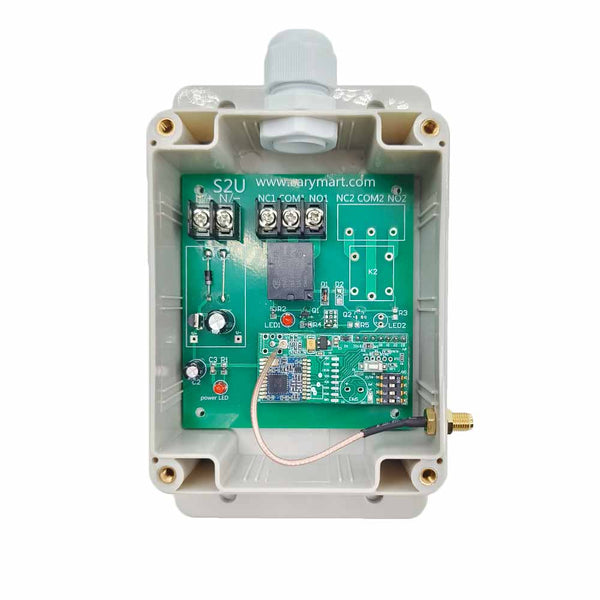

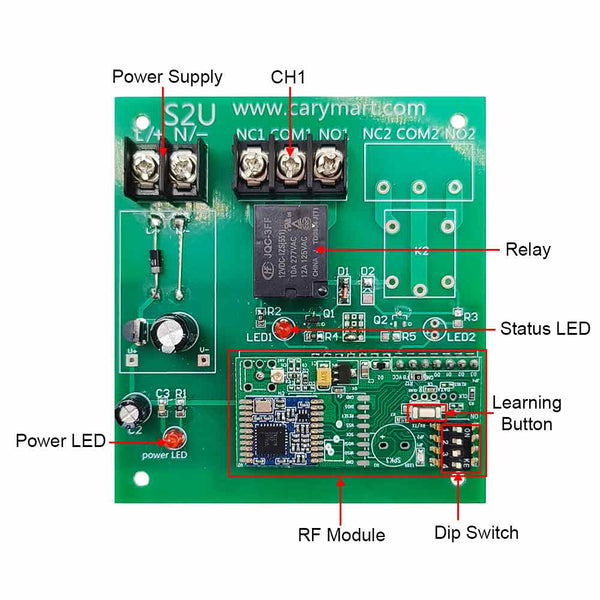

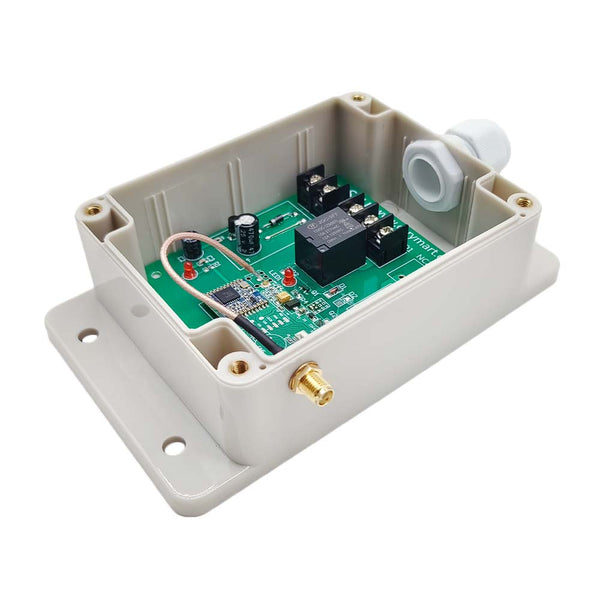

Receiver S1UW-DC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage Options | DC 6V, 9V, 12V, or 24V (specify when ordering) |
| Output Type | Dry Relay Output (With NO and NC Terminals) |
| Channel | 1 CH |
| Load Capacity | 240VAC or 28VDC, Max 10A/channel |
| Working Modes | Interlocking |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |

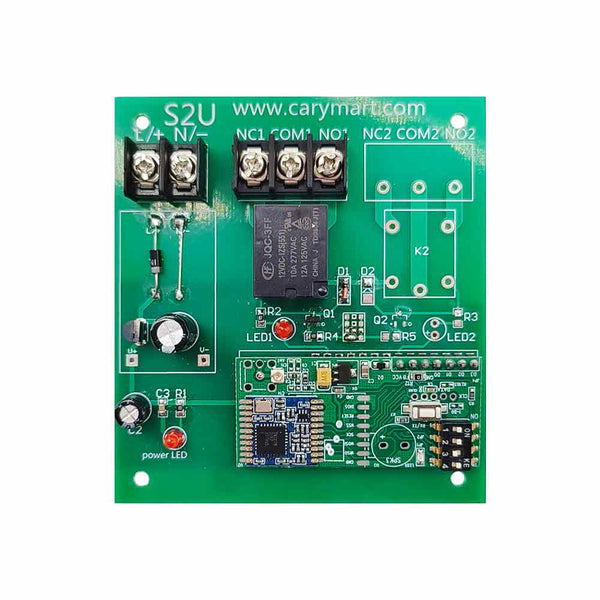

| PCB size | 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches) |
| Case size | 153 x 90 x 55 mm (6.0 x 3.6 x 2.2 inches) |
| Matching Transmitters | CC-2N (waterproof) |

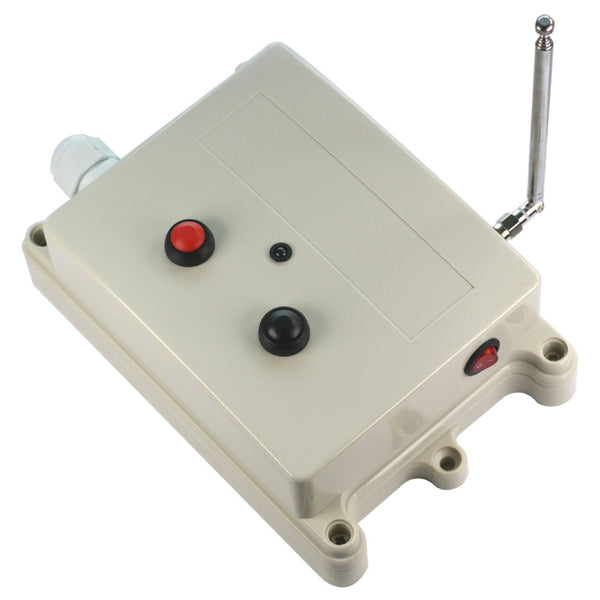

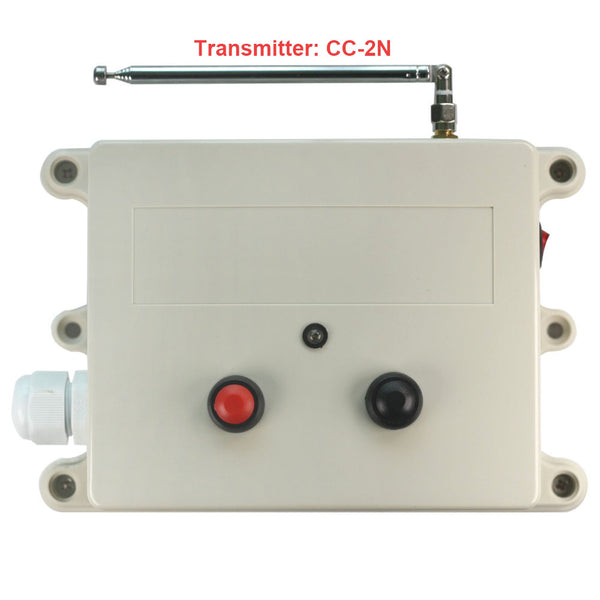

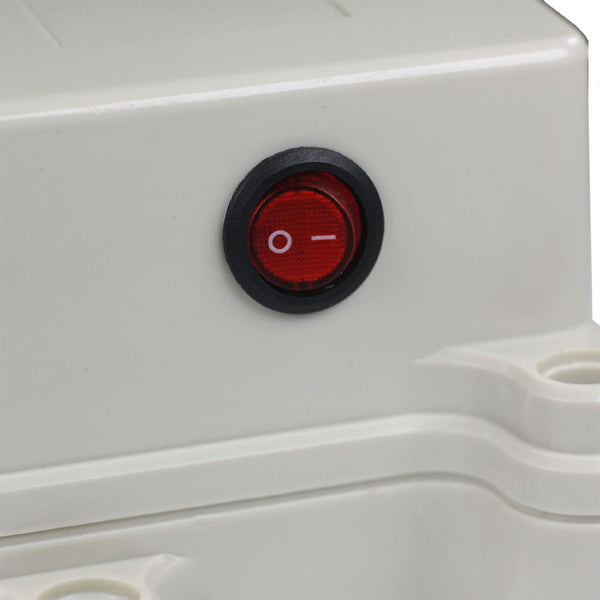

Transmitter CC-2N (2 Buttons) Parameters:
| Parameters | Detail |
|---|---|
| Triggering method | When 2 input terminals are connected, it will send wireless signal "ON". When 2 input terminals are disconnected, it will send wireless signal "OFF". |

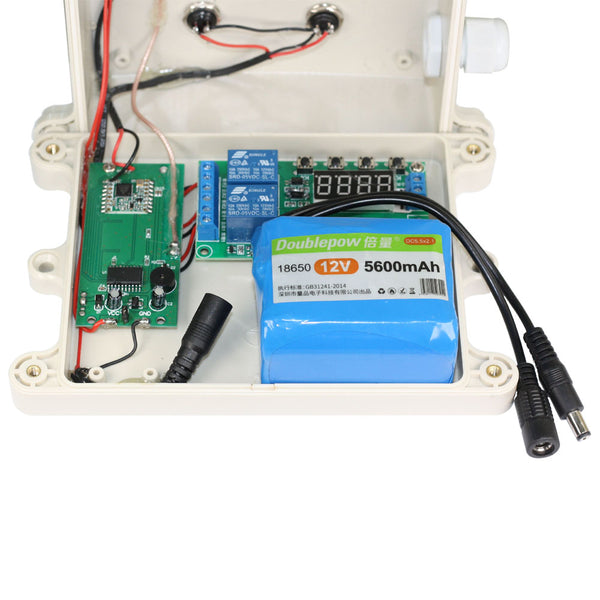

| Operating Voltage | 12V (12V Rechargeable Lithium Battery) |
| Operating Frequency | 433.92 Mhz |
| Transmitting Distance | 5000m / 15000ft (theoretically) |
| Unit Size | 178 x 120 x 60 mm (7.0 x 4.7 x 2.4 inches) |

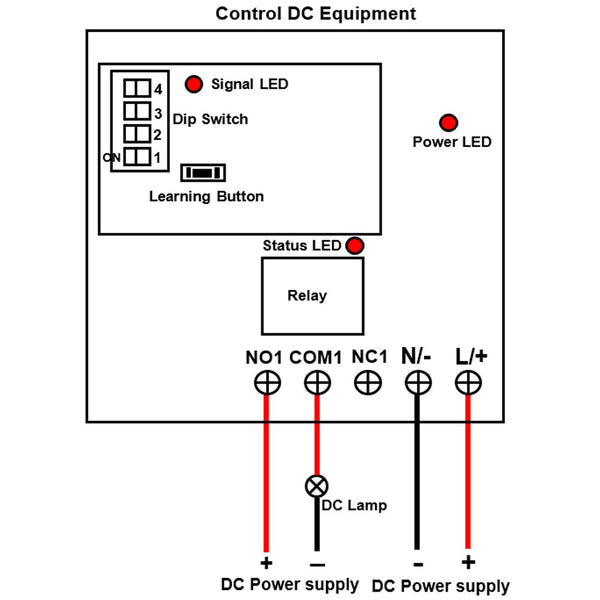

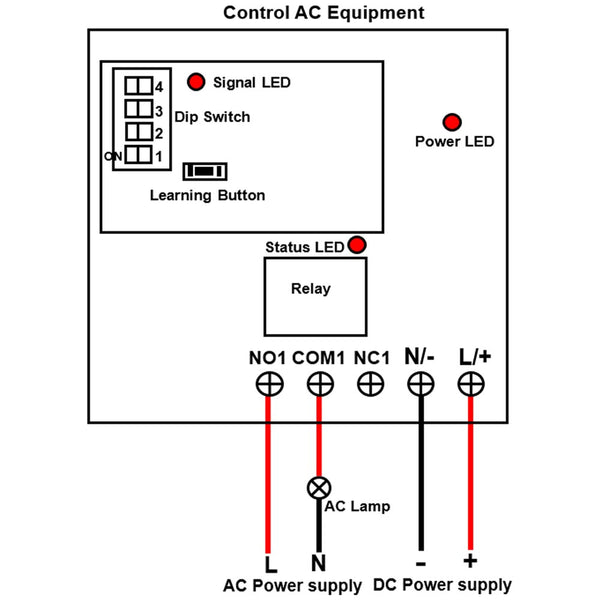

Set the receiver to Interlocking mode:
Turn on the first bit and the second bit of the dip switch.
Operation:

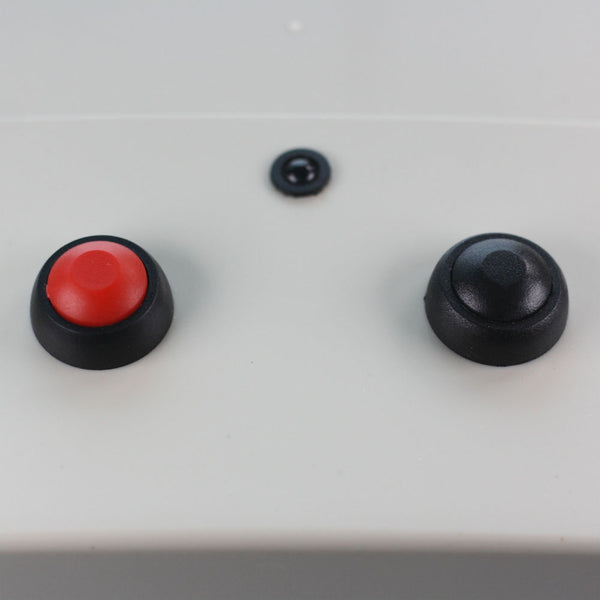

1) Control by the buttons on the transmitter CC-2N:
Press Red Button → Relay activates (device ON)
Press Black Button → Relay deactivates (device OFF)
2) Automatically control by the sensor:
Sensor activates → Transmitter emits wireless signal <ON> → Relay activates (device ON)
Sensor deactivates → Transmitter emits wireless signal <OFF> → Relay deactivates (device OFF)
