Application:

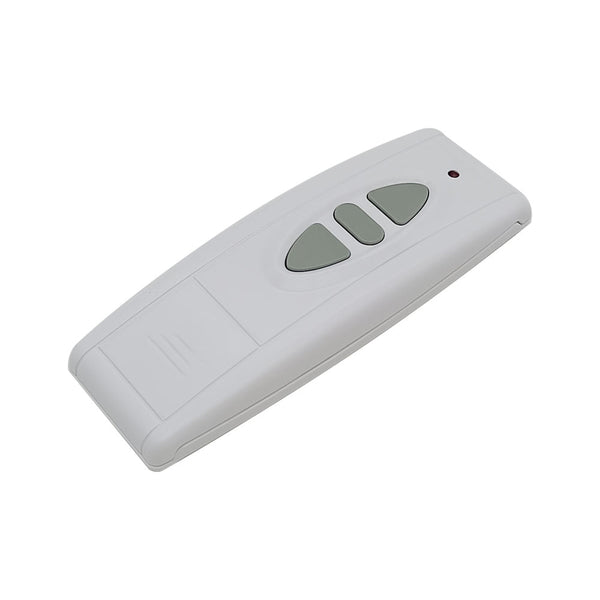

This transmitter has up, down, stop buttons, it is a wireless remote for DC or AC motor. It and the receiver form a wireless transmitter receiver system. This system can be used for roller shutters, rolling doors, projection screens, awnings, pumps, winches, conveyors, or other devices with DC or AC motors.
Product Description:
Model: 0021032 (CA-3)
Shell Color: White
Channel / Button: 3
Button Symbol: ▲ ■ ▼

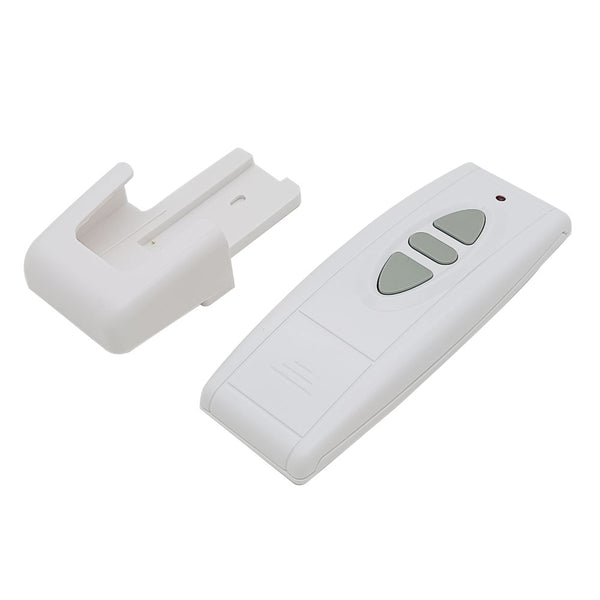

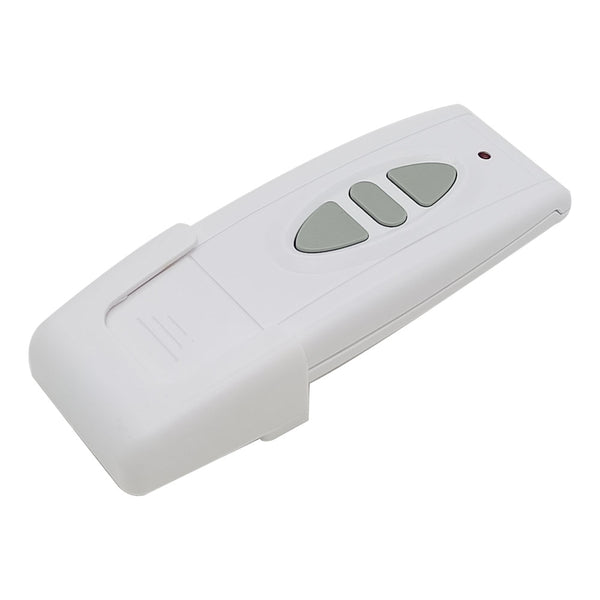

With wall mounting base
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Standby current: 4uA
Operating Current: 14mA
Operating Frequency: 433Mhz
Encoding Chip: EV1527
Encoding Type: Learning code (up to 1 million codes, reducing code collision and unauthorized code scanning possibilities.)
Transmitting Distance: 200m / 600ft (theoretically)
The distance of 200m is a theoretical data, it shall be operated in an open ground, no barriers, no interference. But in the practice, it will be hindered by trees, walls, or other constructions, and will be interfered by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 120 x 45 x 18 mm (4.7 x 1.8 x 0.7 inches)
Weight: 55g
Matching Receivers:
This transmitter can work with different DC or AC motor remote switches, such as model S1F1-DC, S1F2-DC, S1FC-DC, S1FU-DC, S1PF-DC, S1PF3-DC, S1F2-AC, S1FC-AC, S1PFC-AC.
