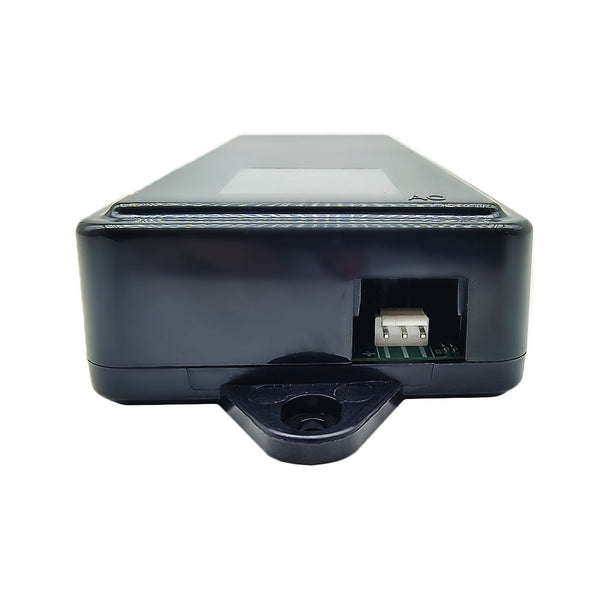

Sync Controller for Synchronize Two 2000N Linear Electrical Actuator A (Model 0043025)

Regular price $215.00

Shipping calculated at checkout.


Product Operation Demonstration Video:

Pair Remote to Synchronous Controller

Package Include:
1 x Synchronous Controller (One-Control-Two, For 2 Linear Actuators A / B / J with Hall effect sensors)
1 x Touch Control Handle
1 x Remote Control: CF-2
1 x 4-core cable with male connector
1 x User manual
Note: Two linear actuators A / B / J are not included, please order them separately. The remote control of the synchronous controller has two control modes, interlocking mode and momentary mode, please select a control mode you need when ordering. And the synchronous controller has two selectable external control functions, manual switch function or limit switch function, please select an external control function you need when ordering.

Introduction:
If you want to use multiple linear actuators to raise and lower an equipment, for example two, three or four electric actuators. Since the high-speed DC motors in electric actuators cannot run at exactly the same speed, so the movement speed of the electric actuator will also be different. When multiple electric actuators work at the same time, their actual speeds cannot be exactly the same. In this case, we can use a synchronous controller to operate multiple linear actuators to rise or fall synchronously. They work completely in sync without any difference.

Working principle:
If you want to use a synchronization controller to operate 2, 3 or 4 linear actuators fully synchronously, you will need to add built-in Hall effect sensors for each linear actuator. And when you have purchased Hall effect sensors along with linear actuators, we will install Hall effect sensors in the linear actuators during production for you. When 2, 3 or 4 linear actuators are running together, Hall sensor will send Hall signals to the synchronization controller, and the controller will adjust the running speed of each linear actuator, so that all linear actuators run at the exact same speed.

Feature:
It can operate two electric linear actuators A / B / J to run completely synchronously.
Wired control via a touch control handle or a manual switch (Model 0040025 optional).
Wireless control via a remote.
The LED display on the control handle will display the stroke position in real time.
Six touch function buttons: ▲, ▼, 1, 2, 3 and R.
Buttons ▲ and ▼ are used to operate the linear actuators extension and retraction.
Buttons 1, 2 and 3 are used to automatically operate the linear actuators to three pre-memorized positions.
Button R is the reset button and is used to reset the system in case of an error.
Two selectable external control functions: manual switch function or limit switch function, please select an external control function you need when ordering.
When linear actuators move close to the end position, they will automatically slow down to protect themselves.
When linear actuators are fully retracted, they will retain 1MM of travel to protect themselves.

Parameters:
Working Voltage: 10~30 VDC, suitable for 12V or 24V linear actuator
Number of connecting linear actuators: 2
Maximum output current: 10A / channel
Working Frequency: 433.92 MHz
Two selectable control modes: Interlocking mode or Momentary mode, please select a control mode you need when ordering.
Working Distance: 30m / 90ft (theoretically)
Operating Temperature: -20°C ~ +70°C
Case size: 240 x 95 x 43 mm (9.4 x 3.7 x 1.7 inches)
Cable length of the touch control handle: 2000±10%mm [80 in]

Power supply selection:
If you want to use it to synchronously control two linear actuators A, please use a 12V/10A or 24V/5A power supply.
If you want to use it to synchronously control two linear actuators B or J, please use a 12V/20A or 24V/10A power supply.


Connection:
1) Plug the touch control handle into the ports H of the controller.
2) Plug two linear actuators into the ports C2 and C3 of the controller.
3) Plug the manual switch into the ports C1 of the controller if you need to use an external manual switch.
4) Connect the positive pole of DC power supply to the brown wire of the controller and connect the negative pole of DC power supply to the blue wire of the controller.
CAUTION: Do not connect AC power directly to the controller!

Operation:

1. Operation via the touch control handle:
Attention: The handle is operated by touch control. The touch sensitivity can be automatically calibrated when powered on for the first time. Hands are prohibited from touching the handle when powered on to prevent interference with the sensitivity calibration and affect the operating sensitivity.

1) Press and hold the ▲ button of the control handle, two linear actuators extend outward at the same time; Release the button, two linear actuators stop at the same time.
2) Press and hold the ▼ button of the control handle, two linear actuators retract inward at the same time; Release the button, two linear actuators stop at the same time.
3) Press any of the button 1, 2, or 3 on the control handle, two linear actuators will automatically move to the position memorized by that button and then automatically stop.
Note: You will need to first memorize three positions into these three buttons.
4) The LED display on the control handle will display the stroke position data in real time. For example, the number 03.5 means that the linear actuators have reached the stroke position of 35MM.

2. Operation via the remote control: (The remote control of the synchronous controller has two control modes, interlocking mode and momentary mode, please select a control mode you need when ordering.)
2.1 Momentary Control Mode:

1) Press and hold the button ▲ of the remote control, two linear actuators extend out at the same time; Release the button, two linear actuators stop at the same time.
2) Press and hold the button ▼ of the remote control, two linear actuators retract inward at the same time; Release the button, two linear actuators stop at the same time.

2.2 Interlocking Control Mode:
1) Press the button ▲ of the remote control, two linear actuators extend out at the same time, they will reach the maximum stroke at the same time and stop automatically. During operation, you can also press the button ▲ again to stop two linear actuators at the same time.
2) Press the button ▼ of the remote control, two linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically. During operation, you can also press the button ▼ again to stop two linear actuators at the same time.

Two selectable external control functions:
The external control terminals offer a choice of two functions: manual switch function or limit switch function. When you choose the manual switch function, you can connect one external manual switch (such as model 0040025) to operate the linear actuators. When you choose the limit switch function, you can connect two external limit switches (such as model 0010010) to automatically stop the linear actuators.

1. Manual switch function:
When you choose the manual switch function, you can connect one external manual switch (such as model 0040025) to this controller and then operate the linear actuators through it.
1) The manual switch has an UP button and a DOWN button, and each button has two normally open terminals 3 and 4.
2) Connect a four-conductor cable to the controller's manual switch port C1, and this cable has four wires: red, yellow, orange, and black wire.
3) Connect terminal 3 of two buttons to the orange wire, connect terminal 4 of the UP button to the red wire, and connect terminal 4 of the DOWN button to the yellow wire.

The operation:
1) Press the UP button of the manual switch, two linear actuators extend outward at the same time. During operation, you can also press the button UP again to stop two linear actuators at the same time.
2) Press the DOWN button of the manual switch, two linear actuators retract inward at the same time. During operation, you can also press the button DOWN again to stop two linear actuators at the same time.

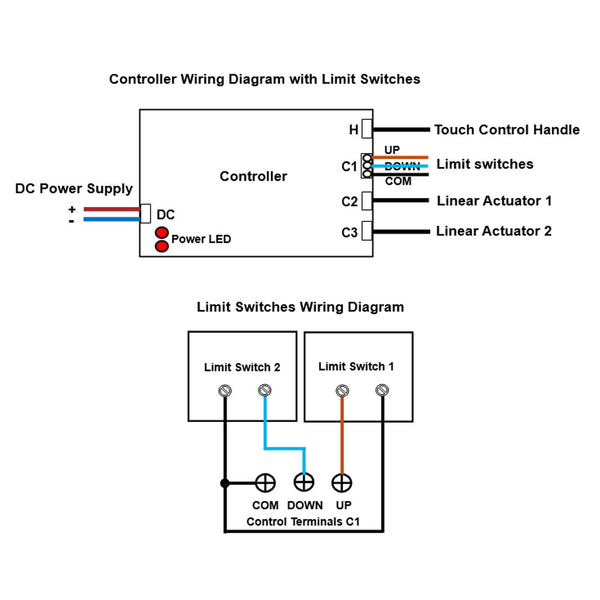

2. Limit switch function:
When you choose the limit switch function, you can connect two external limit switches with normally open contact (such as model 0010010) to this controller and then automatically stop the linear actuators through it.
1) You can connect two limit switches, and each limit switch has two normally open terminals.
2) Connect a three-conductor cable to the controller's limit switch port C1, and this cable has three wires: UP, Down, and COM wire.
3) Connect two normally open terminals of a limit switch to terminals <UP> and <COM>, connect two normally open terminals of another limit switch to terminals <DOWN> and <COM>.

The operation:
1) When two linear actuators extend outward, if a limit switch is triggered, it will connect two terminals <UP> and <COM>, then two linear actuators will stop automatically.
2) When two linear actuators inward retract, if another limit switch is triggered, it will connect two terminals <DOWN> and <COM>, then two linear actuators will stop automatically.

How to memorize three stroke positions:
1) The controller can memorize total three stroke positions, and each button memorizes one stroke position.
2) First operate two linear actuators to the first suitable stroke position that you need to store, then press and hold the button 1 of the control handle for about 3 seconds, the stroke value on the LED display will flash. This means that the current stroke position is already stored in button 1.
3) You can continue to store the other two stroke positions into the button 2 and 3 by following the operation above.

Reset Function:
When the LED display on the control handle shows the fault code, you need to reset the system as follows.
Reset operation: Press and hold the <R> button of the control handle until all linear actuators are reset to the bottom, and the LED display on the control handle shows "00.1", then release the <R> button.

How to pair the transmitter to the controller:
Notice: We have paired the transmitter to the controller before leaving the factory. If you want to pair more transmitters, please follow the following steps.
1) You need to open the controller case, then you can see a small RF receiver module and there is a small learning button on the module.
2) Press the learning button on the receiver module for 1-2 seconds, signal LED on the receiver module turns on, this indicates that the controller enters the learning status.
3) Press any one button on the transmitter, if signal LED goes off, this indicates that the pairing is successful.
4) The controller can learn several transmitters with different codes.

How to delete all transmitters codes stored in the controller:
We have paired the transmitter to the controller, if you don’t want the controller to work with the transmitter, you can delete all transmitters codes stored in the controller.
Operation: Quickly and continuously press the learning button on the receiver module 8 times, then release the learning button, the signal LED on the receiver module flashes 8 times and then goes off, this indicates that all stored codes have been deleted successfully.
