Package Include:

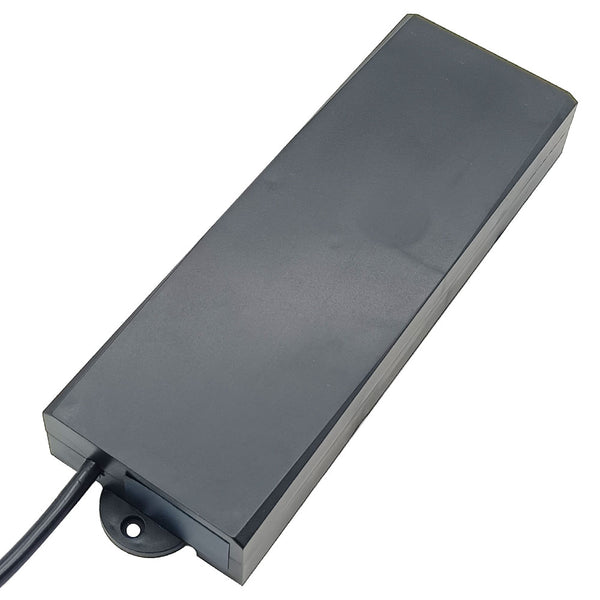

1 x Synchronous Controller (One-Control-Two, For 2 Linear Actuators F with Hall effect sensors)
1 x Control Handle
1 x Remote Control
1 x User manual
Note: Two linear actuators F are not included, please order them separately. The synchronous controller has two control modes, interlocking mode and momentary mode, please select a control mode you need when ordering.
Introduction:
If you want to use multiple linear actuators to raise and lower an equipment, for example two, three or four electric actuators. Since the high-speed DC motors in electric actuators cannot run at exactly the same speed, so the movement speed of the electric actuator will also be different. When multiple electric actuators work at the same time, their actual speeds cannot be exactly the same. In this case, we can use a synchronous controller to operate multiple linear actuators to rise or fall synchronously. They work completely in sync without any difference.
Working principle:
If you want to use a synchronization controller to operate 2, 3 or 4 linear actuators fully synchronously, you will need to purchase built-in Hall effect sensors for each linear actuator. And when you purchased Hall effect sensors along with linear actuators, we will install Hall effect sensors in the linear actuators during production for you.
When 2, 3 or 4 linear actuators are running together, Hall sensor will send Hall signals to the synchronization controller, and the controller will adjust the running speed of each linear actuator, so that all linear actuators run at the exact same speed.
Feature:
It can operate two electric linear actuators F to run completely synchronously.
Wired control via a control handle.
Wireless control via a remote.

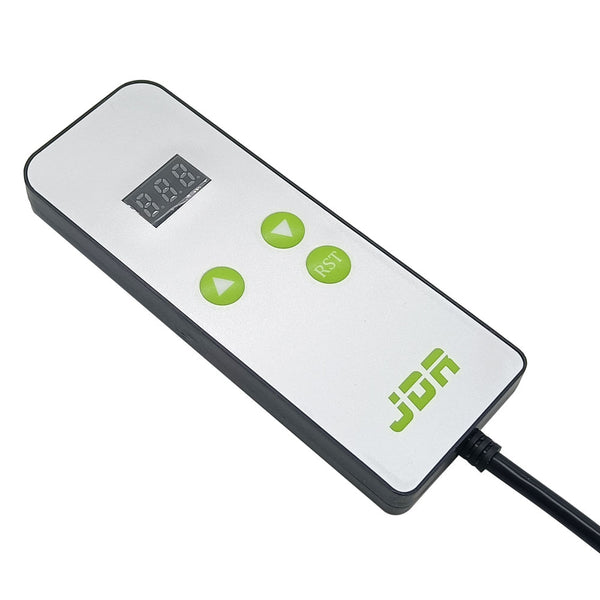

The LED display on the control handle will display the stroke position in real time.
Three function buttons: ▲, ▼ and RST.
Parameters:
Working Voltage: 12±1VDC (suitable for 12V linear actuator), or 24±2VDC (suitable for 24V linear actuator)
Working Frequency: 433.92 MHz
Working Distance: 50m / 150ft (theoretically)
Two selectable control modes: Interlocking mode or Momentary mode, please select a control mode you need when ordering.
Operating Temperature: -20°C ~ +70°C
Case size: 265 x 94 x 40 mm (10.5 x 3.7 x 1.6 inches)
Connection:
1) Connect the positive pole of DC power supply to the red wire of the controller and connect the negative pole of DC power supply to the black wire of the controller.
2) Plug two linear actuators to the controller.
3) Plug the control handle to the controller.
Operation in different control modes: (The synchronous controller has two control modes, please select a control mode you need when ordering.)
1. Momentary Control Mode:
1.1 Operation via the control handle:
1) Press and hold the ▲ button of the control handle, two linear actuators extend outward at the same time; Release the button, two linear actuators stop.
2) Press and hold the ▼ button of the control handle, two linear actuators retract inward at the same time; Release the button, two linear actuators stop.
3) You can also briefly press the <RST> button, two linear actuators will retract inwards to their original positions simultaneously.
4) The LED display on the control handle will display the stroke position in real time. For example, if the number 030 means that the linear actuators have reached the stroke position of 30CM.
1.2 Operation via the remote control:
1) Press and hold the ▲ button of the remote control, two linear actuators extend outward at the same time; Release the button, two linear actuators stop.
2) Press and hold the ▼ button of the remote control, two linear actuators retract inward at the same time; Release the button, two linear actuators stop.
2. Interlocking control Mode:
2.1 Operation via the control handle:
1) Press the button ▲ of the control handle, two linear actuators extend outward at the same time, they will reach the maximum stroke at the same time and stop automatically. During operation, you can also press any button to stop two actuators at the same time.
2) Press the button ▼ of the control handle, two linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically. During operation, you can also press any button to stop two actuators at the same time.
3) You can also briefly press the <RST> button, two linear actuators will retract inwards to their original positions simultaneously.
4) The LED display on the control handle will display the stroke position in real time. For example, if the number 030 means that the linear actuators have reached the stroke position of 30CM.
2.2 Operation via the remote control:
1) Press the button ▲ of the remote control, two linear actuators extend out at the same time, they will reach the maximum stroke at the same time and stop automatically. During operation, you can also press any button to stop two actuators at the same time.
2) Press the button ▼ of the remote control, two linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically. During operation, you can also press any button to stop two actuators at the same time.
Reset Function:
When the LED display on the control handle shows the fault code "RST" or "E05", you need to reset the system as follows.
Reset operation: Press and hold the ▼ button of the control handle for 5-10 seconds until all linear actuators are reset to the bottom, and the LED display on the control handle shows "000", then release the ▼ button.
Fault Display Code Descriptions:
The control handle is equipped with an LED display screen.
LED screen displays "RST": Abnormal state, reset operation required.
LED screen displays "E01": Linear actuator 1 overload, check if the load is too large.
LED screen displays "E02": Linear actuator 2 overload, check if the load is too large.
LED screen displays "E05": Two linear actuators are not synchronized, and you need to perform a reset operation.
LED screen displays "E06": Input power under-voltage, check if the power supply voltage or power matches the linear actuator, replace with a suitable power supply.
LED screen displays “E11”: Linear actuator 1 HALL signal abnormal, check if the connection cable is in poor contact, replace the linear actuator or connection cable.
LED screen displays “E12”: Linear actuator 2 HALL signal abnormal, check if the connection cable is in poor contact, replace the linear actuator or connection cable.
