Package Include:

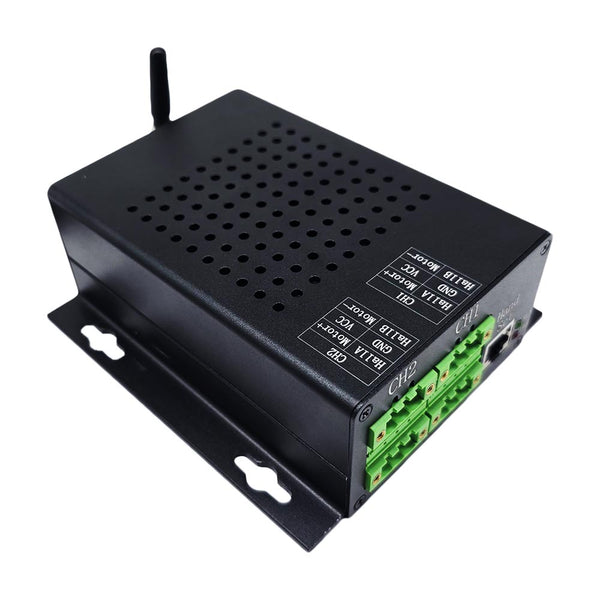

1 x Synchronous Controller (One-Control-Two, For 2 Linear Actuator C with Hall effect sensors)

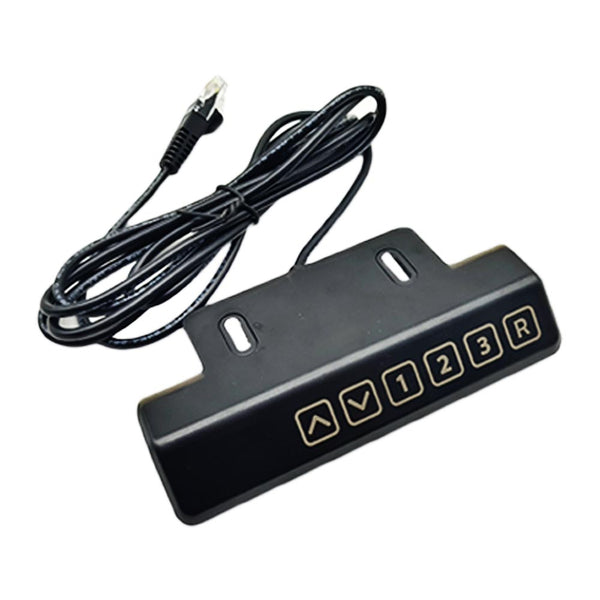

1 x Control Handle

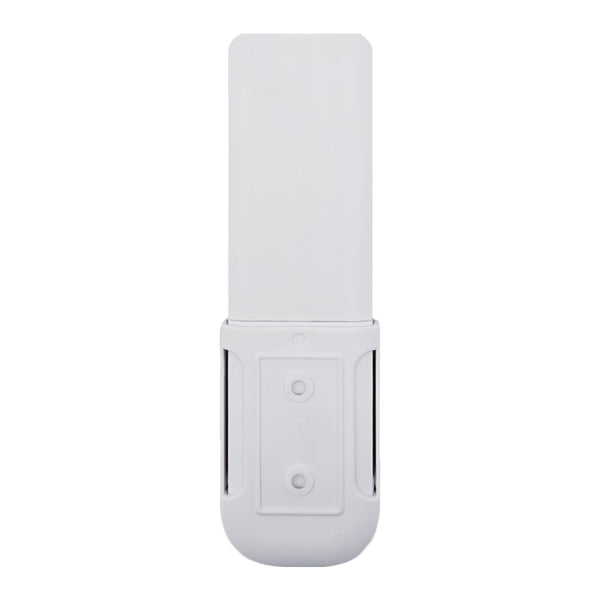

1 x Remote Control (CP-3L)
1 x User manual
Note: Two linear actuators C are not included, please order them separately. The synchronous controller has two control modes, interlocking mode and momentary mode, please select a control mode you need when ordering.
Introduction:
If you want to use multiple linear actuators to raise and lower an equipment, for example two, three or four electric actuators. Since the high-speed DC motors in electric actuators cannot run at exactly the same speed, so the movement speed of the electric actuator will also be different. When multiple electric actuators work at the same time, their actual speeds cannot be exactly the same. In this case, we can use a synchronous controller to operate multiple linear actuators to rise or fall synchronously. They work completely in sync without any difference.
Working principle:
If you want to use a synchronization controller to operate 2, 3 or 4 linear actuators fully synchronously, you will need to purchase built-in Hall effect sensors for each linear actuator. And when you purchased Hall effect sensors along with linear actuators, we will install Hall effect sensors in the linear actuators during production for you.
When 2, 3 or 4 linear actuators are running together, Hall sensor will send Hall signals to the synchronization controller, and the controller will adjust the running speed of each linear actuator, so that all linear actuators run at the exact same speed.
Feature:
It can operate two electric linear actuators C to run completely synchronously.
Wired control via a control handle.
Wireless control via a remote.
Three function buttons: Up, Down and Stop.
With reset button.
Parameters:
Working Voltage: 10~30 VDC, suitable for 12V or 24V linear actuator
Working Frequency: 433.92 MHz
Working Distance: 100m / 300ft (theoretically)
Rated current: 30A
Two selectable control modes: Interlocking mode or Momentary mode, please select a control mode you need when ordering.
Operating Temperature: -20°C ~ +70°C

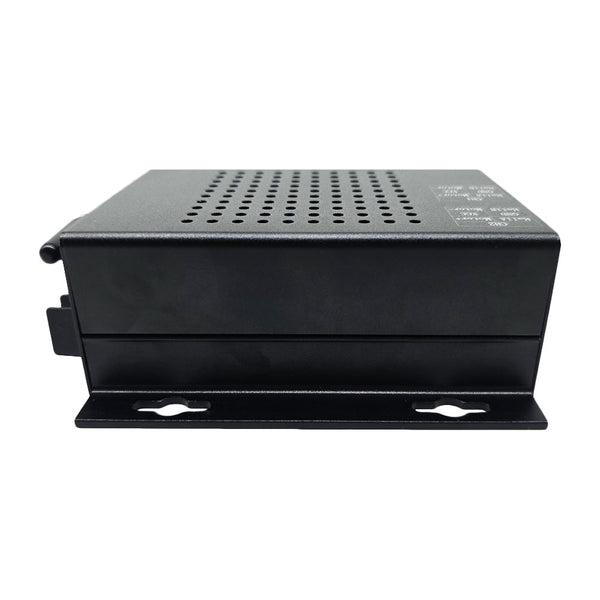

Case size: 240 x 170 x 56 mm (9.5 x 6.7 x 2.2 inches)
Connection:

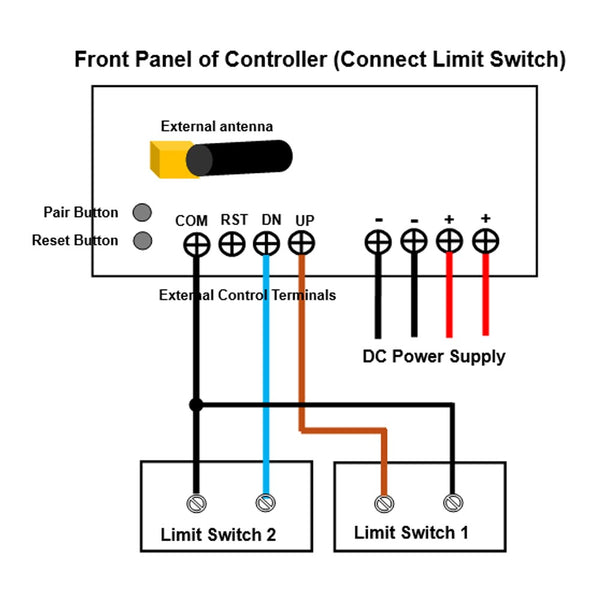

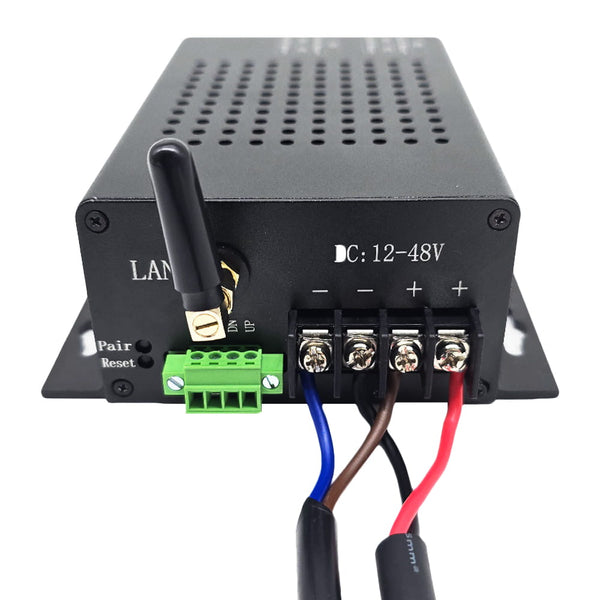

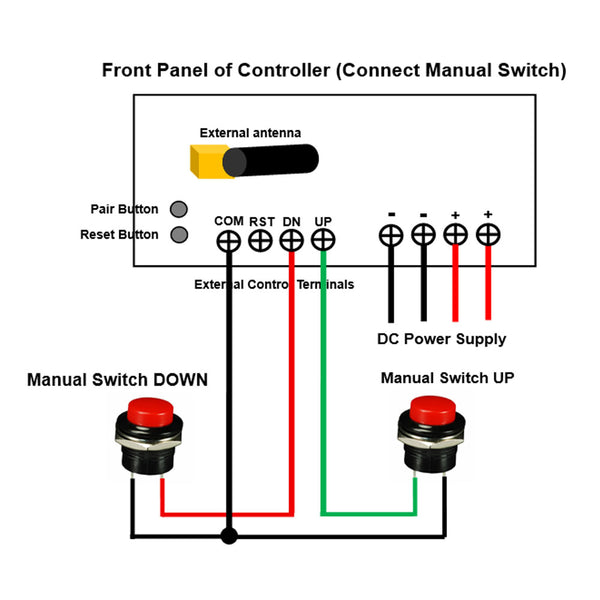

1) Connect the positive pole of DC power supply to terminal <+> of the controller, and connect the negative pole of DC power supply to terminal <–> of the controller.

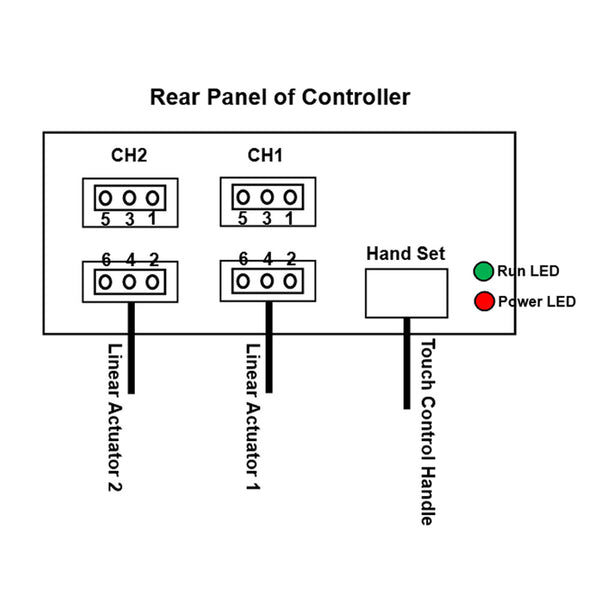

2) Connect red power cable and black power cable of two linear actuators to linear actuator terminals of the controller.
Caution: When operating the linear actuators by the control handle or remote, if the working direction of the linear actuators do not correspond to the direction of the button, please exchange the connection terminals of two power cables of the linear actuators.

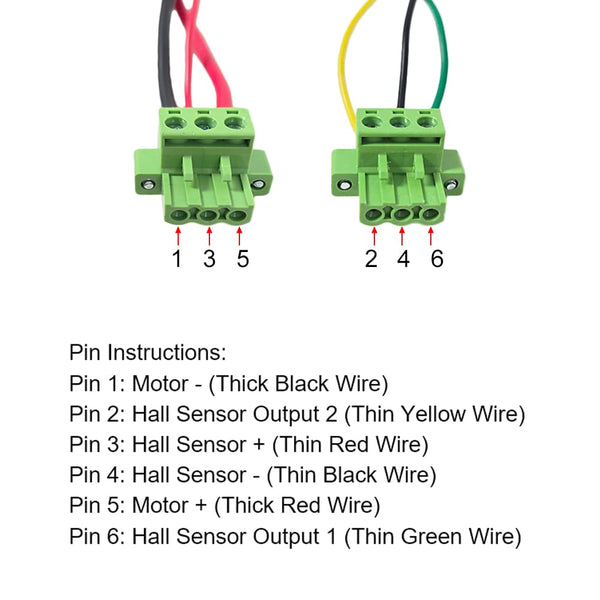

3) Connect four hall signal cables of two linear actuators to hall signal terminals of the controller.
Operation in different control modes: (The synchronous controller has two control modes, interlocking mode and momentary mode, please select a control mode you need when ordering.)
1. Interlocking control Mode:
1.1 Operation via the control handle:
1) Press the UP button of the control handle, two linear actuators extend outward at the same time, they will reach the maximum stroke at the same time and stop automatically.
2) Press the DOWN button of the control handle, two linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically.
3) During operation, you can also press the STOP button to stop two linear actuators at the same time.
1.2 Operation via the remote control:
1) Press the button ▲ of the remote control, two linear actuators extend out at the same time, they will reach the maximum stroke at the same time and stop automatically.
2) Press the button ▼ of the remote control, two linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically.
3) During operation, you can also press the ■ button to stop two linear actuators at the same time.
2. Momentary Control Mode:
2.1 Operation via the control handle:
1) Press and hold the UP button of the control handle, two linear actuators extend outward at the same time; Release the button, two linear actuators stop at the same time.
2) Press and hold the DOWN button of the control handle, two linear actuators retract inward at the same time; Release the button, two linear actuators stop at the same time.
2.2 Operation via the remote control:
1) Press and hold the button ▲ of the remote control, two linear actuators extend out at the same time; Release the button, two linear actuators stop at the same time.
2) Press and hold the button ▼ of the remote control, two linear actuators retract inward at the same time; Release the button, two linear actuators stop at the same time.
Reset Function:
When this system has been running for a long time, if you find that they are no longer fully synchronized, you can use the reset button to reset the controller.
Operation: Press and hold the reset button, then press the UP button or the DOWN button of the control handle, let the linear actuator run from the beginning position to the end position, finally release the reset button.
