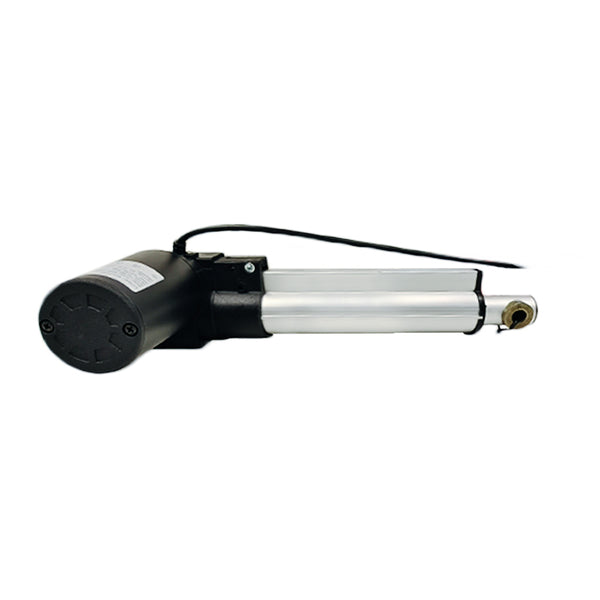

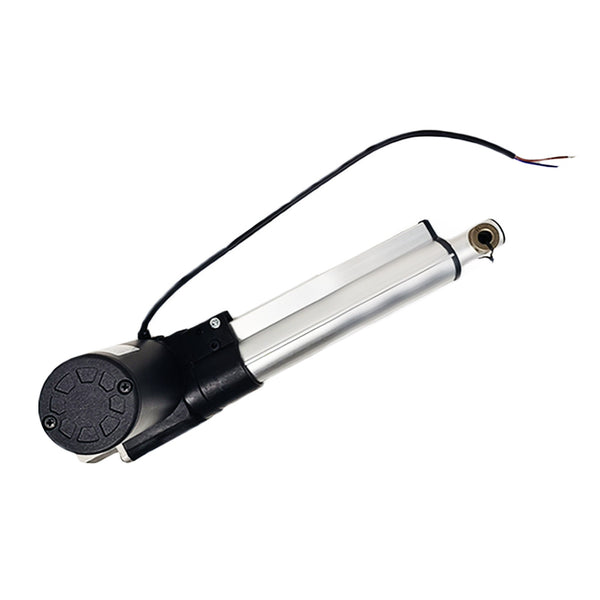

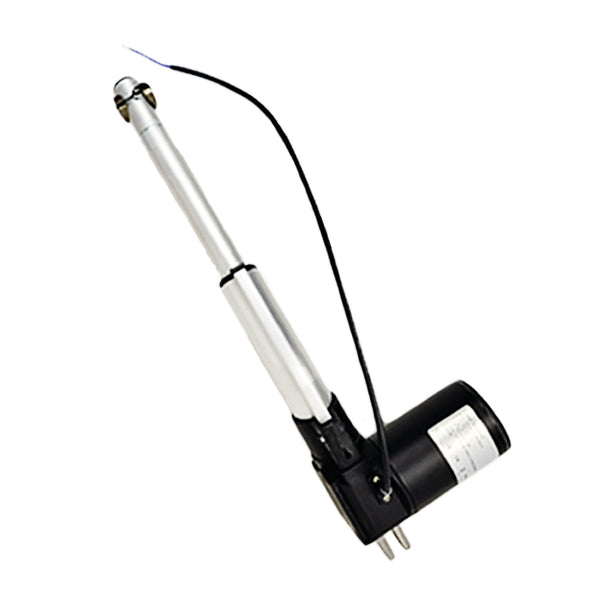

6000N Thrust 1.2 Inch 30MM Stroke Industrial Linear Actuator Work With DC 12V 24V (Model 0041530)

Product Operation Demonstration Video:

Pull Force Test                                                                                   Thrust Force Test

Working Current Measurement at Different Thrusts                      Linear Actuator Limit Switch Wiring

Synchronize 2 Linear Actuators                                                       Synchronize 4 Linear Actuators

Remote Control Linear Actuator                                                       Linear Actuator Manual Override

Use A Linear Actuator to Open Door                                                Use Two Linear Actuator to Open Door

Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

Feature:
High-quality products and high-quality services
High strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 6000N / 600 Kgs / 1300 lbs
Multiple speed options, from 3.5 mm/second to 100 mm/second
Multiple stroke options, from 10 mm to 2000 mm
We can customize any stroke length from 10mm to 2000mm, such as 770mm, 1250mm, 1850mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Built-in limit switch signal output is optional.
Built-in Hall sensor is optional, so you can use the synchronous controller to operate 2, 3 or 4 linear actuators fully synchronously.
With auto-locking capability to hold load position after stopping, and no power supply is required.
Maintenance-free

Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power supply available, we recommend you choose the linear actuator with 24V working voltage.
Stroke range: 1.2 inches or 30 mm
Optional speed: 3.5±0.5mm/s, 5±1mm/s, 7±1.5mm/s, 9±2mm/s, 14±3mm/s, 18±4mm/s, 28±6mm/s, 38±8mm/s, 50±10mm/s, 100±20mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max Load capacity: 6000N / 600 Kgs / 1300 lbs at 3.5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 1~2A at 12V or 0.5~1A at 24V
Full load current: 6~12A at 12V or 3~6A at 24V
Please use a 12V/10A or 24V/5A power supply to power a linear actuator, or use a 12V/20A or 24V/10A power supply to power two linear actuators, or use a 12V/50A or 24V/25A power supply to power three or four linear actuators.
Shaft diameter: 24mm
The diameter of the mounting holes for the front and rear connectors:10mm [0.393in]
Housing Material: Aluminum Alloy
Stroke Rod Material: Aluminum Alloy
Gear Material: Polymer Plastic
Motor Type: Brushed DC Motor

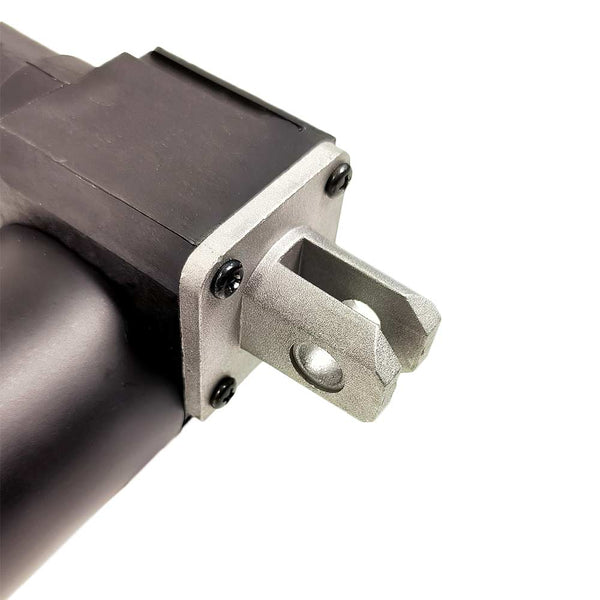

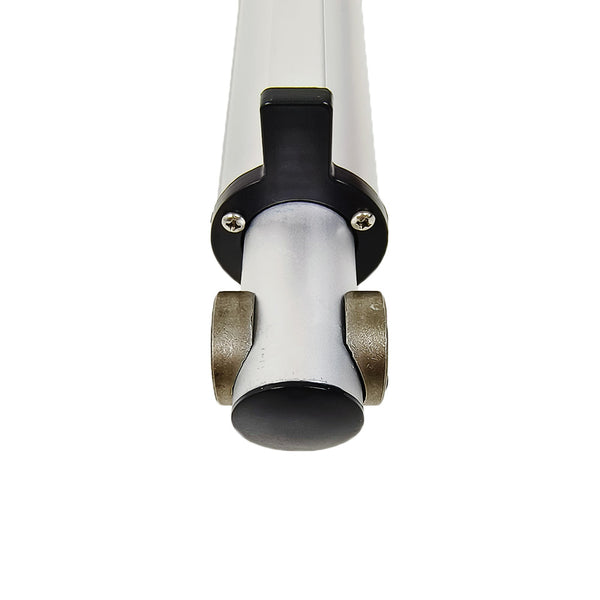

The front connector style can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization.
The orientation of the front and rear connector is default, we can rotate it 90 degrees during the production according to the customer's needs.
Duty Cycle: 10%, max 3mins continuous use
Service life: approx. 25,000 cycles
Power cable: two-core wire for normal linear actuators; six-core wire for linear actuators with built-in Hall sensors; four-core, five-core or six-core wire for linear actuators with built-in limit switch signal outputs.
Cable length of the normal linear actuator: 500±10%mm [20 in], the length can also be customized according to your specific needs.
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 42dB~46dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP54, not suitable for outdoor use.

Stroke and Length (Model 0041530):
Stroke: 30MM.

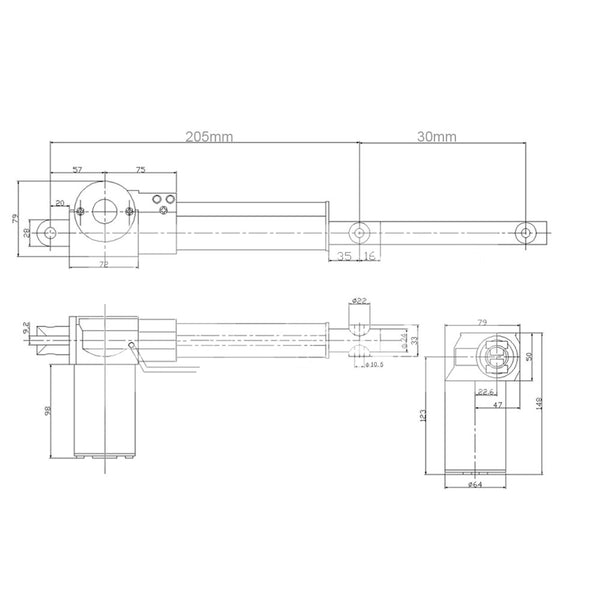

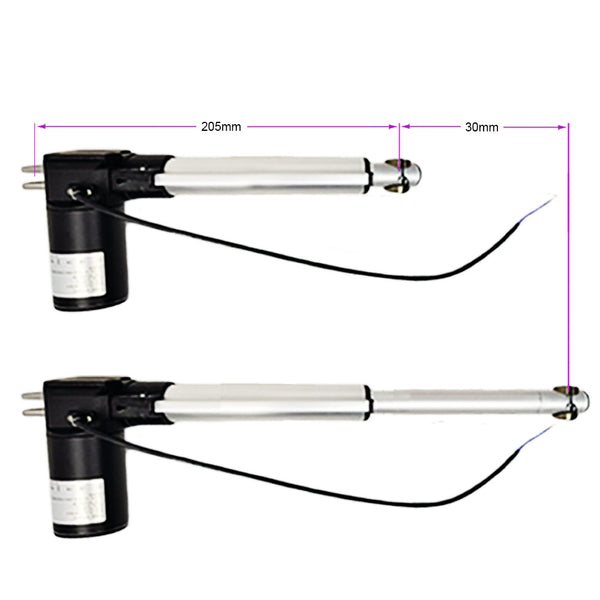

Rretraction Length: When the linear actuator is fully retracted, the center distance between the two mounting holes is 205MM.
Extension Length: When the linear actuator is fully extended, the center distance between the two mounting holes is 235MM.
The linear actuator has two built-in limit switches, When the linear actuator is fully retracted or fully extended, it will stop automatically.
We can adjust the position of the built-in limit switches during production to meet customer-specified stroke and retraction lengths. For example, specify the stroke length of 20MM and the retraction length of 230MM.
Note: The specified retraction length must be greater than the original length, and the specified stroke must be less than the original stroke.

Fixed Bracket:
1. This linear actuator does not contain fixed mounting brackets, please click here to purchase.
2. Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.

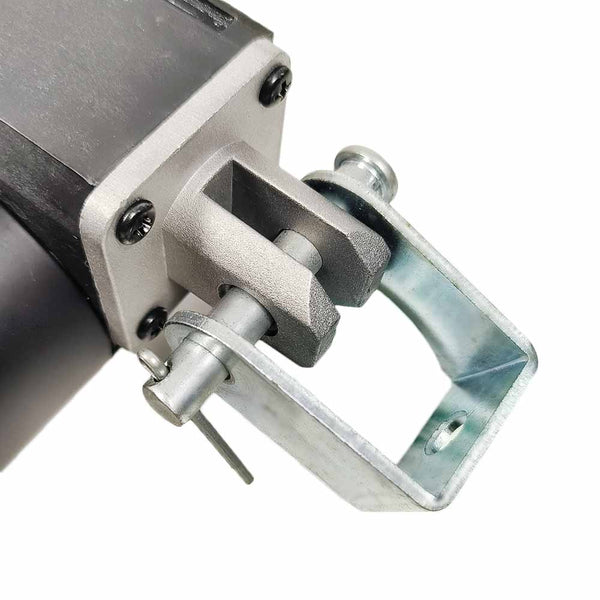

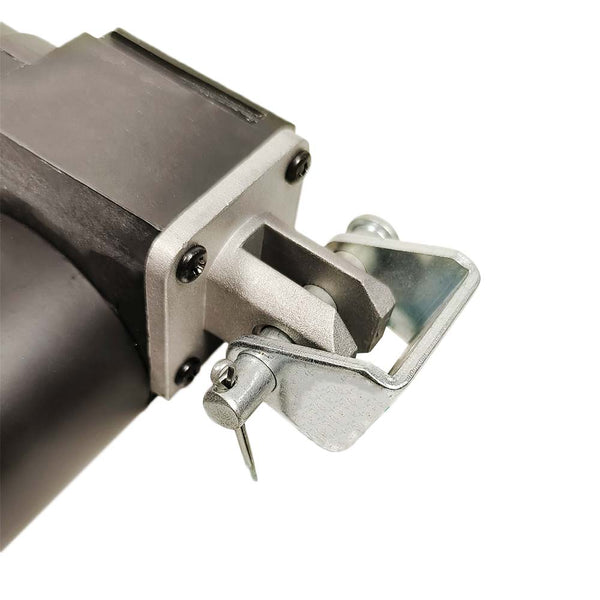

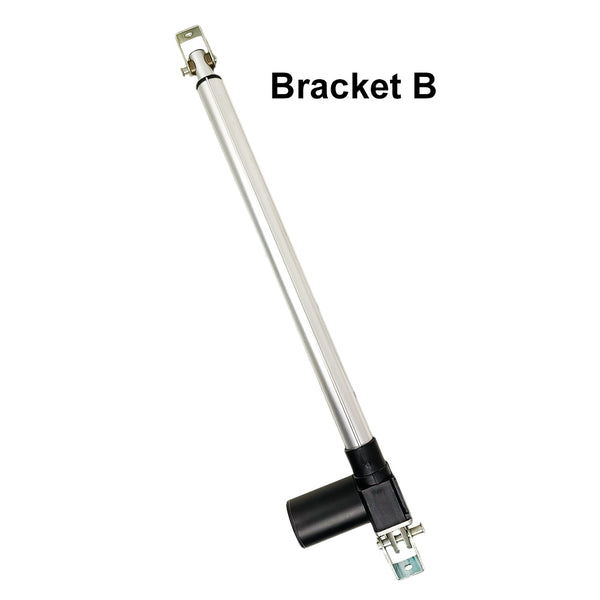

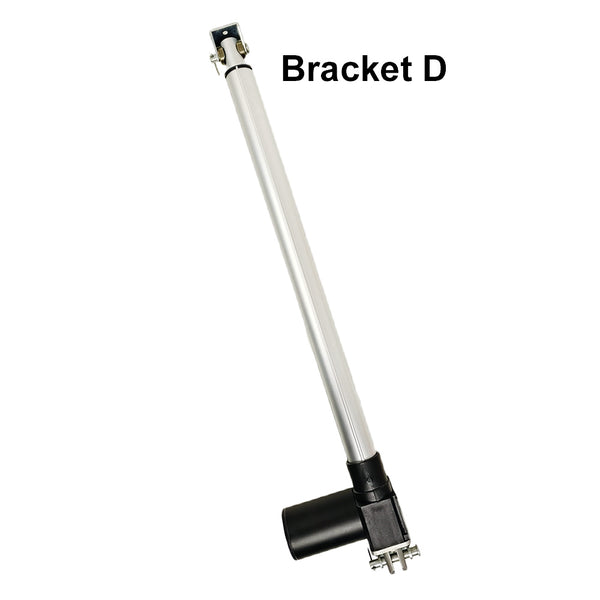

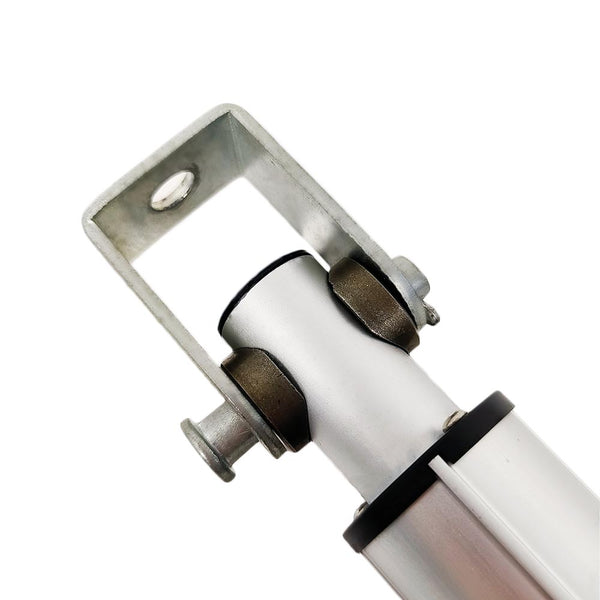

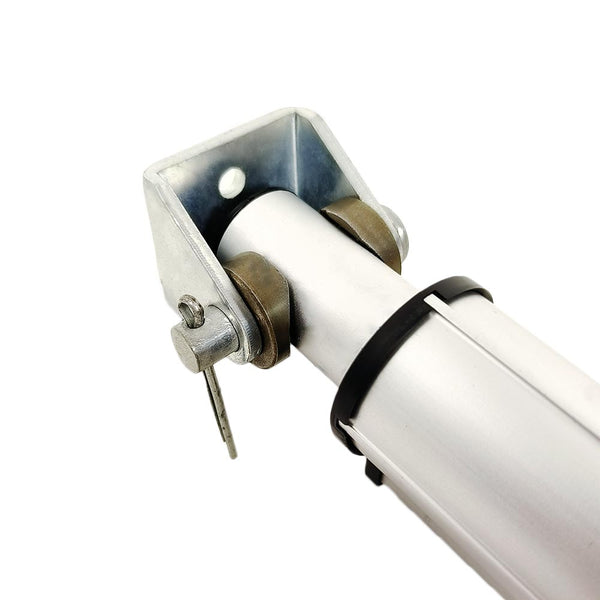

3. Compatible Mounting Brackets: Bracket B and Bracket D .
4. This linear actuator is also compatible with two flat mounting brackets: Head Fixed Mount Flat Bracket (Model 0043073) and Bottom Fixed Mount Flat Bracket (Model 0043074) .

Operation:
When the brown power wire is connected to the positive pole of the DC power supply and the blue power wire is connected to the negative pole of the DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.

Note:
1. If you want to control 2, 3 or 4 linear actuators fully synchronously, you need to purchase built-in Hall effect sensors for each linear actuator, and buy a synchronization controller, please click here to purchase.
2. If you need a power supply to power linear actuator, please click here to purchase.
3. If you want to use external limit switches to stop linear actuator at any position, please click here to purchase. How to connect limit switch? Please watch the connection video.
4. If you want to use a remote control switch to operate linear actuator wirelessly, please click here to purchase.

Different speeds and corresponding maximum thrust:
　

Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.

Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.

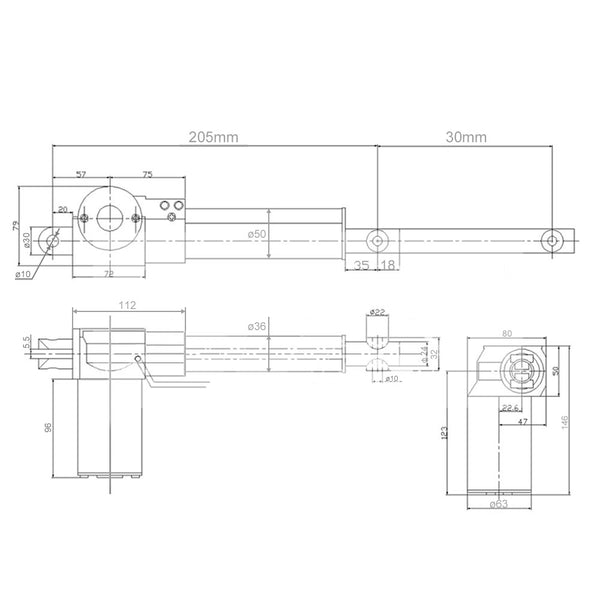

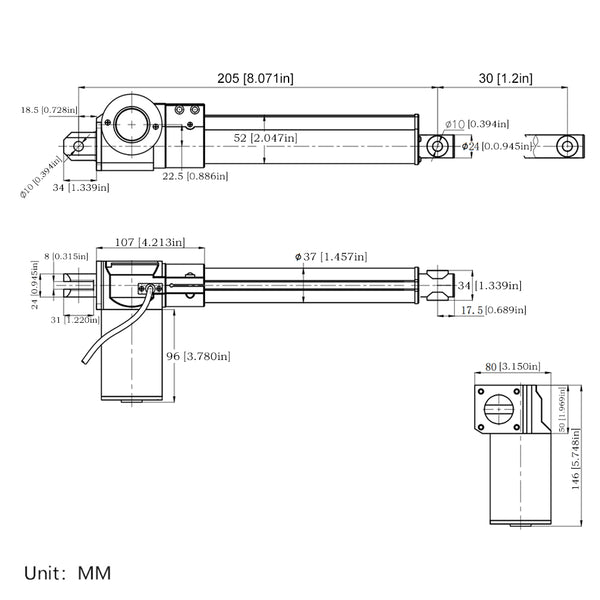

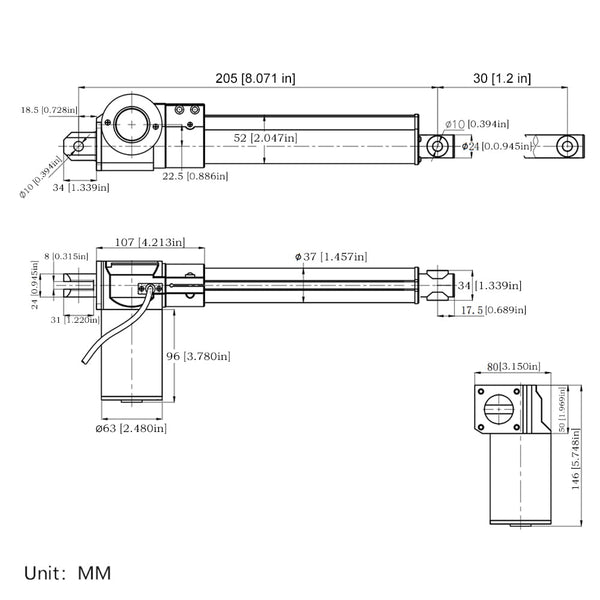

We can provide 3D CAD model files in STEP format for linear actuators. Please contact us by e-mail if you need them.
