Product parameters:
Operating voltage range: DC 3V ~ 36V
Maximum load current: 5A
Power female socket: DC5.5-2.1 (inner diameter 2.1mm, outer diameter 5.5mm), and compatible with DC5.5-2.5

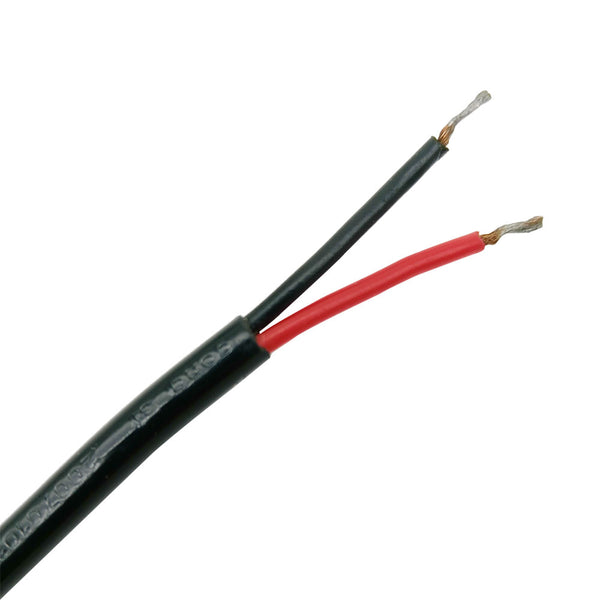

Output socket: Standard Four-hole Socket or Ordinary Two-core Wire
Control handle has two buttons, momentary work mode.
Suitable for DC 12V, 24V linear actuators, such as linear actuators A, A2, A3, A4, B, E, G, G2, H.
Connection:
1. Connect the power plug of DC power supply to the power socket of control handle.
2. Connect the linear actuator to the four-hole socket or two-core wire of control handle.
Operation of linear actuator:
1. Press and hold the “Extended” button, linear actuator extends outward; Release the button, linear actuator stops.
2. Press and hold the “Retracted” button, linear actuator retracts inward; Release the button, linear actuator stops.
