Package Include:
1 x Receiver: S1X-AC-ANT3
1 x Transmitter: CB-2N
1 x User manual
Application:
This type of wireless remote control device can use a normally open output device to wirelessly control another AC device, and it can be used for synchronous wireless control of various home, industrial or agricultural equipments, such as wireless control of the warning host and the warning horn, wireless control of the lights, wireless synchronization control of the equipments and so on.
Feature:
Wireless remote control, easy to install.

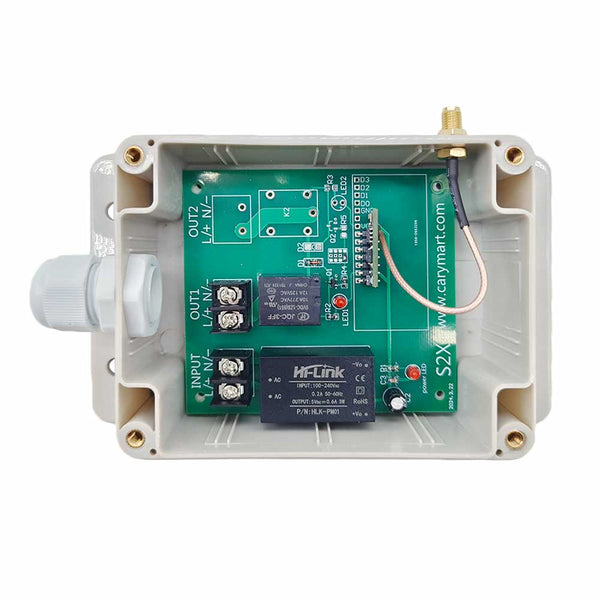

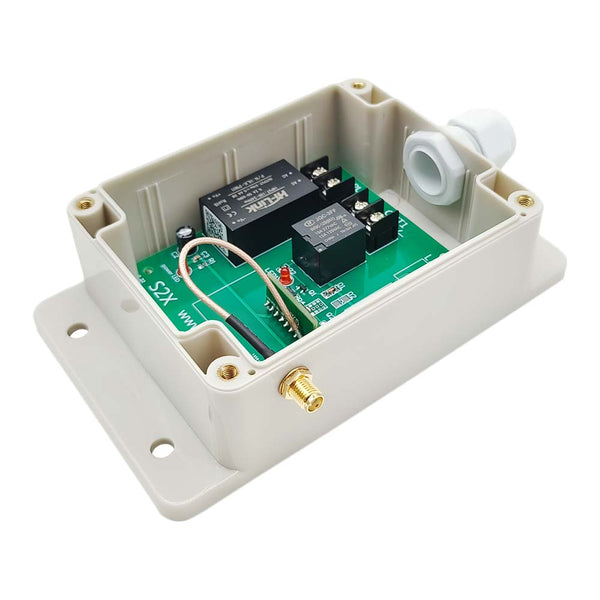

Waterproof: The receiver has waterproof case and waterproof connector; it can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:

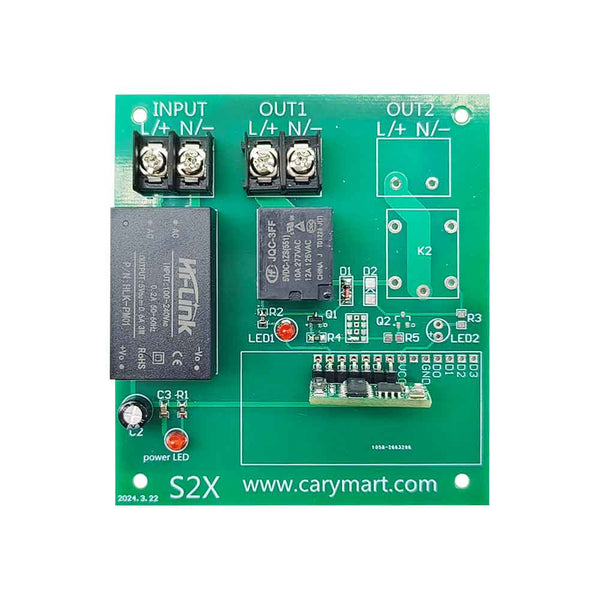

Model: S1X-AC-ANT3
Operating Voltage: 110~240V AC (110V/120V/220V/240V)
Working Frequency: 315 MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: 110~240V AC (110V/120V/220V/240V)
Maximum Load Current of Relay: 10A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
Working Modes: Interlocking
Operating Temperature: -20°C ~ +70°C
PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)
External Telescopic Antenna (ANT3) for the receiver:
Length of external telescopic antenna: 108mm / 445mm (stretch)
With SMA connector.
If you stretches the external telescopic antenna, it can have a further working range.
Transmitter Parameters:

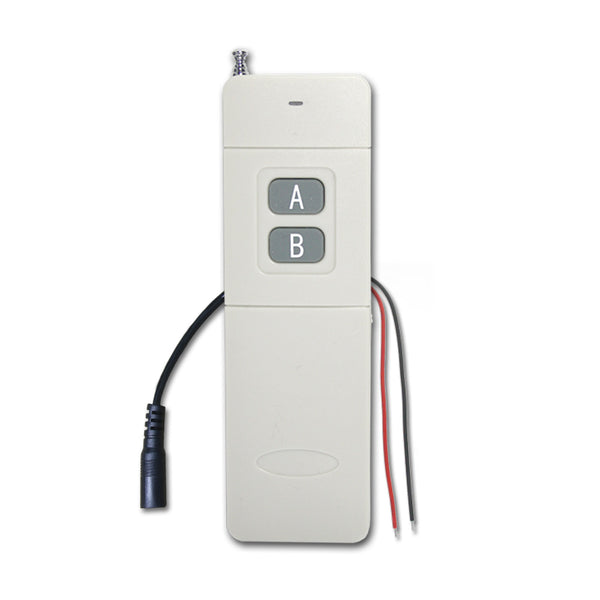

Model: 0021045 (CB-2N)
With Extended Control Wires
Triggering method: connection and disconnection of two wires.
Channel/Button: 2
Button Symbol: A, B

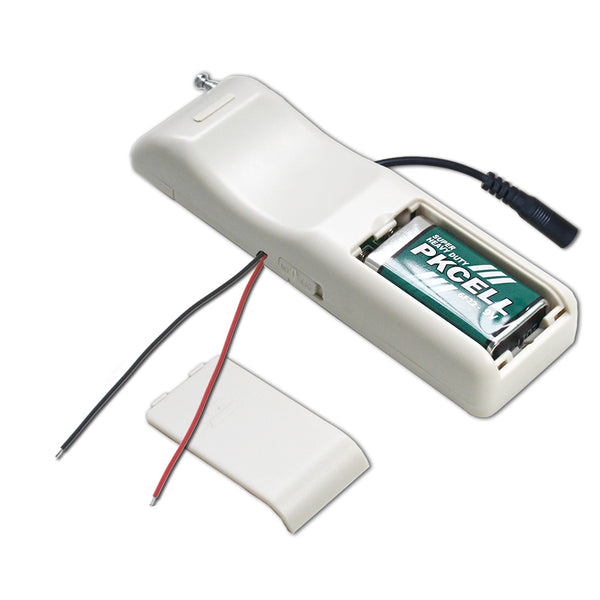

Operating Voltage: 9V (1 x 6F22 -9V battery, can be used for a week, if you want a longer working time, please use 9V Rechargeable Lithium Battery or 9V power adapter.)
Operating Current: 30mA
Operating Frequency: 315 MHz
Transmitting Distance: 1000m / 3000ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 135 x 42 x 25 mm
The working principle:
Transmitter CB-2N is a special remote control with normally open contact trigger. It has 2 input lines for connecting a variety of devices with normally open contact output, such as warning host, cable detectors, various sensors, manual switches, limit switches, Programmable Logic Controllers and so on. The transmitter can be combined with different types of receivers to form a wireless control system that can be used to wirelessly control another AC or DC device through a device that has a normally open contact output.
Working process:

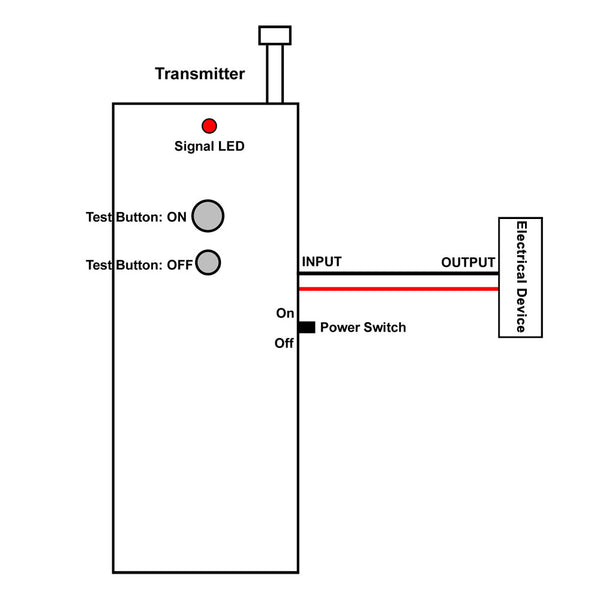

1. Connect a device A which with normally open output to the two input lines of the transmitter; connect the other device B to the receiver.
2. When the transmitter's two input lines are connected, it automatically emits an "ON" wireless signal, which is equivalent to the function of the button "ON" on the transmitter. When the receiver receives the wireless signal, it will activate its relay to turn on the connected device B.
3. When the transmitter's two input lines are disconnected, it automatically emits an "OFF" wireless signal, which is equivalent to the function of the button "OFF" on the transmitter. When the receiver receives the wireless signal, it will deactivate its relay to turn off the connected device B.
Working Range:
Super long range, with this transmitter (such as CB-2N) to form a complete set, the maximum working distance can reach 1000M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
Usage:
The receiver can be used to control 110~240VAC devices.
Wiring:

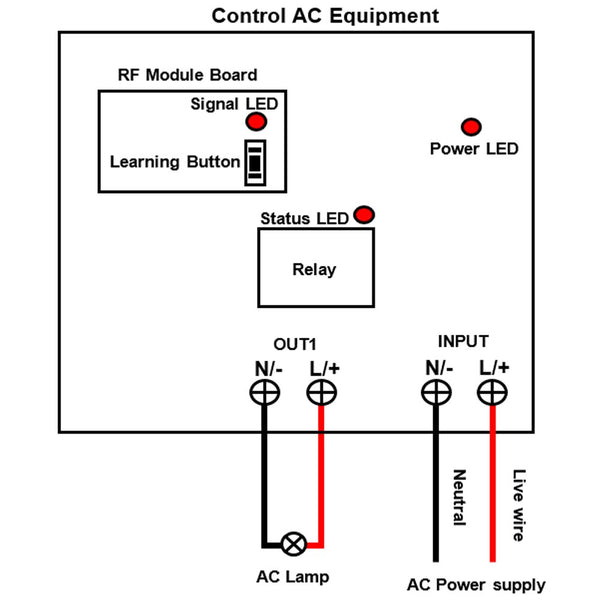

If you want to control an AC 120V or AC 220V lamp, do as following:

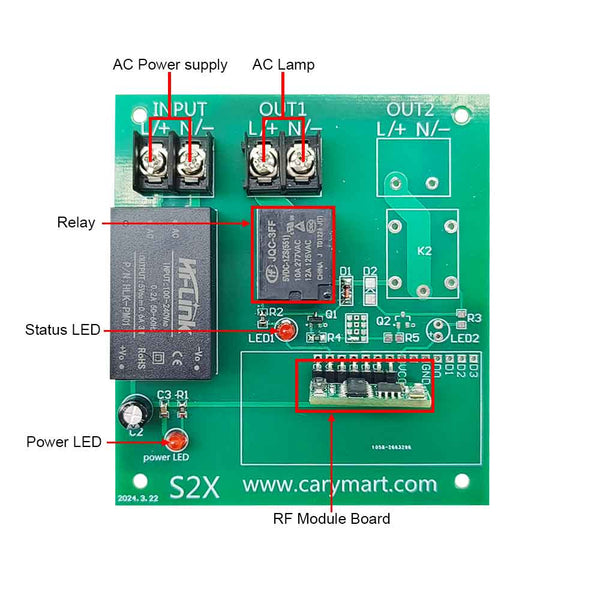

1) Connect the live wire of AC power supply to terminal <L/+> of INPUT, and connect the neutral wire of AC power supply to terminal <N/-> of INPUT.
2) Connect the live pole of AC lamp to terminal <L/+> of OUT1, and connect the neutral pole of AC lamp to terminal <N/-> of OUT1.
Operation:
1) Controlling the device by the buttons on the transmitter (CB-2N):
Press button A of the transmitter: Terminals <OUT1> of the receiver outputs DC power, the device is turned on.
Press button B of the transmitter: Terminals <OUT1> of the receiver stops outputting, the device is turned off.
2) Controlling the device by connecting red wire and black wire of the transmitter:
When connecting the red wire and black wire of this transmitter, the transmitter will be triggered and then it will send an RF signal of "ON" to trigger the receiver, the output terminals <OUT1> outputs DC power, and the device is turned on.
When disconnecting the red wire and black wire of this transmitter, the transmitter will be triggered and then it will send an RF signal of "OFF" to trigger the receiver, the output terminals <OUT1> stops outputting, and the device is turned off.
