Feature:
Wireless control, easy to install
Direct power output; control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Audible / visual indication
Use microcontroller model of EM78P156, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/ several transmitters can control one/ several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 433MHz

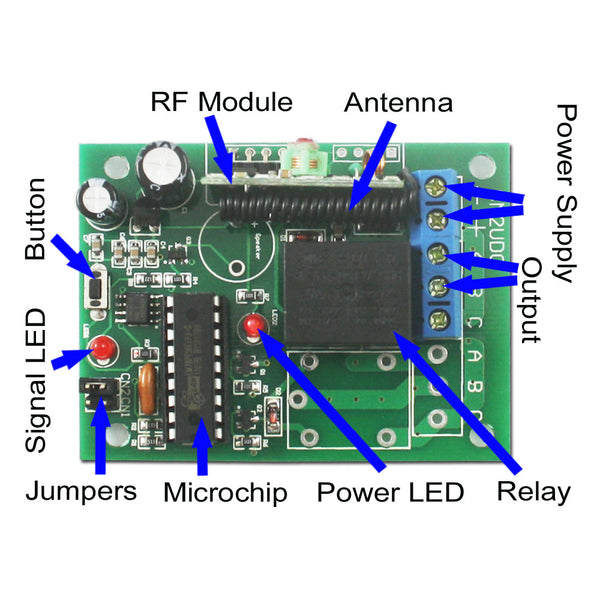

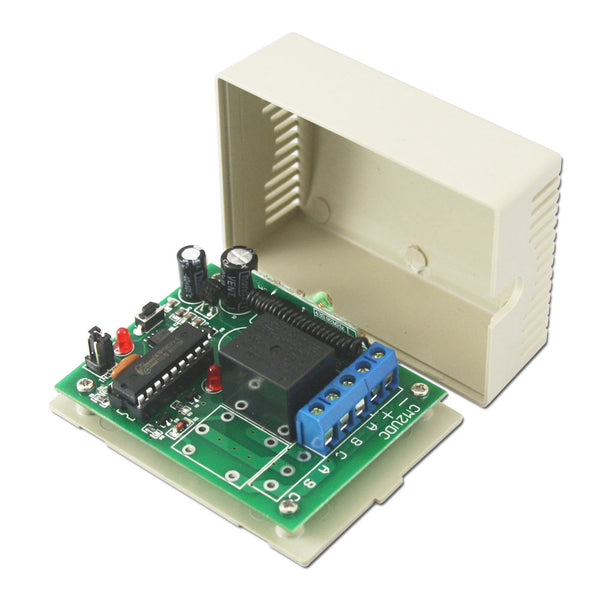

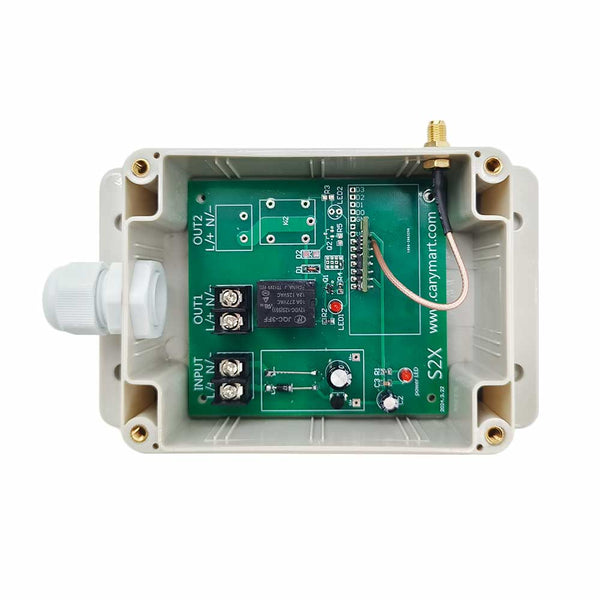

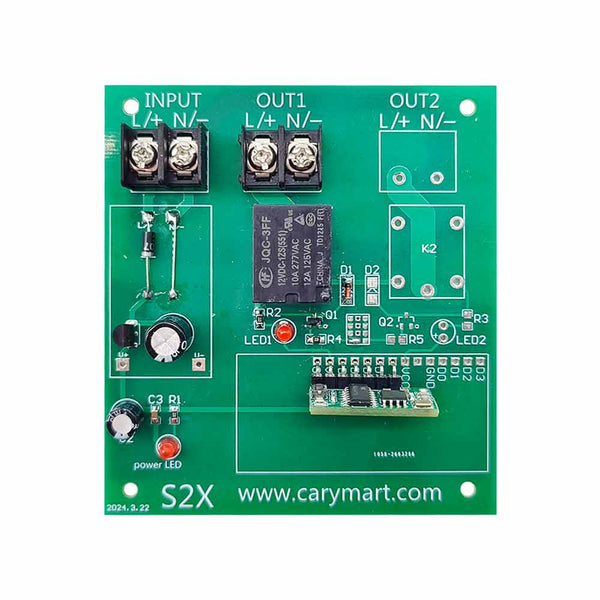

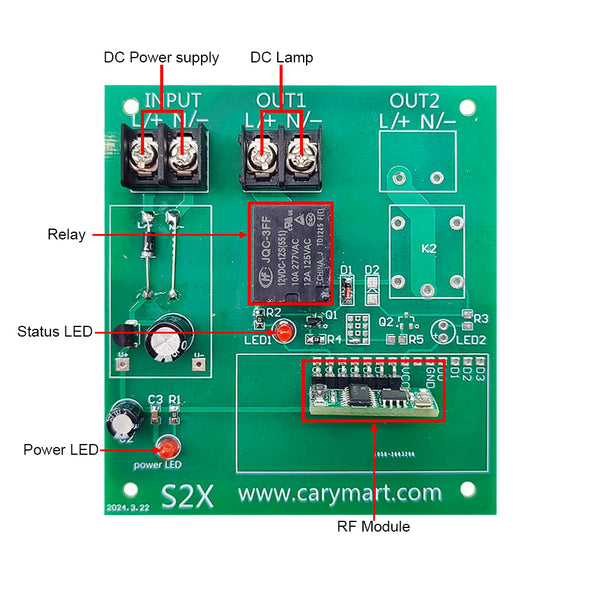

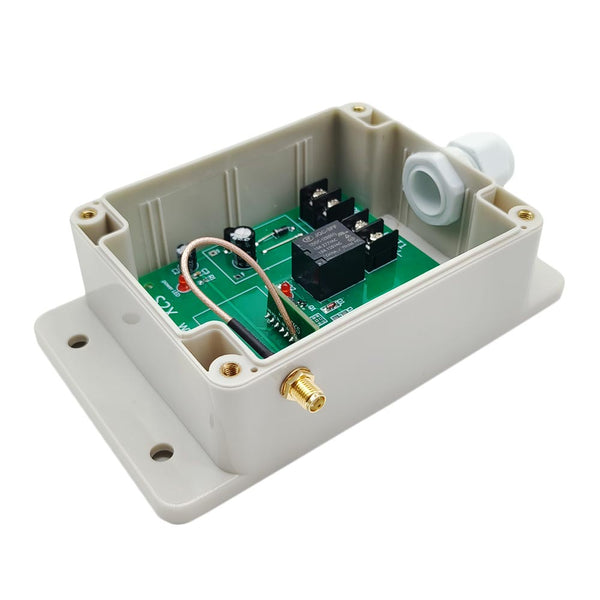

Receiver:
Model No.: S1XB-DC06 / S1XB-DC09 / S1XB-DC12 / S1XB-DC24
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Coding Type: Fixed code
Coding Setting: By learning
Power Supply (Operating Voltage): DC6V (S1XB-DC06), DC12V±1V (S1XB-DC12), DC9V±1V (S1XB-DC09), DC24V±1V (S1XB-DC24)
Output: DC6V (S1XB-DC06), DC12V (S1XB-DC12), DC9V (S1XB-DC09), DC24V (S1XB-DC24)
PCB Size: 67mm x 50mm x 18mm
Case Size: 75mm x 54mm x 27mm
Static Current: ≤6mA
Maximum Working Current: 10A

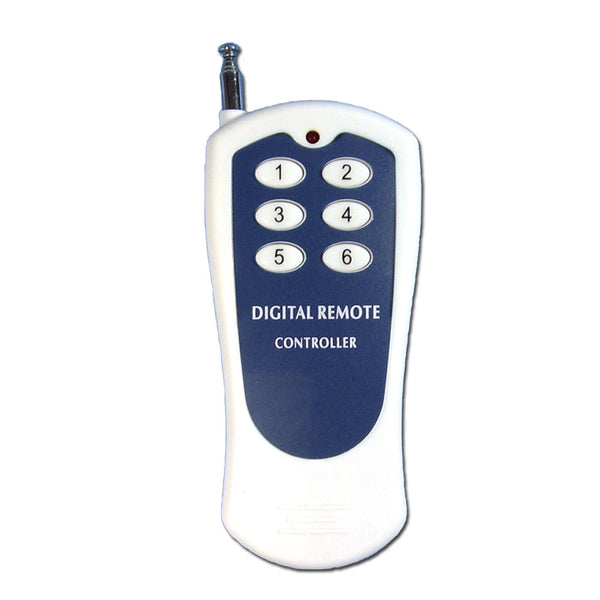

Transmitter:

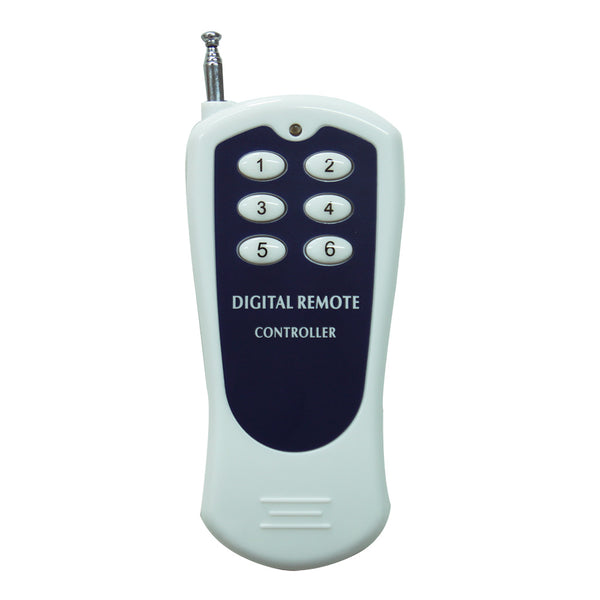

Model No.: CV-6
Channel: 6 CH
Remote Control Distance: 500m / 1500ft (theoretically)
Encode: Fixed code by Soldering
Unit size: 110mm x 50mm x 18mm
Power Supply: 1 x 23A -12V battery (Included, can be used for 12 months)

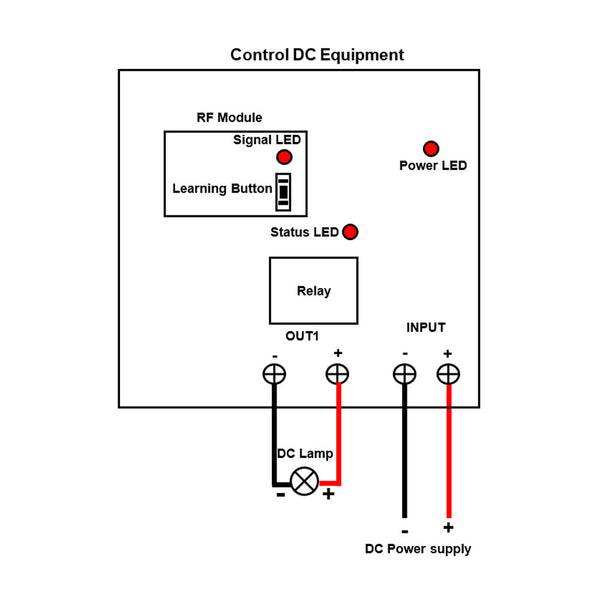

Usage:

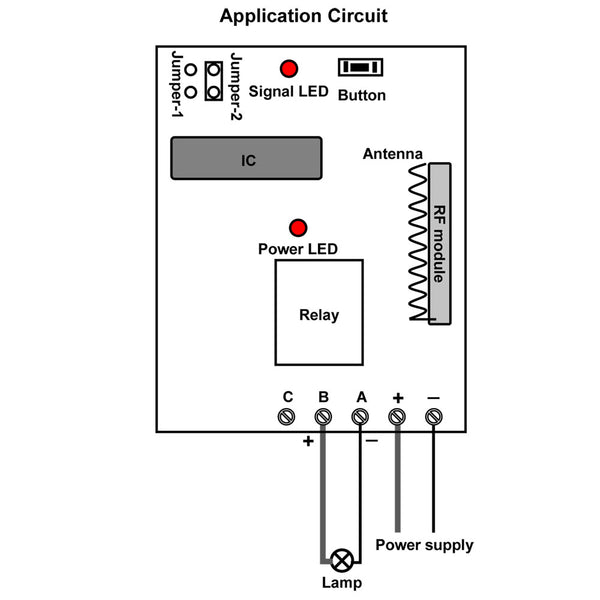

Setting different control modes (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following):
1) Setting control mode Self-locking: Only connect Jumper-2.
Press button 1: Turn on the relay, terminal A&B of receiver 1 outputs DC power.
Press button 1 again: Turn off the relay, terminal A&B of receiver 1 no output.
Press button 6: Turn on the relay, terminal A&B of receiver 6 outputs DC power.
Press button 6 again: Turn off the relay, terminal A&B of receiver 6 no output.
2) Setting control mode Momentary: Only connect Jumper-1.
Press and hold button 1: Turn on the relay, terminal A&B of receiver 1 outputs DC power.
Release button 1: Turn off the relay, terminal A&B of receiver 1 no output.
Press and hold button 6: Turn on the relay, terminal A&B of receiver 6 outputs DC power.
Release button 6: Turn off the relay, terminal A&B of receiver 6 no output.
3) Setting control mode Interlocking: Do not connect Jumper-1 and Jumper-2.
Press button 1: Turn on the relay, terminal A&B of receiver 1 outputs DC power.
Press other buttons: Turn off the relay, terminal A&B of receiver 1 no output.
Press button 6: Turn on the relay, terminal A&B of receiver 6 outputs DC power.
Press other buttons: Turn off the relay, terminal A&B of receiver 6 no output.
Package Include:
6 x Receiver: S1XB-DC06 / S1XB-DC09 / S1XB-DC12 / S1XB-DC24 (1 Channel / Three Control Modes)
1 x Transmitter: CV-6
1 x User manual
Note:
The theoretical distance is 500m, which shall be operated in an open ground; no barriers and no any interference. But in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance can not reach 500m. If you need longer range, please choose other series of remote control, such as CB Serie (1000m/3000ft) - Click here ; Or you can add the External Extend Antenna (model: 0020909) on the receiver for improve the range - Click here .
