Package Include:
1 x Receiver: S1PF-DC12 / S1PF-DC24
1 x Transmitter: CM-99
1 x User manual
Application:
This receiver is a wireless controller for DC motor or linear actuator, it and the transmitter form a wireless transmitter receiver system. If you connect a DC motor to this receiver, you can operate the motor to rotate in positive or reversal direction by the remote control. If you connect a DC linear actuator to this receiver, you can operate the linear actuator to extend or retract by the remote control. You can connect two limit switches to the receiver and use them to stop the motor or the linear actuator. You also can connect a manual switch to the receiver and use them to control the motor or the linear actuator.
This receiver can work with a 99-channel remote control CM-99 to realize the function of one-control-multiple. The users can pair up to 99 receivers to this remote control, and use this remote control to operate 99 receivers individually or multiple receivers at the same time.
The CM-99 remote control has 5 buttons, the buttons ◄ or ► are used to select the channel, and the buttons ▲, ▼ and ■ are used to operate the DC motor or linear actuator.
Features:
Wireless control, easy to install.
Suitable for DC motor or linear actuator.
Two operating voltage versions: DC 12V or 24V optional.
You can operate the motor to rotate in positive or reversal direction by the transmitter.
You can operate the linear actuator to extend or retract by the transmitter.
With limit control terminals: You can connect sensors, limit switches or external devices to stop the motor or the linear actuator.
With wired control terminals: You can connect manual switches to control the motor or linear actuator.
You can use the transmitter / remote to control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

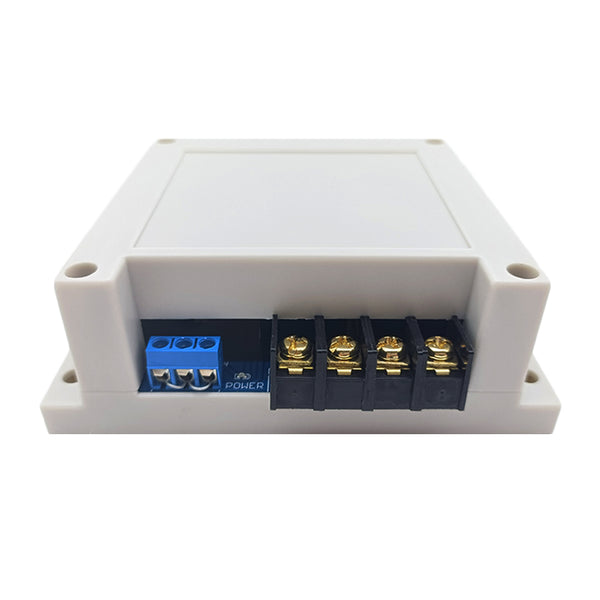

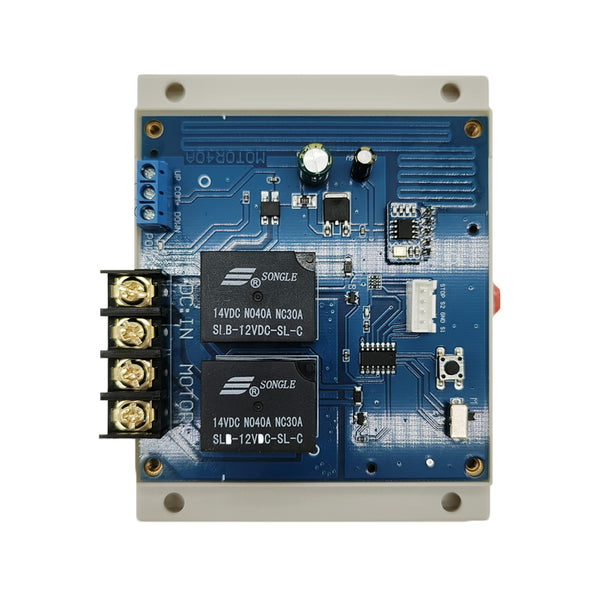

Receiver Parameters:

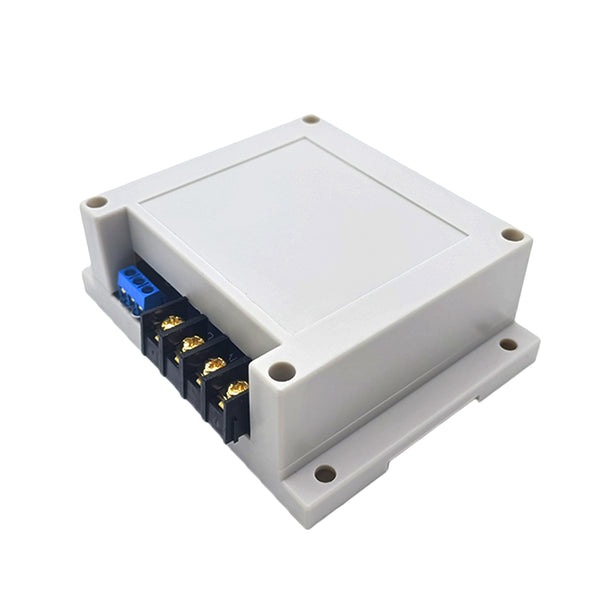

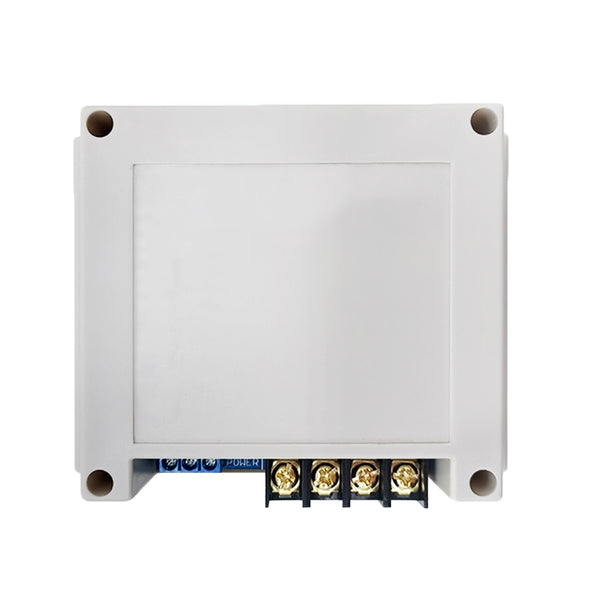

Model: S1PF-DC12 / S1PF-DC24
Operating Voltage: 12±1VDC (model S1PF-DC12), or 24±2VDC (model S1PF-DC24), the operating voltage must be specified when ordering.
Output Voltage: 12VDC (model S1PF-DC12) or 24VDC (model S1PF-DC24)
Working Frequency: 433.92 MHz
Quiescent Current: ≤10mA
Rated Current: 40A, so linear actuator or motor's maximum starting current cannot exceed 40A.
Wire range for the terminals: 22-12 AWG
2 Selectable Modes: Interlocking, Momentary
Operating Temperature: -20°C ~ +70°C

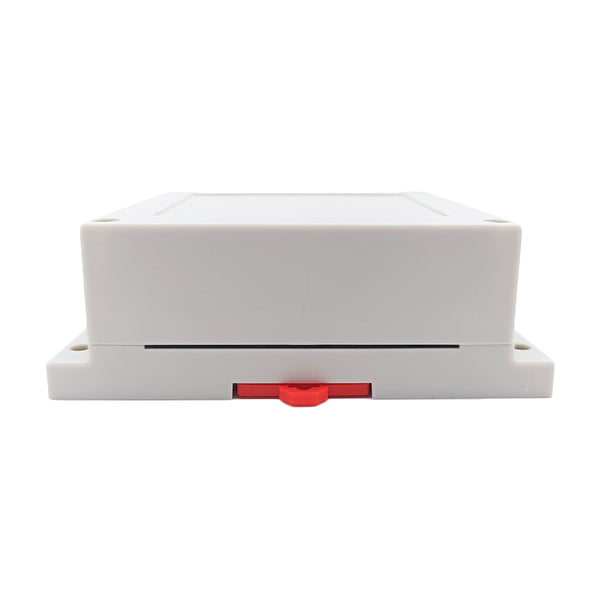

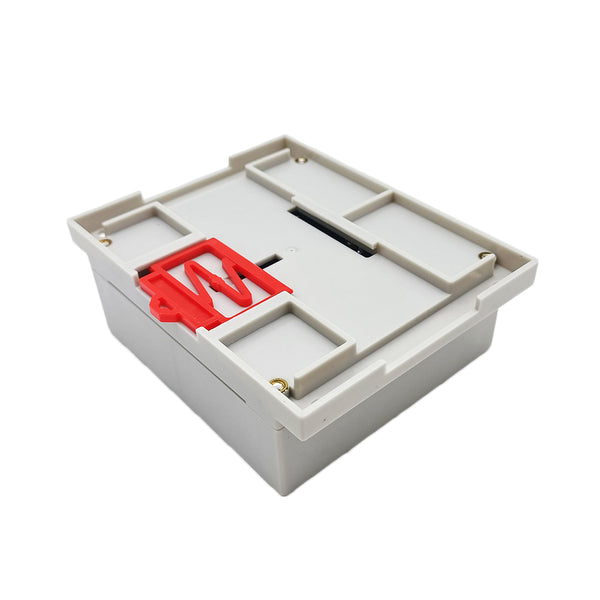

Case size: 115 x 95 x 40 mm (4.5 x 3.7 x 1.6 inches)

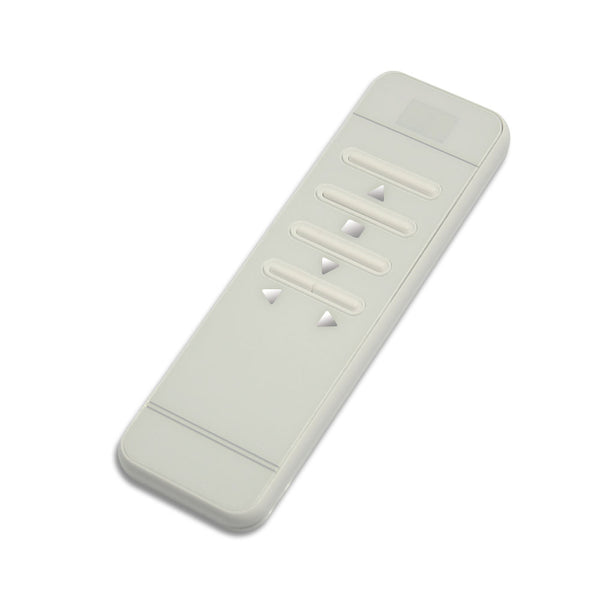

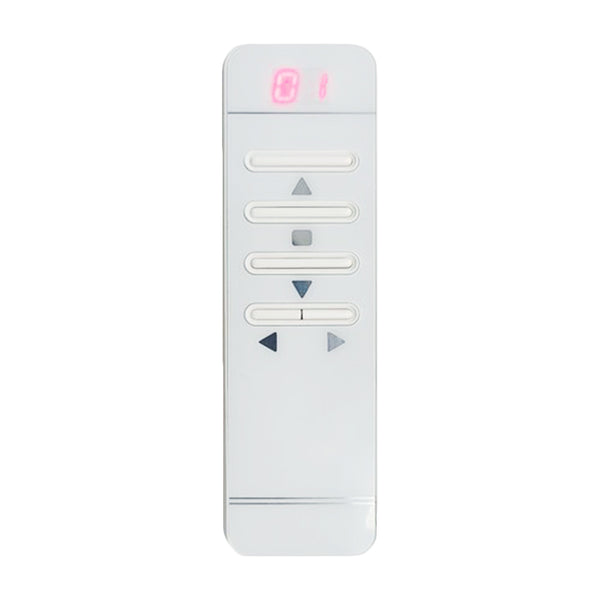

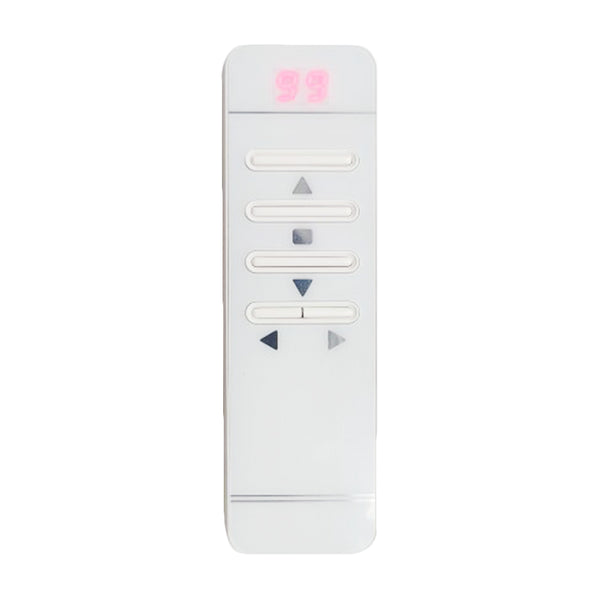

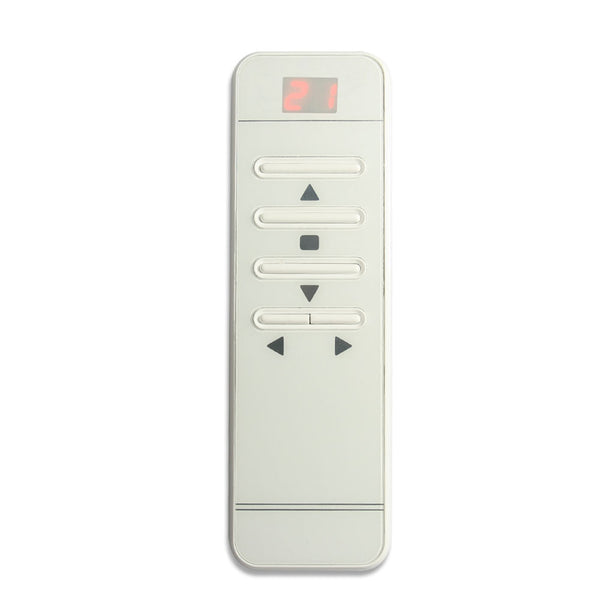

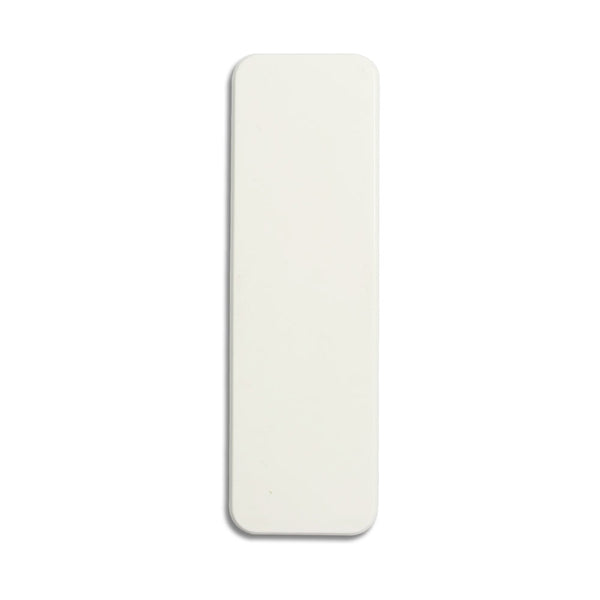

Transmitter Parameters:
Model: 0021099 (CM-99)
Channel: 99 Channels
Channel/Button: 5

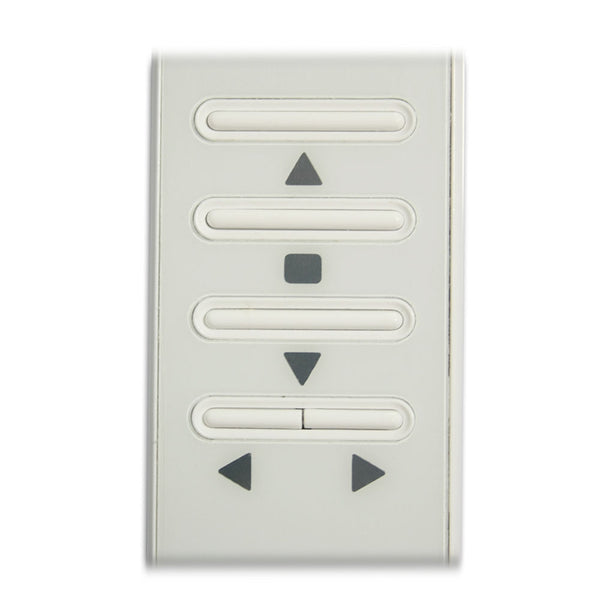

Button Symbol: ▲, ■, ▼, ◄, ►
Operating Voltage: 6V (2 x CR2032 -3V button cell batteries, can be used for 12 months)
Standby current: ≤5μA
Operating Current: ≤15mA
Operating Frequency: 433Mhz
Transmitting Distance: 50m / 150ft (theoretically)
Modulation Mode: ASK
Working Temperature:-10℃~70℃
Unit size: 135 x 42 x 12 mm (5.3 x 1.7 x 0.5 inches)
It is only compatible with our receivers S1F3-AC, S1F2-AC, S1F2-DC, S1PF-DC, S1PF3-DC, S1FC-DC, S1FM-DC.
Working Range:
This receiver and different transmitters form a complete set, which can achieve different working distances. For example, when it and the transmitter CM-99 form a complete set, the maximum working distance may reach 50 meters in an open area.
The maximum working distance is based on theoretical data without obstacles and any RF interference. In practice, it will be hindered by trees, walls, or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
The receiver equipped with an external antenna has a larger working range than the receiver equipped with an internal antenna.
Usage:
The receiver can be used to control DC 12V / 24V motor or linear actuator. If the power supply of those equipment is DC 12V, you should choose the receiver with same DC 12V version; and if the power supply of those equipment is DC 24V, you should choose the receiver with same DC 24V version.

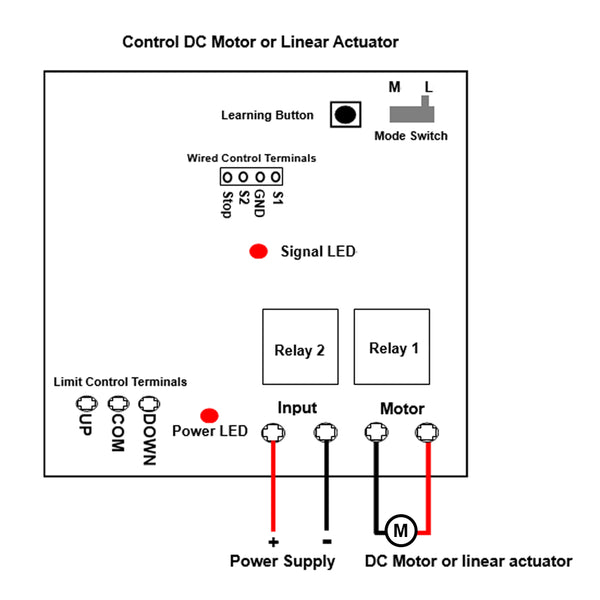

Wiring:
If you want to control a DC 12V / 24V motor or linear actuator, do as following:
1) Connect the positive pole of DC power supply to terminal <+> of Input, and connect the negative pole of DC power supply to terminal <-> of Input.
2) Connect two wires of motor or linear actuator to terminals <Motor>, and you can exchange these two wires to change the rotating direction of motor or the moving direction of linear actuator.
Setting different working modes:
The receiver will be set in Interlocking mode before leaving the factory, if you require momentary mode, please follow the following steps.
Note: Need to restart the receiver after changing the working mode.
1) Setting Interlocking mode: Turn the mode switch in the receiver to location L.
The operation by the transmitter, such as CM-99:
First press the button ◄ or ► on the transmitter to select the corresponding channel, the digital screen will display the number of this channel, then the screen automatically shut down after 2 seconds.
Press the button ▲ on the transmitter: Motor rotates in positive direction, or linear actuator extends outward.
Press the button ▼ on the transmitter: Motor rotates in reversal direction, or linear actuator inward retracts.
Press the button ■ on the transmitter: Motor or linear actuator stops.
2) Setting Momentary mode: Turn the mode switch in the receiver to location M.
The operation by the transmitter, such as CM-99:
First press the button ◄ or ► on the transmitter to select the corresponding channel, the digital screen will display the number of this channel, then the screen automatically shut down after 2 seconds.
Press and hold the button ▲ on the transmitter: Motor rotates in positive direction, or linear actuator extends outward.
Release the button ▲: Motor or linear actuator stops.
Press and hold the button ▼ on the transmitter: Motor rotates in reversal direction, or linear actuator inward retracts.
Release the button ▼: Motor or linear actuator stops.

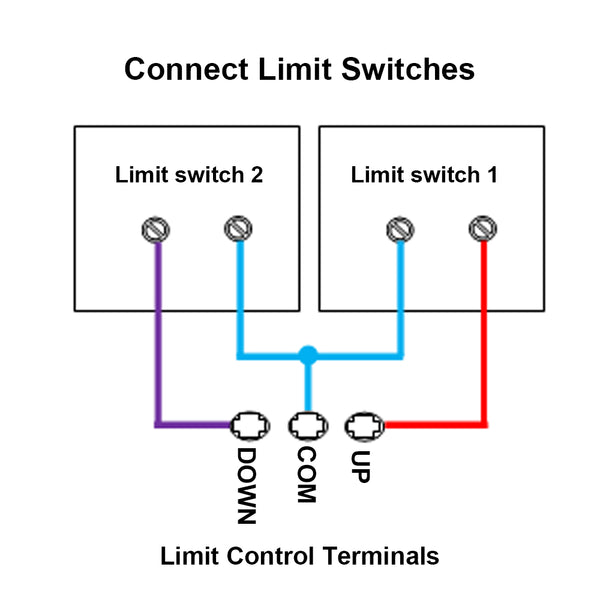

Limit control terminals:
The receiver has limit control terminals, and you can connect external devices (with normally closed contact), such as sensors, limit switches to limit terminals, then use them to stop the motor or the linear actuator.
For example, you can connect a normally closed limit switch to terminals <COM> and <UP>, and connect another normally closed limit switch to terminals <COM> and <DOWN>.
When motor rotates in positive direction, or linear actuator extends outward, if disconnect two terminals <COM> and <UP>, the motor or linear actuator will stop automatically.
When motor rotates in reversal direction, or linear actuator inward retracts, if disconnect two terminals <COM> and <DOWN>, the motor or linear actuator will stop automatically.

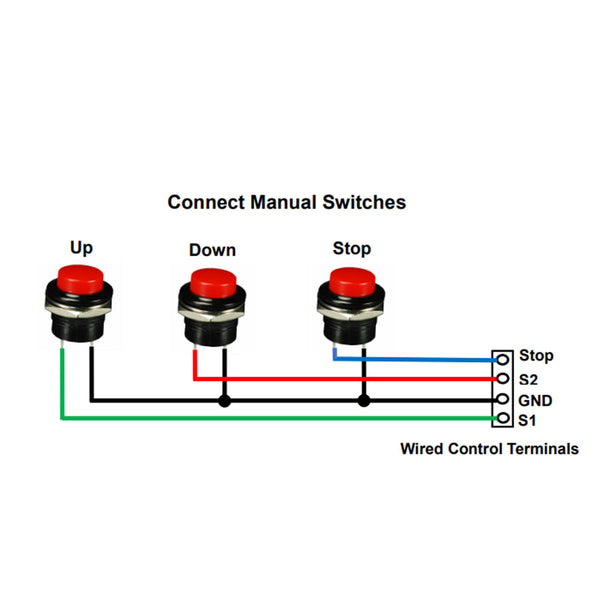

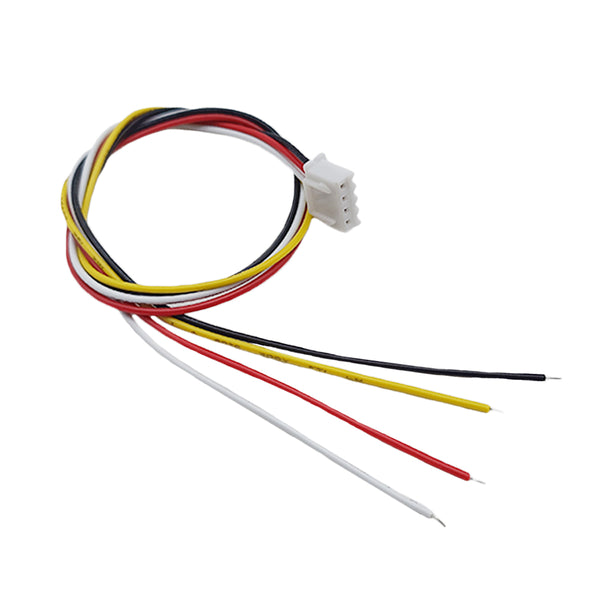

Wired control terminals:
The receiver has wired control terminals, and you can connect external devices (with normally open contact), such as manual switches to wired control terminals, then use them to control the motor or the linear actuator.
For example, you can connect three manual switches to wired control terminals <STOP>, <S1>, <COM> and <S2> according to following wiring diagram.
1) In Interlocking mode:
When connect two terminals <S1> and <COM>, the motor rotates in positive direction, or the linear actuator extends outward. And when connect two terminals <STOP> and <COM>, motor or linear actuator stops.
When connect two terminals <S2> and <COM>, the motor rotates reversal direction, or the linear actuator inward retracts. And when connect two terminals <STOP> and <COM>, motor or linear actuator stops.
2) In Momentary mode:
When connect two terminals <S1> and <COM>, the motor rotates in positive direction, or the linear actuator extends outward. And when disconnect two terminals <S1> and <COM>, motor or linear actuator stops.
When connect two terminals <S2> and <COM>, the motor rotates reversal direction, or the linear actuator inward retracts. And when disconnect two terminals <S2> and <COM>, motor or linear actuator stops.
How to pair the transmitter to the receiver:
You can pair any channel on the transmitter to any receiver you want to control.
1) First press the button ◄ or ► on the transmitter to select the corresponding channel, the digital screen will display the number of this channel, then the screen automatically shut down after 2 seconds.
2) Select the receiver you want to control, then press the learning button in the receiver for 1- 2 seconds; signal LED on the receiver turns on, this indicates that the receiver enters the learning status.
3) Press the button ▲ on the transmitter, signal LED flashes twice; then press the button ▼ on the transmitter, signal LED flashes twice; then press the button ■ on the transmitter, signal LED flashes twice; finally press the learning button in the receiver, signal LED turns off, this indicates that the pairing is successful.
4) Press the learning button of receiver again for 1-2 seconds, the LED signal turns off, it means the receiver exits the learning state.
How to delete all transmitters codes stored in the receiver:
We have paired the transmitter to the receiver, if you don’t want the receiver to work with the transmitter, you can delete all transmitters codes stored in the receiver.
Operation: Press and hold the learning button in the receiver for 4-5 seconds until signal LED flashes 3 times and then turns off, this indicates all stored codes have been deleted successfully.
