Feature:

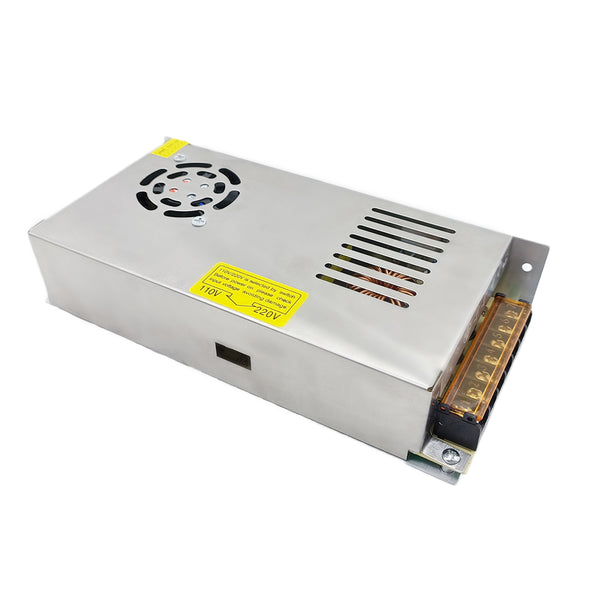

Universal AC input, 110V/220V is selectable by switch
Protection types: Short circuit / Overload / Over voltage
Auto-recovery after protection
Forced air cooling by built-in DC fan
PWM control and regulation
100% full load burn-in test
Design with Built-in EMI Filter
LED indication for power on
Lower Power consumption, Lower Temperature, High efficiency, High reliability
Specification:

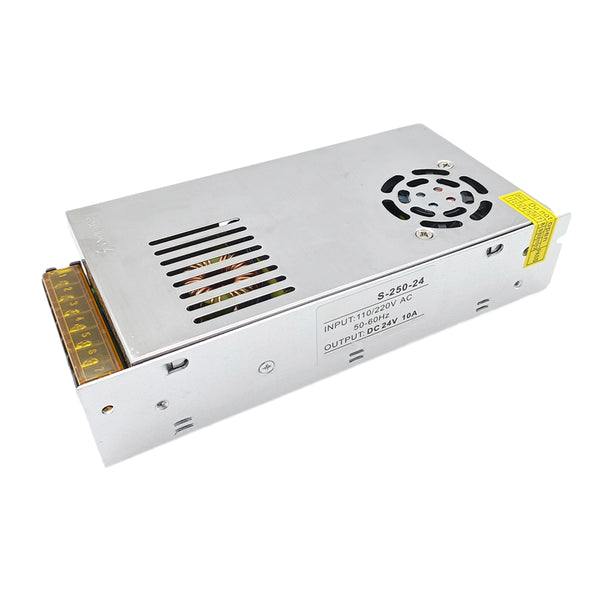

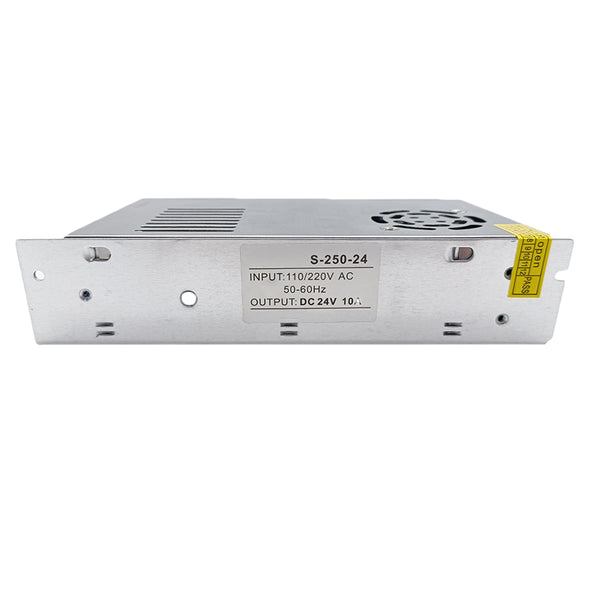

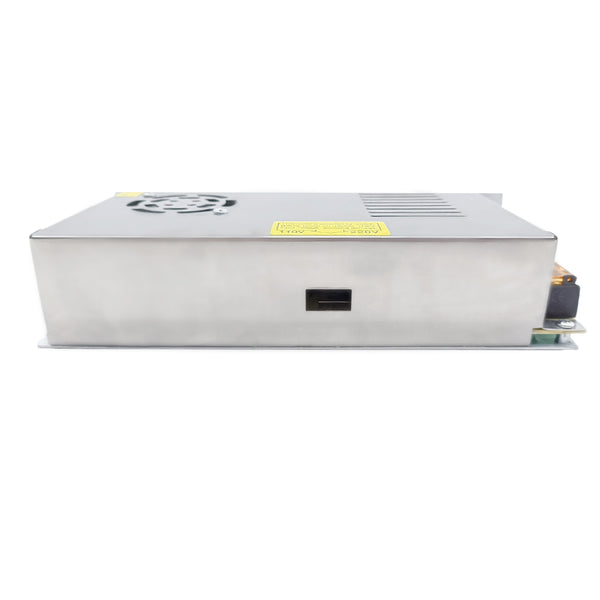

Model: 0010140
Size: 198 x 98 x 40 mm (7.8 x 3.9 x 1.6 inches)
Input: 100~120VAC or 200~240VAC
Frequency range: 50/60Hz
Output: DC 24V
Voltage adjustment range: ±10%
Rated current: 10A
Rated power: 240W
Overload: 110~150% rated output power
Over voltage: 27.6~32.4V
Working temperature: -20°C ~ +70°C
