Feature:
Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
Wireless control, easy to install.
Universal input: Support voltage of AC110V (100V~120V), widely used in US, Canada... and voltage of AC220V (200V~240V), used in UK, France...
High Power: Each channel can work at maximum current 30A, such as 360W/12V, 180W/6V, 270W/9V, 720W/24V, 3000W/110V, 6000W/220V.
With wired control terminals: You can connect sensors, limit switches, manual switches or external devices to control the receiver.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

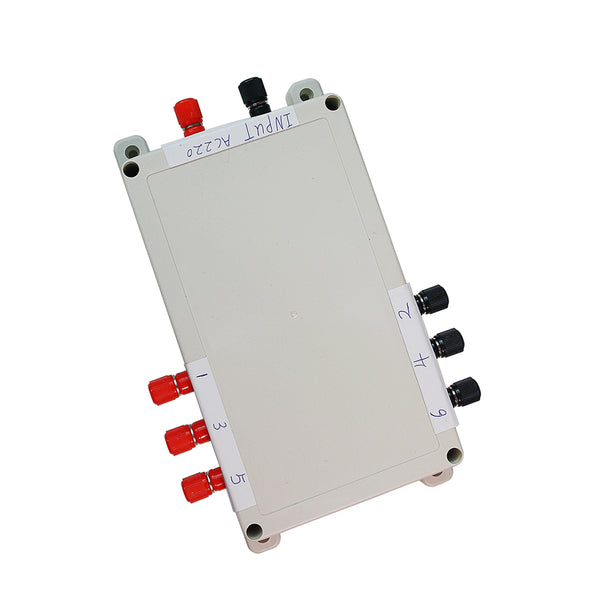

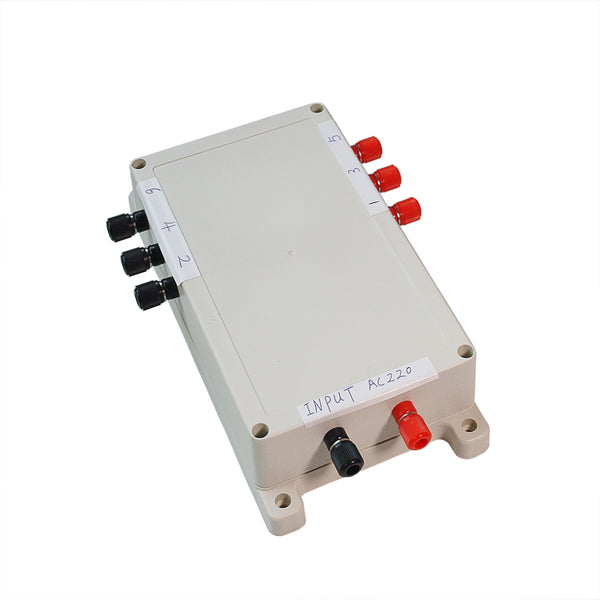

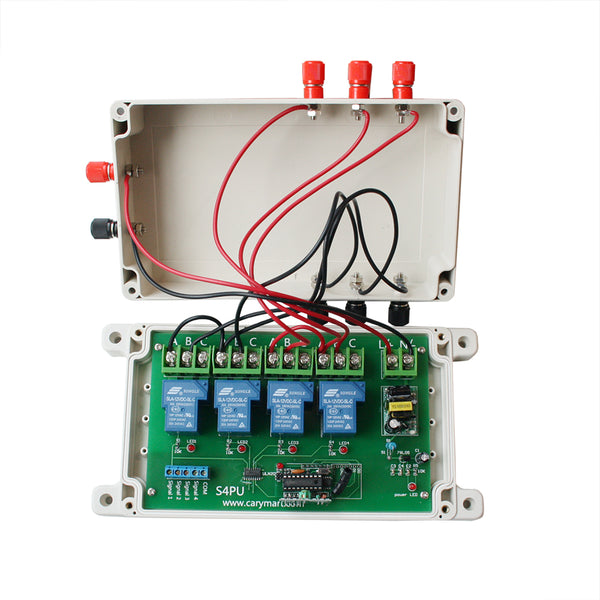

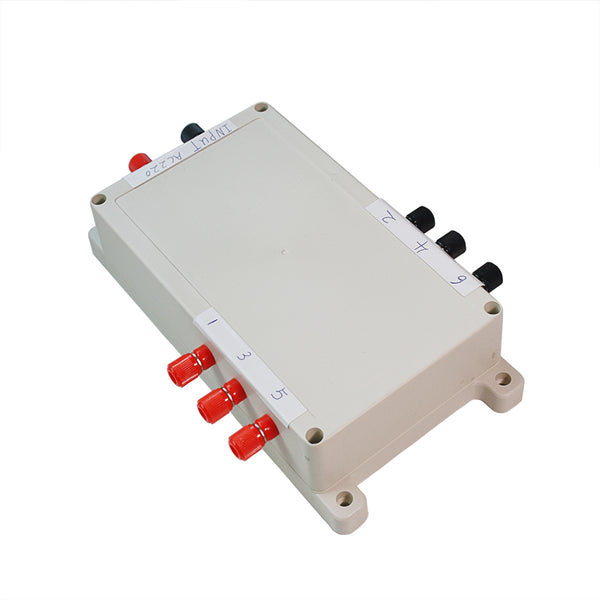

Receiver Parameters:
Model No.: S4PA-AC220
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output Type: Normally Open
Working Voltage Range of Relay: AC110~240V or DC0~28V
Working Frequency: 433MHz
Channel: 4 CH
Control Modes: Momentary, Interlocking
Static Current: ≤6mA
Maximum Working Current: 30A / each channel
PCB Size: 170mm x 109mm x 18mm
Case Size: 200mm x 120mm x 53mm

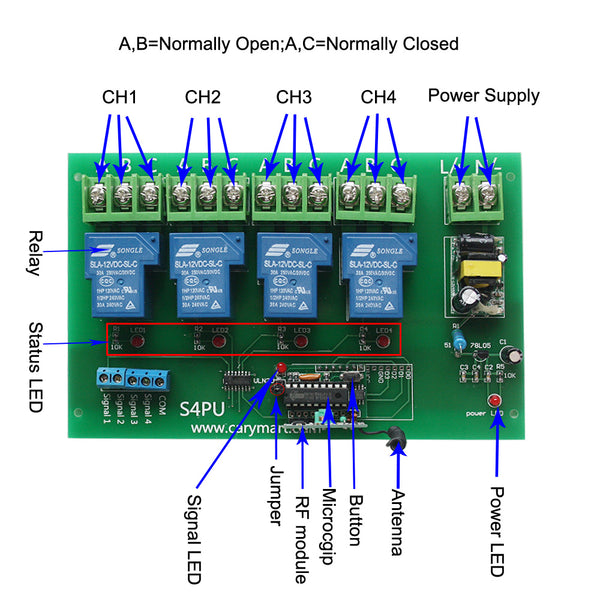

Product Description:

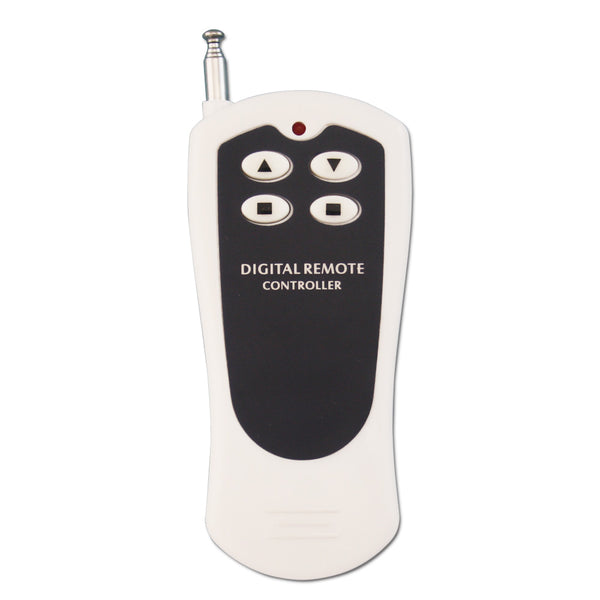

Model No.: 0021051 (CV-4-2)
Shell Color: White
Channel/Button: 4
Button Symbol: ▲, ▼, Two■

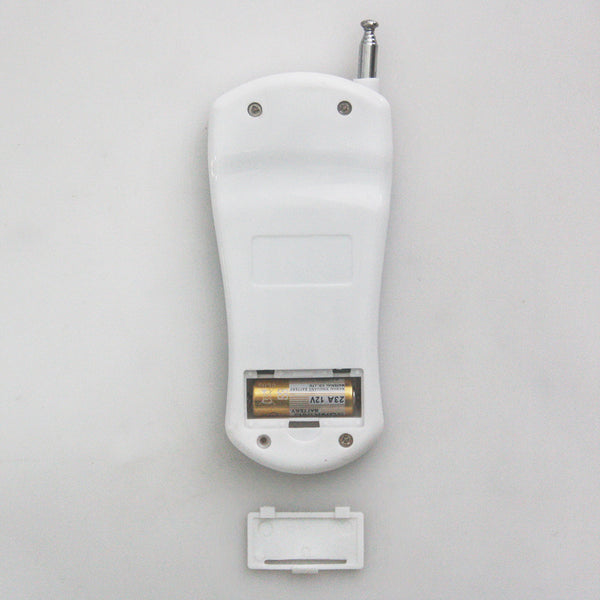

Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433Mhz
Encoding Chip: LX2260A-R4
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 500m / 1500ft (theoretically)
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm
Working Range:
With a transmitter (such as CV-4-2) to form a complete set, the maximum working distance can reach 500M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB series transmitters.
Usage (with the transmitter CV-4-2):
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.
Notice: The receiver is relay output (Normally open), not DC/AC power output.
Wiring:
If you want to control an AC 220V motor, do as following:
1) Connect the live wire of AC power supply to red terminal of INPUT, and connect the neutral wire of AC power supply to black terminal of INPUT.
2) Connect terminal 4 of receiver to the live wire of AC power supply; connect the neutral wire of AC power supply to common line of the AC motor
3) Connect terminals 1, 5&6 of receiver to the wire for reversal rotation of AC motor; connect terminal 2 of receiver to the wire for positive rotation of AC motor
4) Connect a side of capacitor to wire for positive rotation of AC motor, and connect another side of capacitor to the terminal 3 of receiver.
Setting different control modes:
Setting control mode Interlocking (with transmitter CV-4-2): Disconnect Jumper-1 and Jumper-2.
Press button ▲ on remote: Connect terminals 1&3, and connect terminals 2&4, motor rotates in positive direction.
Press button ■ on remote: Disconnect terminals 1&3, and disconnect terminals 2&4, motor stops.
Press button ▼ on remote: Connect terminals 3&5, and connect terminals 4&6, motor rotates in reversal direction.
Press button ■ on remote: Disconnect terminals 3&5, and disconnect terminals 4&6, motor stops.
Setting control mode Momentary (with transmitter CV-2-2): Only connect Jumper-1.
Press and hold button ▲ on remote: Connect terminals 1&3, and connect terminals 2&4, motor rotates in positive direction.
Release button: disconnect terminals 1&3, and disconnect terminals 2&4, motor stops.
Press and hold button ▼ on remote: Connect terminals 3&5, and connect terminals 4&6, motor rotates in reversal direction.
Release button: disconnect terminals 3&5, and disconnect terminals 4&6, motor stops.
