Feature:
ABS flame retardant plastics

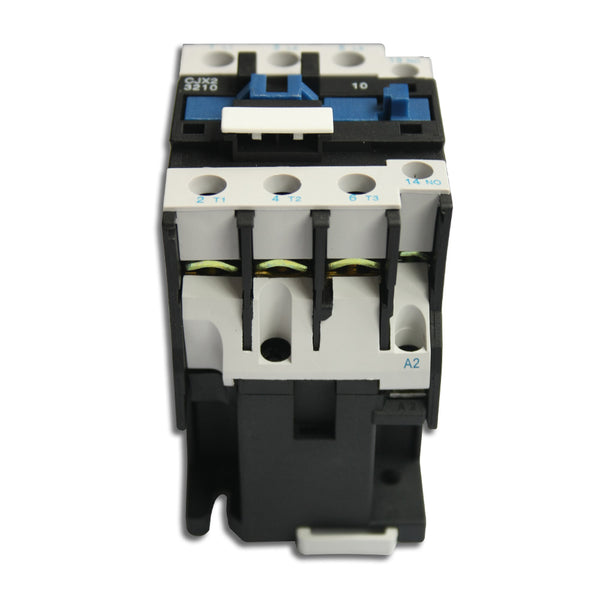

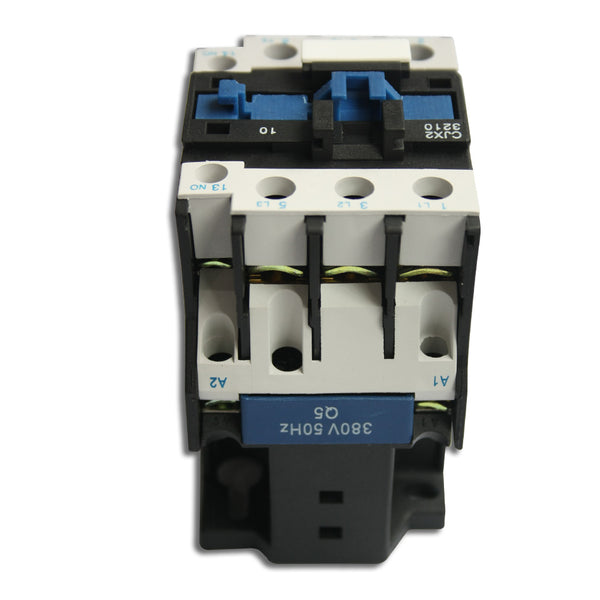

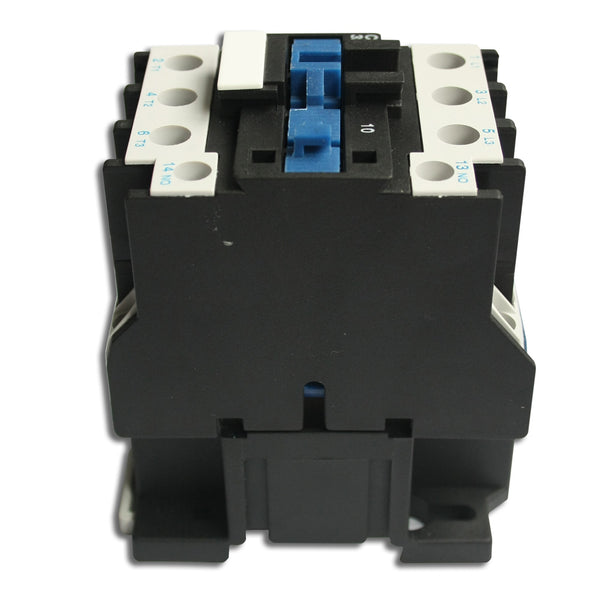

AC contactor (aka motor starter) is a high capacity relay. It is often used to control a motor or as a main power switch.
It’s used for long range connection and circuit disconnection, frequent activation and controlling AC motor.
Specification:
Model No.: 0040011
Three main contact: All Normally Open
One auxiliary contact: Normally Open
Contact: Silver
Max. Current: 32A
Contact Rating:220V/32A/7.5KW, 380V/32A/15KW, 690V/32A/18.5KW
Control (Coil) Voltage: 110VAC, or 220VAC, or 380VAC (You must specify the coil voltage. Otherwise, 220V coil will be sent out as default choice)
Weight: 570g
Dimensions: 57mm x 86mm x 100mm
Mounting Method: 35mm DIN Rail or Screw On.
ABS flame retardant plastics
AC contactor (aka motor starter) is a high capacity relay. It is often used to control a motor or as a main power switch.
It’s used for long range connection and circuit disconnection, frequent activation and controlling AC motor.
Specification:
Model No.: 0040011
Three main contact: All Normally Open
One auxiliary contact: Normally Open
Contact: Silver
Max. Current: 32A
Contact Rating:220V/32A/7.5KW, 380V/32A/15KW, 690V/32A/18.5KW
Control (Coil) Voltage: 110VAC, or 220VAC, or 380VAC (You must specify the coil voltage. Otherwise, 220V coil will be sent out as default choice)
Weight: 570g
Dimensions: 57mm x 86mm x 100mm
Mounting Method: 35mm DIN Rail or Screw On.
