Feature:

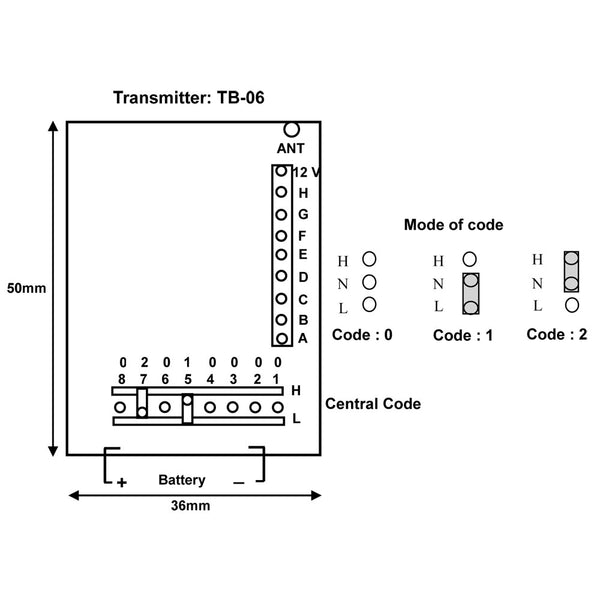

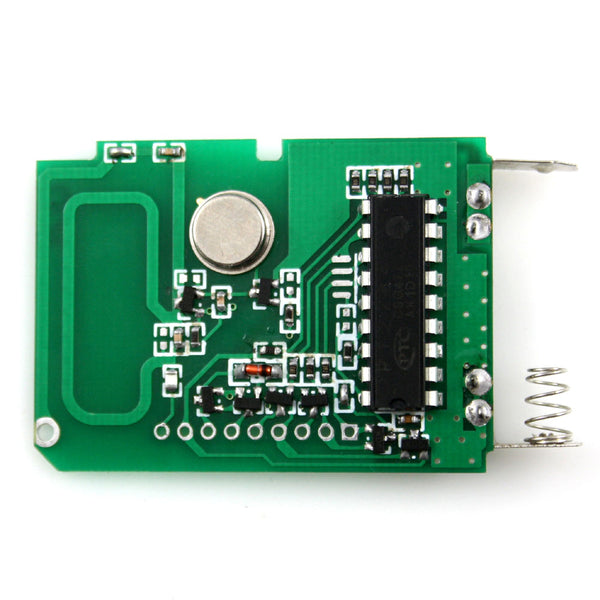

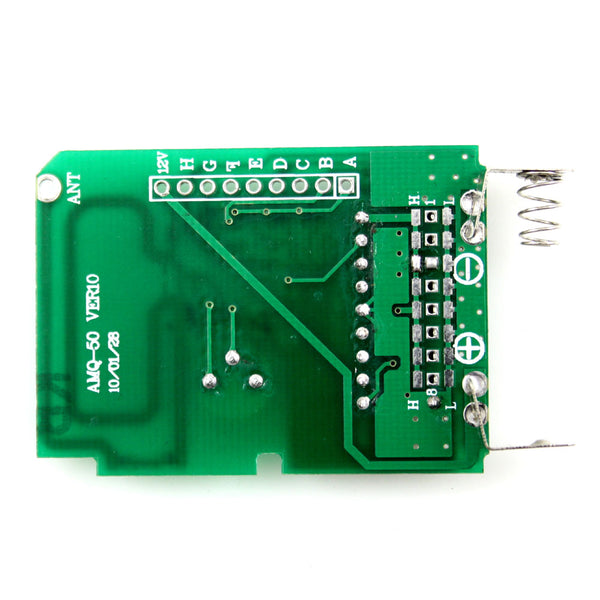

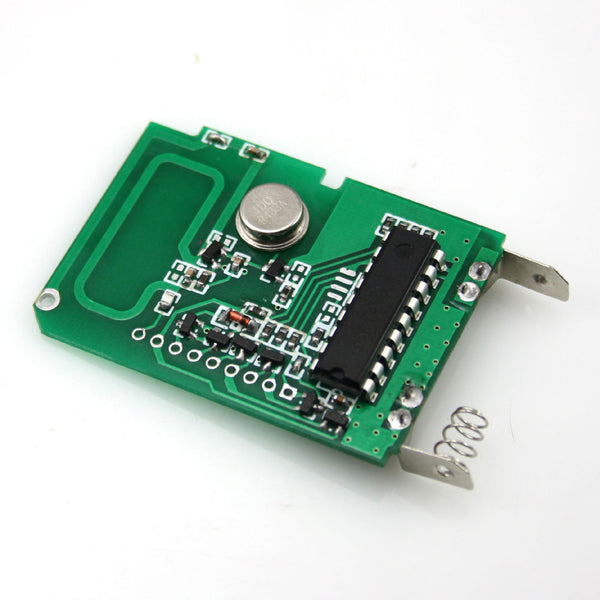

Model No.: 0021109 (TB-06)
Size: 50mm x 36mm x 5mm
Working Voltage: DC9~12V (battery is not included)
Working Current: 20mA
RF Sensitivity: -103dBm
Transmitting Distance: 50m /150ft (in open field)
Modulation Method: Amplitude modulation (ASK or OOK)
Encoding Mode: Fixed code by Soldering
Working Temperature: -20°C ~ +70°C
Frequency: 433.92 MHz
Oscillation resistor / Timing resistor: We can offer 1.2M, 1.5M, 1.8M, 2.2M, 3.3M or 4.7M, you can choose one.
Reliable Control: Use an 8-bit code (Encoding).
Stable performance; using SAW (surface acoustic wave) to stabilize frequency
Wide working voltage range, large transmitting power and long transmission distance
Application:
Used for wireless calling system, burglar alarm, wireless data transmission, auto data collection system and so on.
Applied to all fixed code receivers with 1, 2, 3, 4, 6, 8, 10, 12, 15 channels
Notes:
The transmitting frequency, encoding mode and timing resister should be compatible with the receiver.
