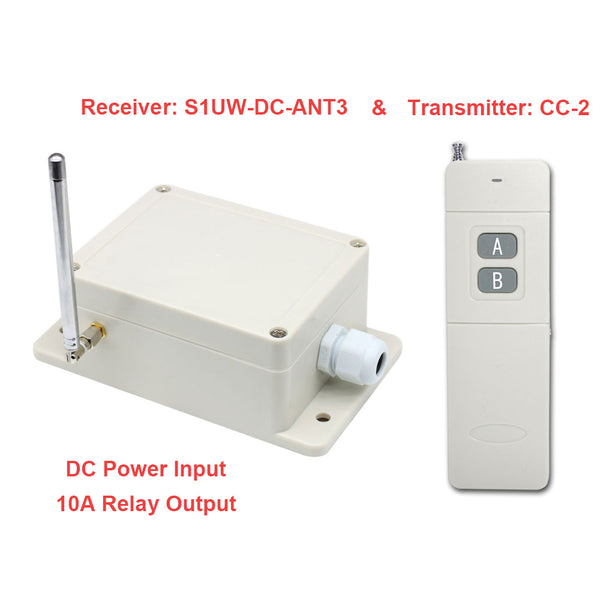

Introduction:
This is a long range RC transmitter and receiver kit, including a S1UW-DC-ANT3 receiver and a CC-1 or CC-2 transmitter. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. It’s ideal for controlling various AC/DC devices in industrial, agricultural, and home applications, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems.
Key Features:
Super Long Working Range: Up to 5000m (15,000 ft) in open areas.

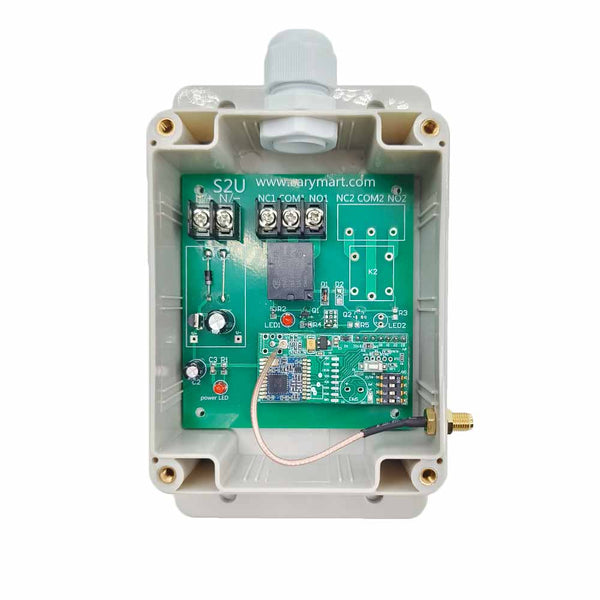

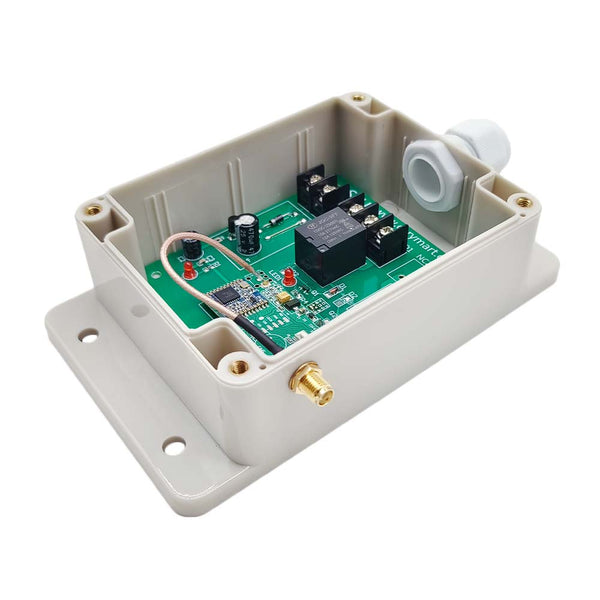

Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
Versatile Compatibility: Controls both DC and AC equipment by dry relay output.
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.
With Feedback Function: Two-way communication lets the transmitter confirm receiver activation with a buzz.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.

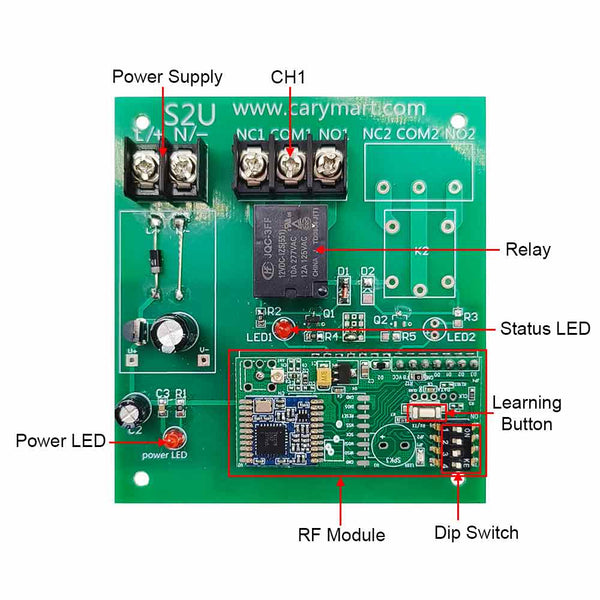

Receiver S1UW-DC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage Options | DC 6V, 9V, 12V, or 24V (specify when ordering) |
| Output Type | Dry Relay Output (With NO and NC Terminals) |
| Channel | 1 CH |
| Load Capacity | 240VAC or 28VDC, Max 10A/channel |
| 3 Selectable Working Modes | Self-locking, Momentary, Interlocking |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |

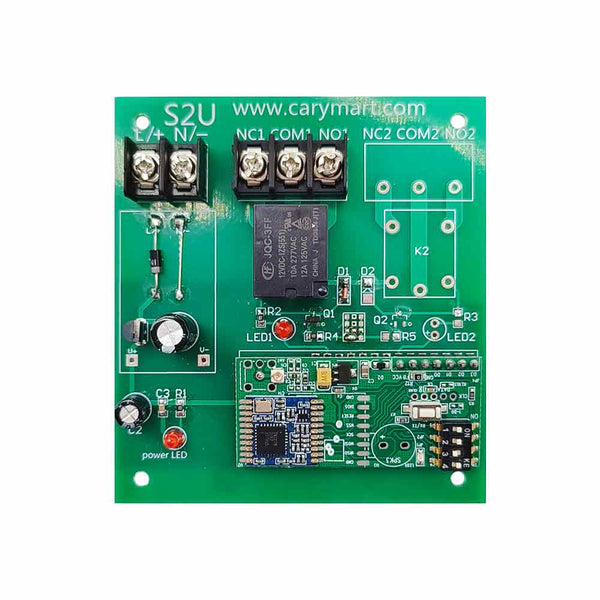

| PCB size | 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches) |
| Case size | 153 x 90 x 55 mm (6.0 x 3.6 x 2.2 inches) |
| Matching Transmitters |
CC-1 / CCW-1(waterproof) for Self-locking mode or Momentary mode, CC-2 / CCW-2(waterproof) for Interlocking mode. |

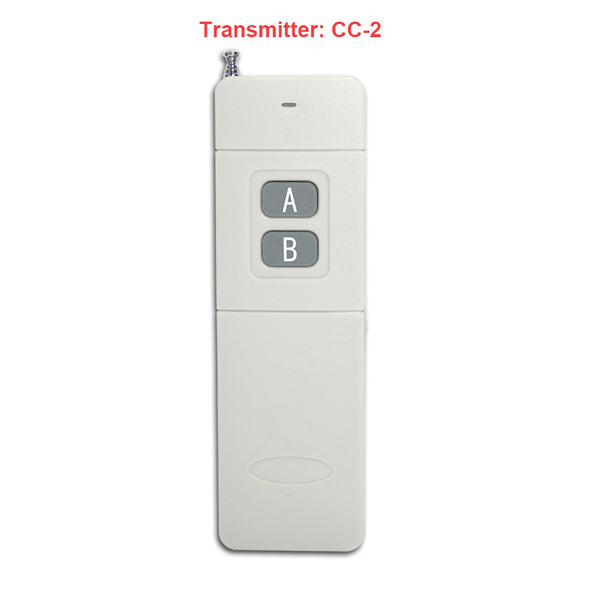

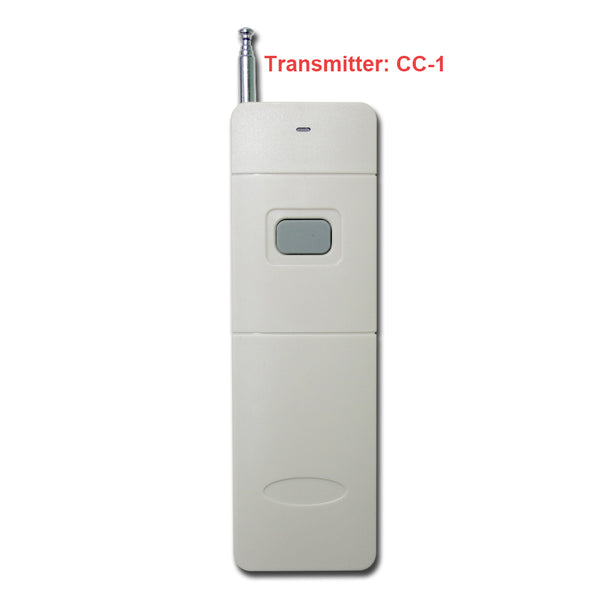

Transmitter CC-1 (1 Button) / CC-2 (2 Buttons) Parameters:
| Parameters | Detail |
|---|---|

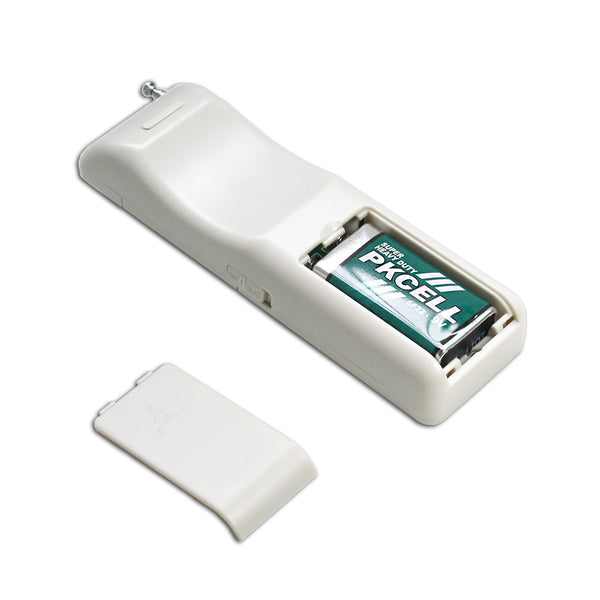

| Operating Voltage | 9V (1 x 6F22-9V battery, can be used for 12 months) |
| Operating Frequency | 433.92 Mhz |
| Transmitting Distance | 5000m / 15000ft (theoretically) |
| Unit Size | 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches) |

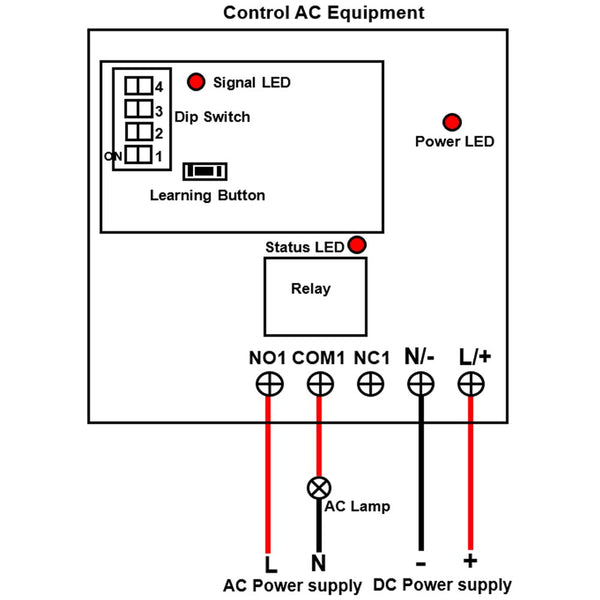

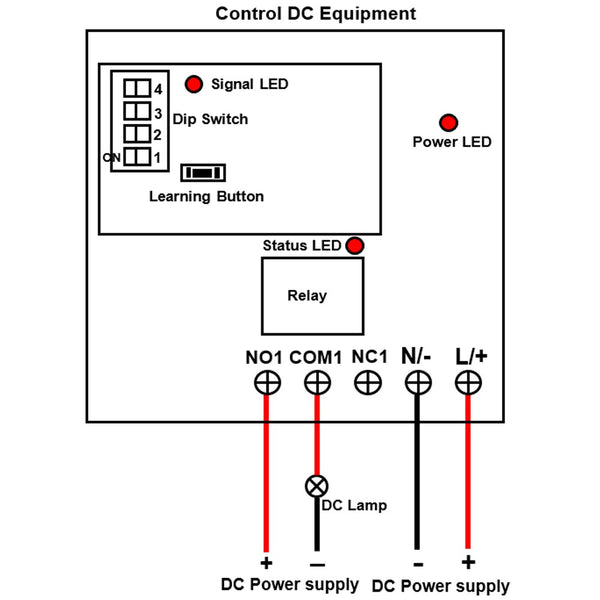

Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Turn on the third bit of the dip switch.
Operation with CC-1:
Press once → Relay activates (device ON)
Press again → Relay deactivates (device OFF)
2) Setting Momentary mode: Turn off the second bit and the third bit of the dip switch.
Operation with CC-1:
Hold button → Relay activates (device ON)
Release → Relay deactivates (device OFF)
3) Setting Interlocking mode: Turn on the second bit of the dip switch.
Operation with CC-2:
Press Button A → Relay activates (device ON)
Press Button B → Relay deactivates (device OFF)
