Introduction:

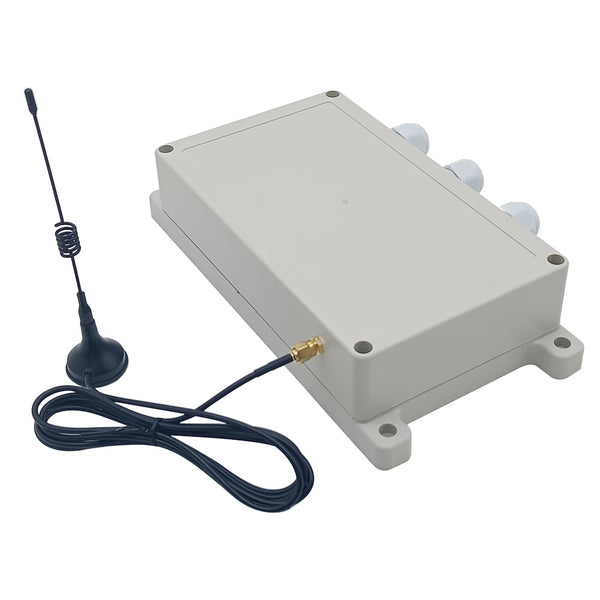

This is a long range RC transmitter and receiver kit, including a S4PXW-AC-ANT3 receiver and a CC-4 or CCW-4 transmitter. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. It’s ideal for controlling various AC/DC devices in industrial, agricultural, and home applications, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems.
Key Features:
Super Long Working Range: Up to 5000m (15,000 ft) in open areas.

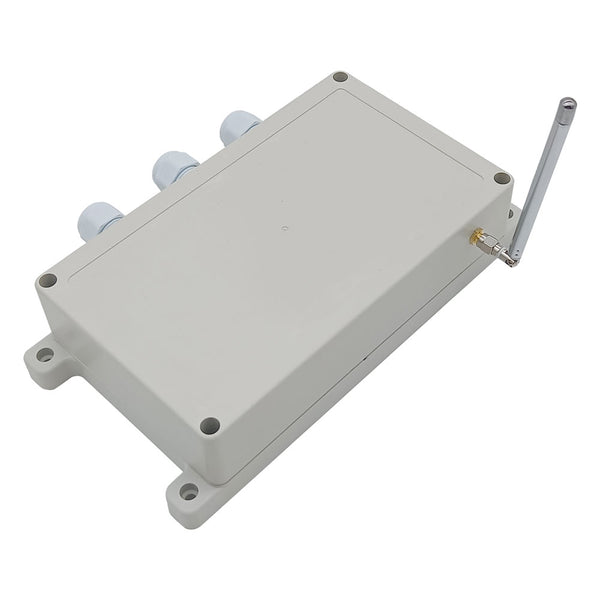

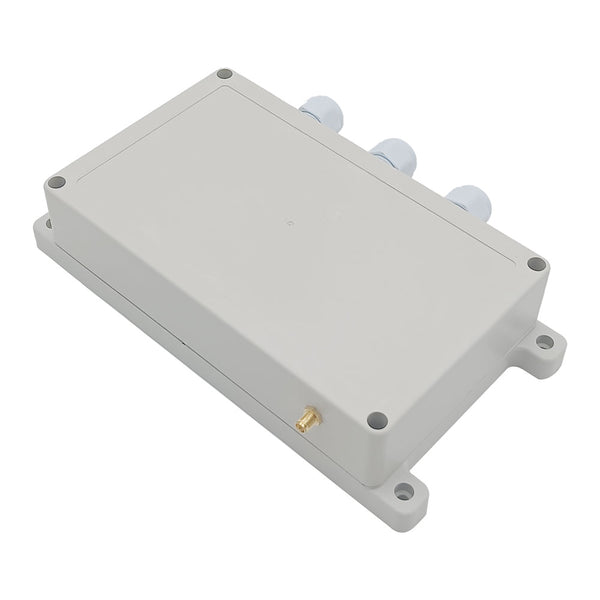

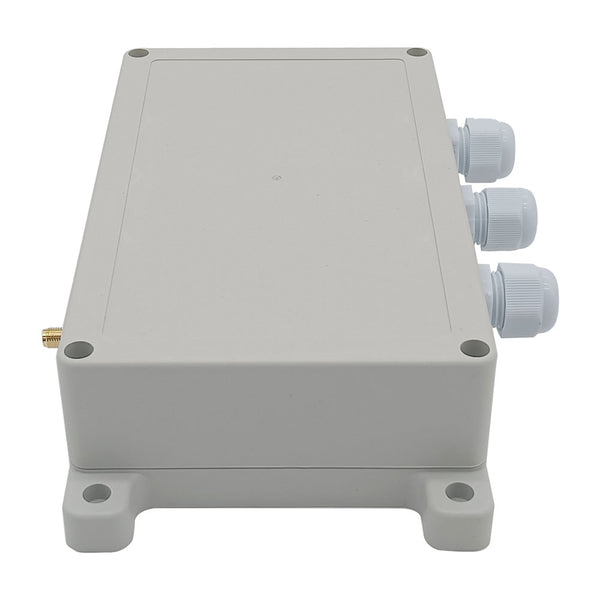

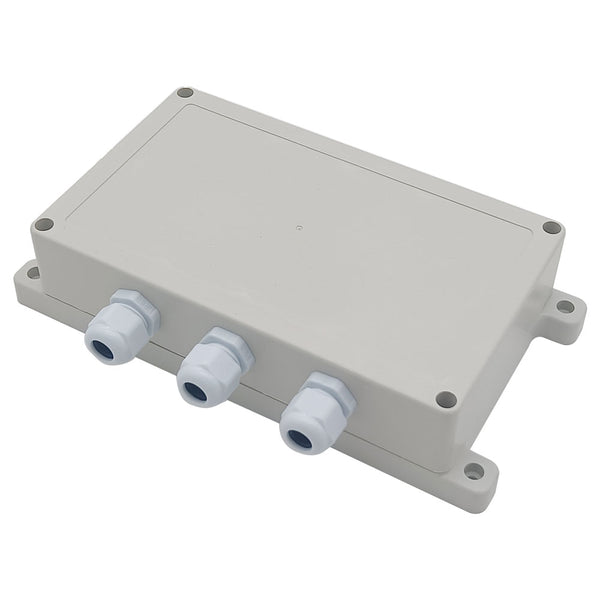

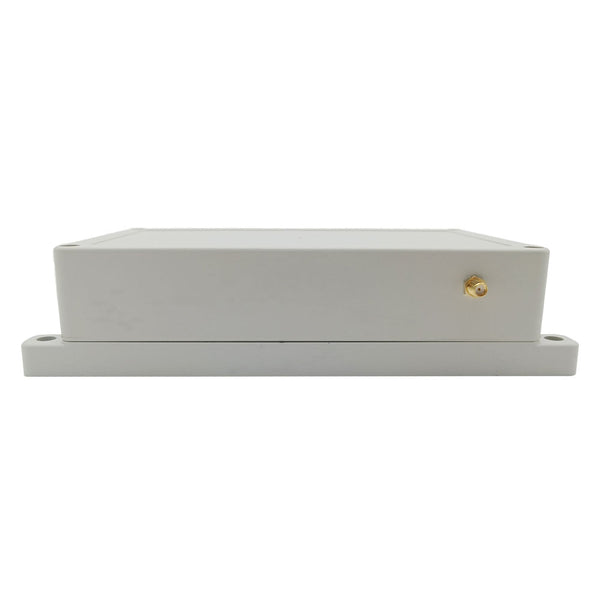

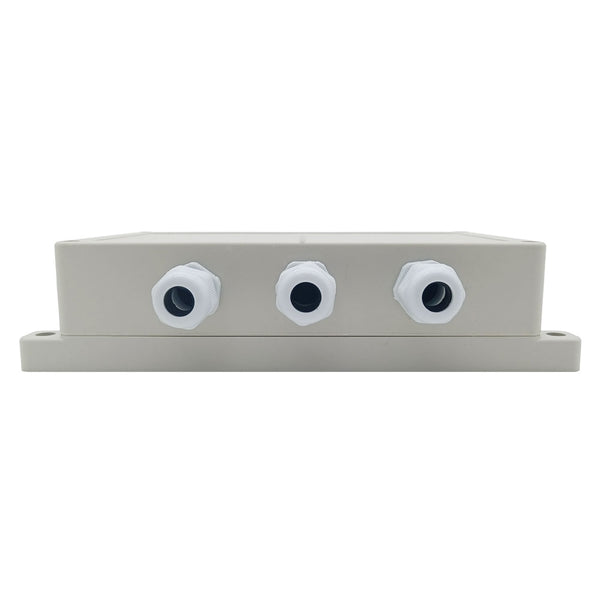

Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
AC Power Output: Controls AC equipment with voltage AC 110V, 120V, 220V or 240V.
High Power: Each channel can work at maximum load current 30A.
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.
With Feedback Function: Two-way communication lets the transmitter confirm receiver activation with a buzz.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.

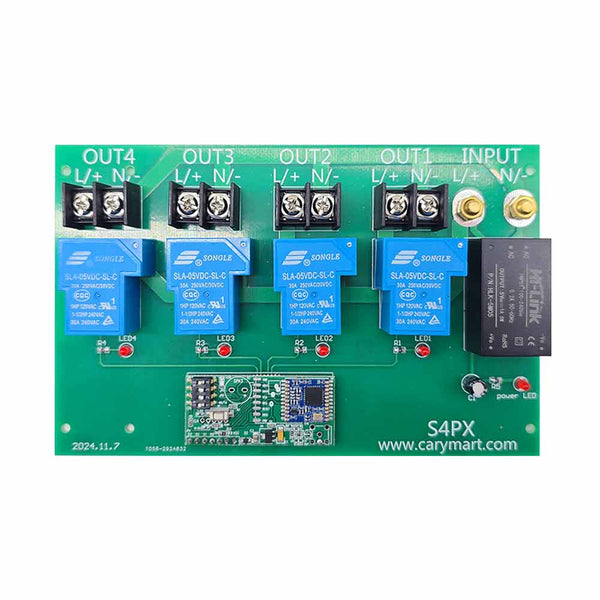

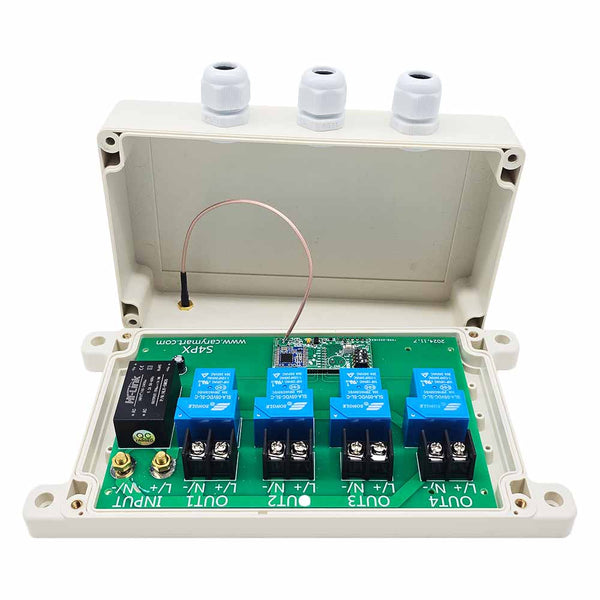

Receiver S4PXW-AC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 110~240V AC (110V/120V/220V/240V) |
| Output Type | 110~240V AC (110V/120V/220V/240V) |
| Channel | 4 CH |
| Maximum Load Current of Relay | 30A/channel |
| 3 Selectable Working Modes | Self-locking, Momentary, Interlocking |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |
| PCB size | 170 x 100 x 18 mm (6.7x 4.0 x 0.7 inches) |

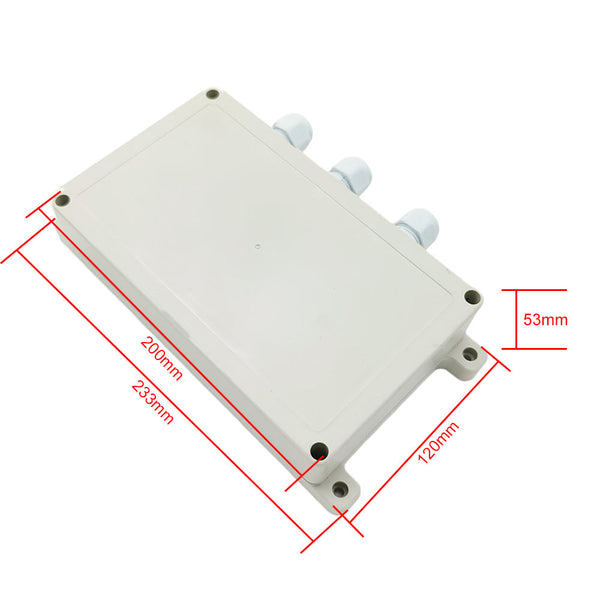

| Case size | 200 x 120 x 53 mm (7.9x 4.0 x 2.0 inches) |
| Matching Transmitters | CC-4 / CCW-4(waterproof) |

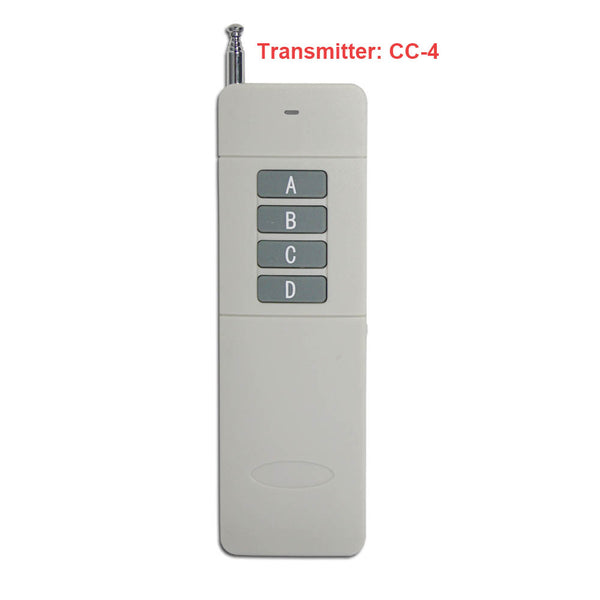

Transmitter CC-4 (4 Buttons) Parameters:
| Parameters | Detail |
|---|---|

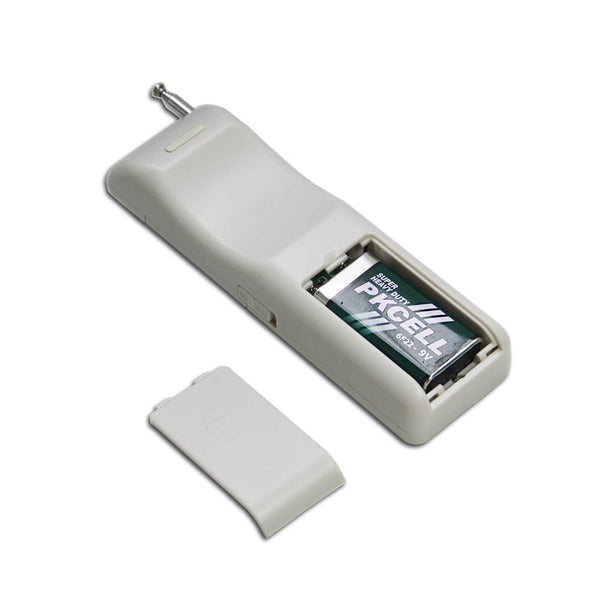

| Operating Voltage | 9V (1 x 6F22-9V battery, can be used for 12 months) |
| Operating Frequency | 433.92 Mhz |
| Transmitting Distance | 5000m / 15000ft (theoretically) |
| Unit Size | 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches) |

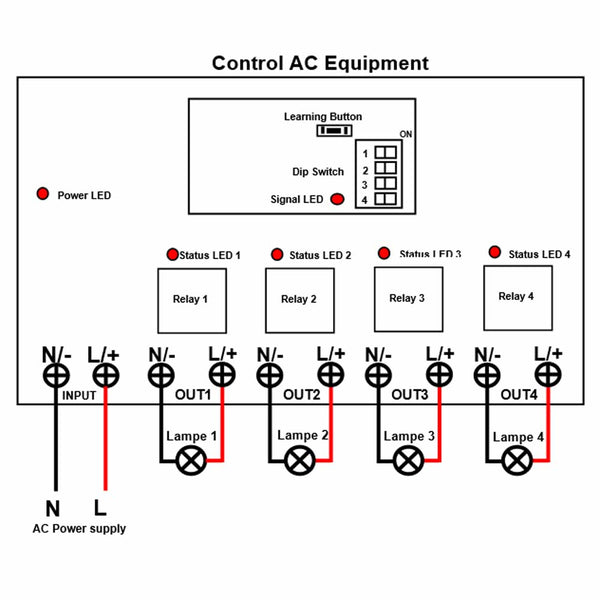

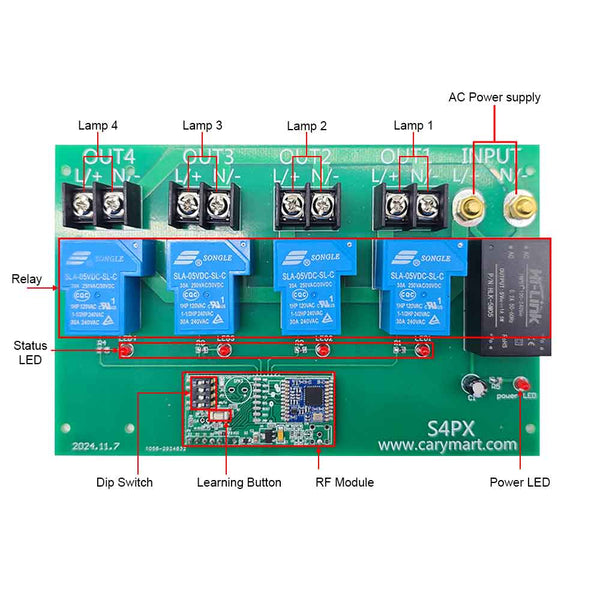

Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Turn on the third bit of the dip switch.
Operation with CC-4:
Press Button A → Relay 1 activates (device 1 ON)
Press Button A again → Relay 1 deactivates (device 1 OFF)
……
Press Button D → Relay 4 activates (device 4 ON)
Press Button D again → Relay 4 deactivates (device 4 OFF)
2) Setting Momentary mode: Turn off the second bit and the third bit of the dip switch.
Operation with CC-4:
Hold Button A → Relay 1 activates (device 1 ON)
Release Button A → Relay 1 deactivates (device 1 OFF)
……
Hold Button D → Relay 4 activates (device 4 ON)
Release Button D → Relay 4 deactivates (device 4 OFF)
3) Setting Interlocking mode: Turn on the second bit of the dip switch.
Operation with CC-4:
Press Button A → Relay 1 activates (device 1 ON); Other 3 relays deactivate (other 3 devices OFF)
……
Press Button D → Relay 4 activates (device 4 ON); Other 3 relays deactivate (other 3 devices OFF)
