Receiver Feature:
Wireless control, easy to install

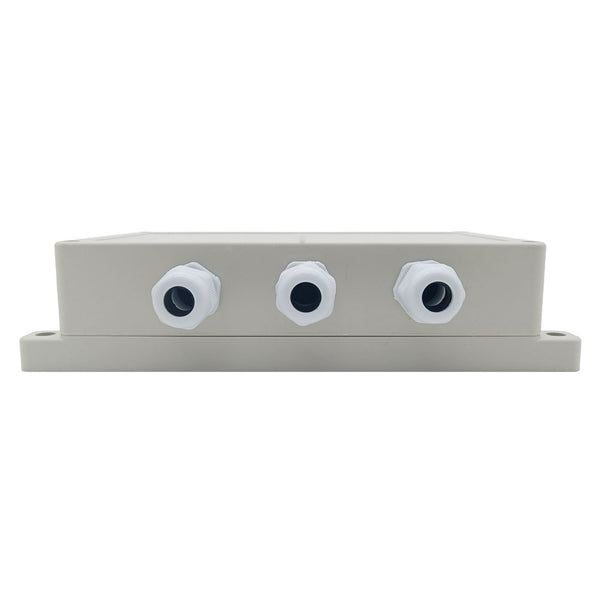

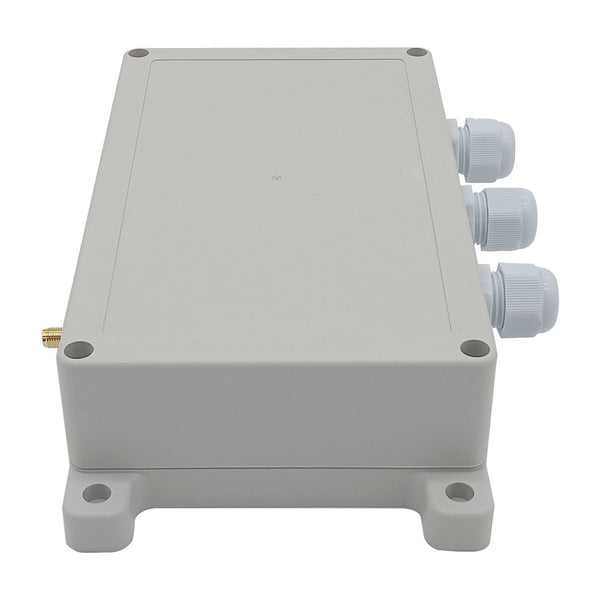

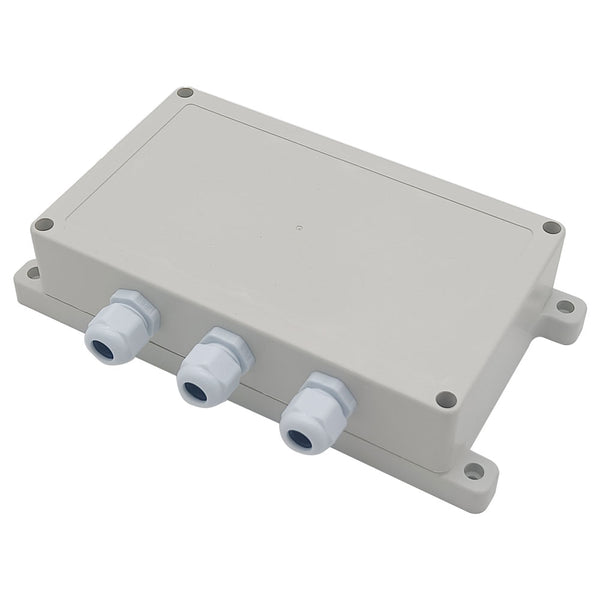

Waterproof case with waterproof connectors.
High power, each output can work at maximum 30A current.
AC power output, can be used in home automation, such as security system, remote control lights, motors, doors / locks / windows / blinds / cars, and various equipment.
The receiver has four input control terminals, you can connect external devices, sensors, or manual switches to these terminals to control the outputs of receiver.
With the external telescopic antenna, it can have a further working range.
With a transmitter (such as CB-4) to form a complete set, the distance can reach 2000m.
It also can be used in agriculture and industry automation, such as long range and high power remote control devices.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
One/several transmitters can control one/several receivers simultaneously.
If you use two or more units in the same place, you can set them with different codes.
Receiver parameters:
Model No.: S4PX-AC-ANT3
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: AC100~240V (110V/120V/220V/240V)
Working Frequency: 433MHz
Channel: 4 CH
Control Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Maximum Working Current: 30A / each channel
Static Current: ≤6mA

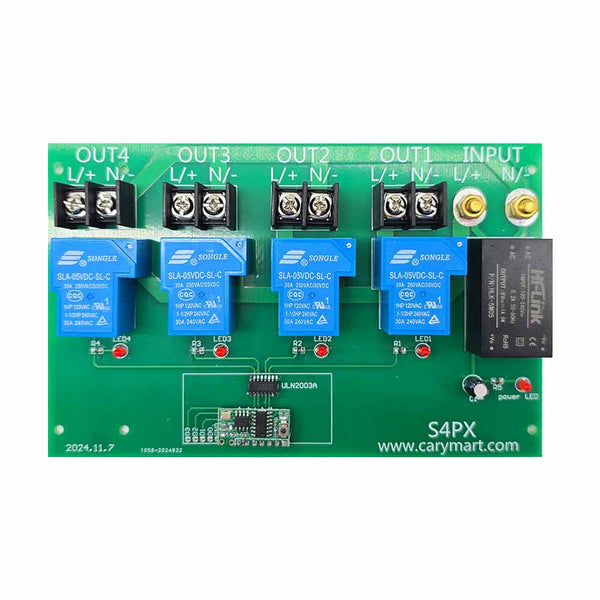

PCB size: 170mm x 109mm x 18mm

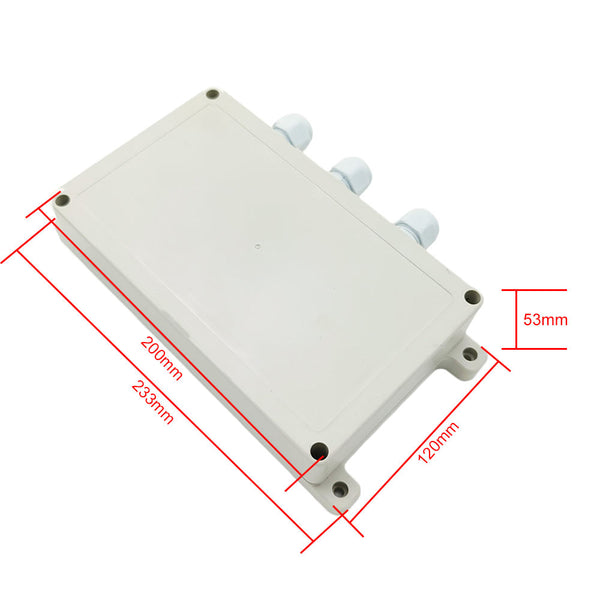

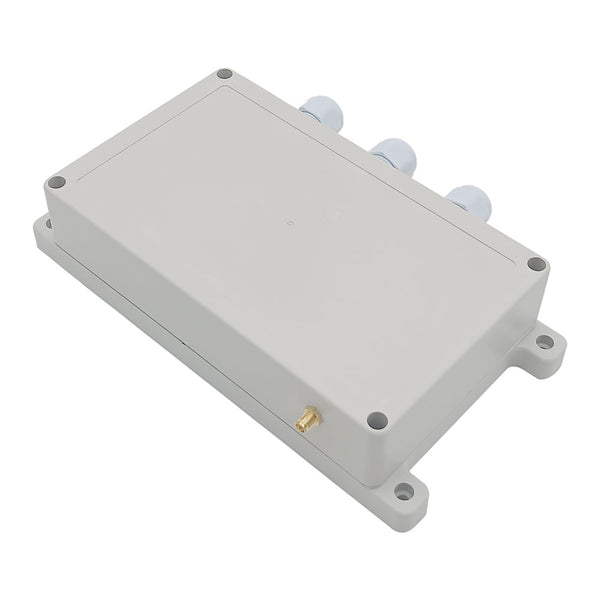

Case size:200mm x 120mm x 53mm

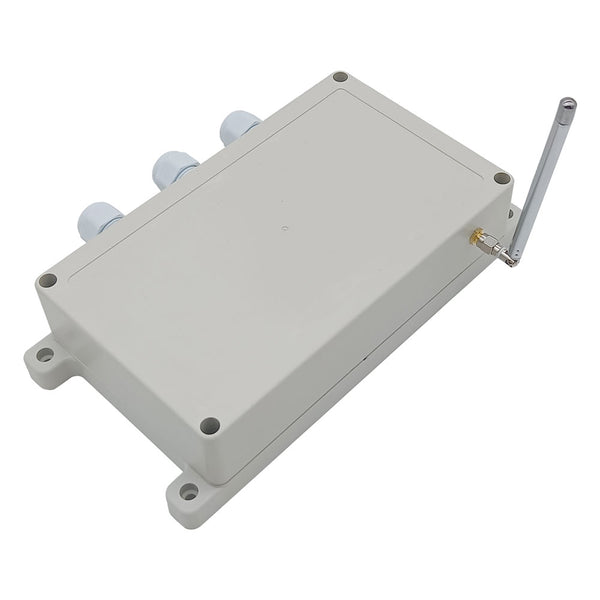

External telescopic antenna:
Length of external telescopic antenna: 108mm / 445mm (stretch)

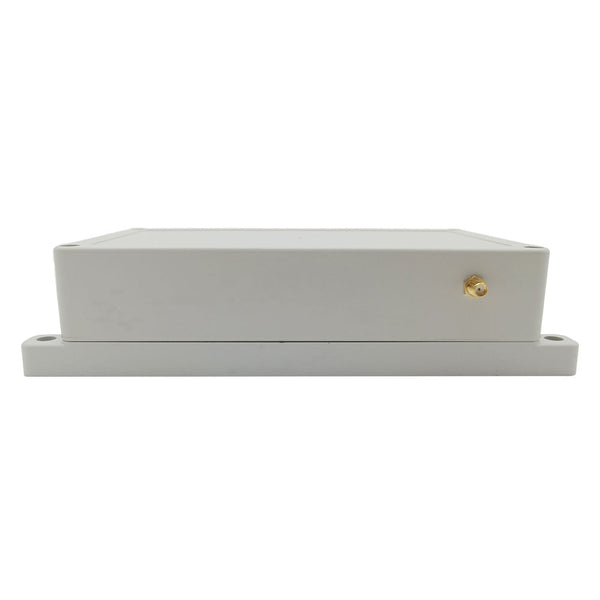

External telescopic antenna use SMA connector.
If you stretches the external telescopic antenna, it can have a further working range, which is twice as much as it used to be.

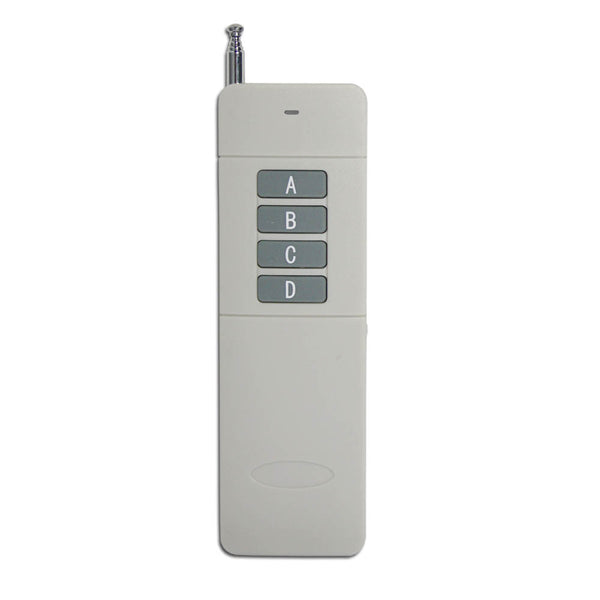

Transmitters Description:
Model No.: 0021026 (CB-4)
Button Symbol: A, B, C, D

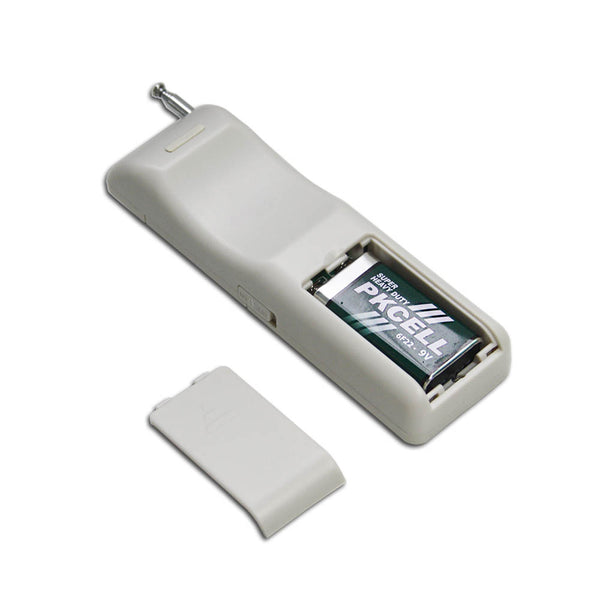

Operating Voltage: 9V (1 x 6F22 -9V battery, can be used for 12 months)
Operating Current: 30mA
Operating Frequency: 433Mhz
Encoding Chip: PT2262 / PT2264 / SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 1000m / 3000ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 135mm x 42mm x 25mm
The working range:
With a transmitter (such as CB-4) to form a complete set, the distance can reach 2000m. The distance of 2000m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 2000m.

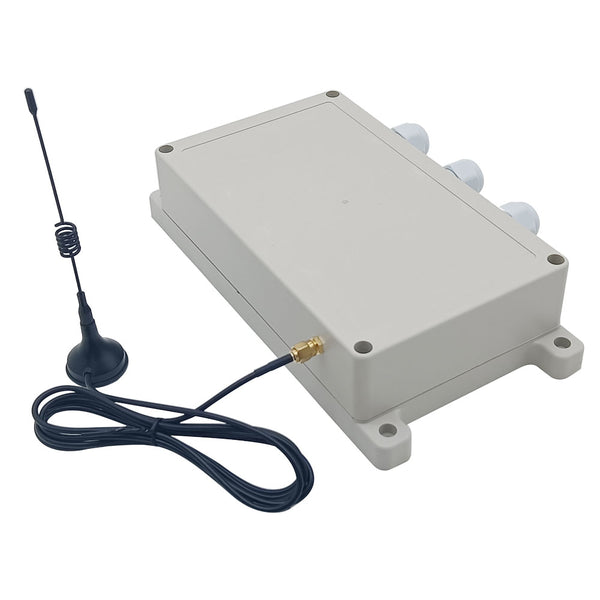

If you want to have a further working range, you can install a magnetic sucker antenna (model 0020910).
Usage (with the transmitter like CB-4):
You can use this 4 channel receiver to control 4 AC equipments.
If you want to control four AC 220V lamps, do as following:

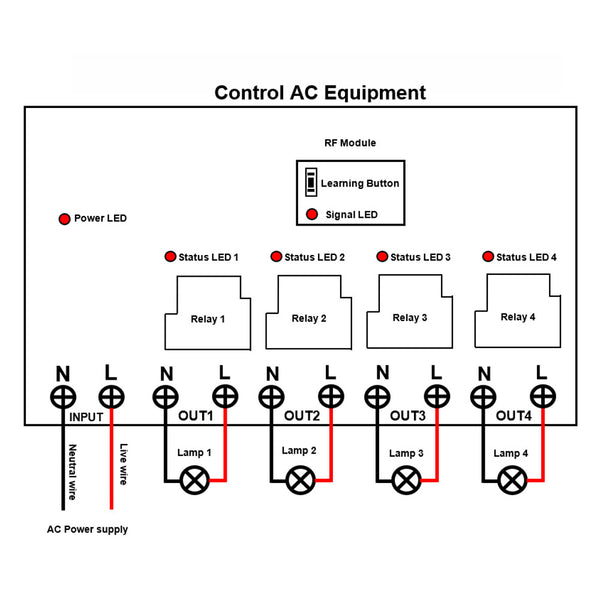

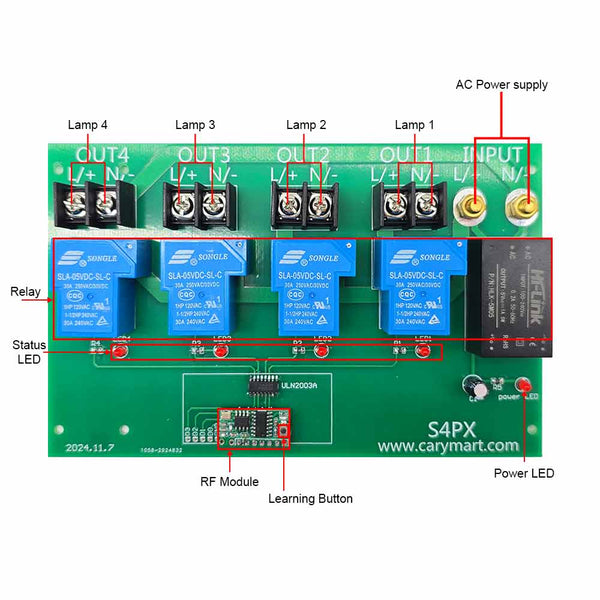

Connect AC 220V power to terminals “L” and “N“, and connect lamp 1 to terminals “L” and “N” of OUT1, connect lamp 2 to terminals “L” and “N” of OUT2, connect lamp 3 to terminals “L” and “N” of OUT3, connect lamp 4 to terminals “L” and “N” of OUT4 .
Four working modes:
Self-locking Mode: Press -> On, press again -> Off.
Momentary Mode: Press and hold -> On; Release -> Off.
Interlocking Mode: Press one button-> On; Press another button -> Off.
Momentary + Self-locking: Control mode Momentary (Channel A, B): Press and hold -> On; Release -> Off. Control mode Self-locking (Channel C, D): Press -> On; Press again -> Off.
Download the User Manual: Wireless Receiver, Remote Controller
