Package Include:
1 x Receiver: S4PX-DC-ANT3
1 x User manual
Application:
This receiver is an electric device with 4 channels DC power output, it and the transmitter form a wireless remote-control system. This system may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different DC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems. The applications are endless.
Feature:
Wireless control, easy to install.

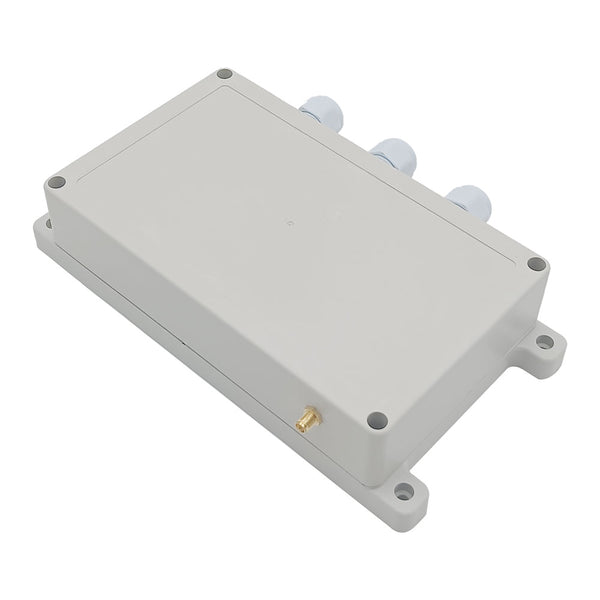

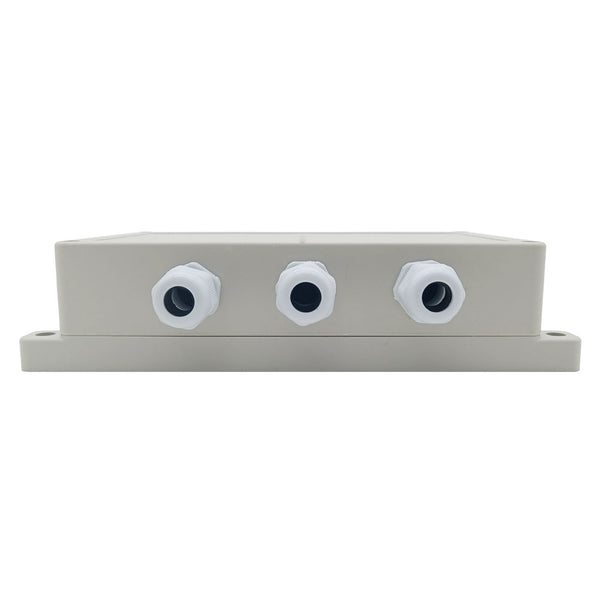

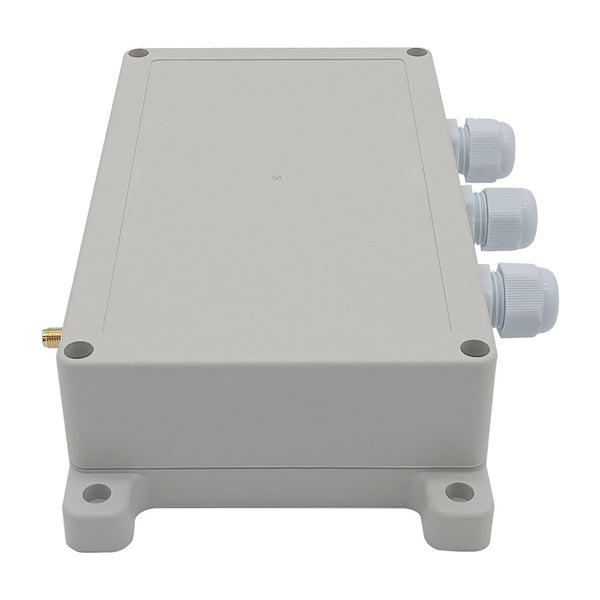

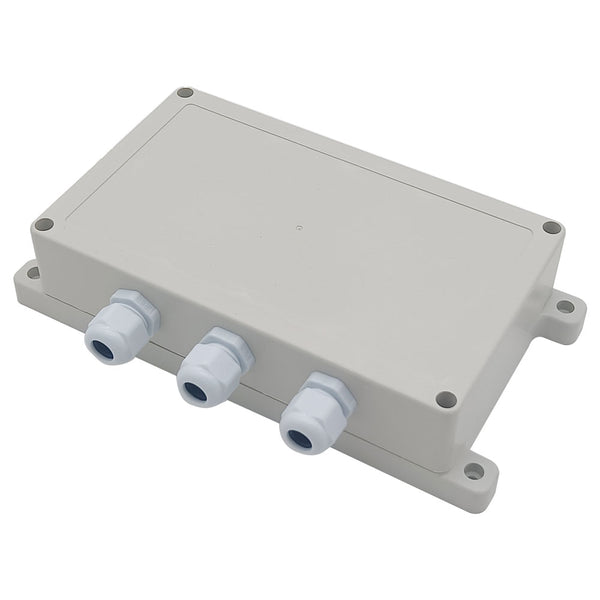

Waterproof: The receiver has waterproof case and waterproof connector; it can be installed outdoors.
DC 8~80V operating voltage range.
DC Power Output: It can control DC equipment with a voltage in the range of 8~80 VDC.
High Power: Each channel can work at maximum load current 30A.

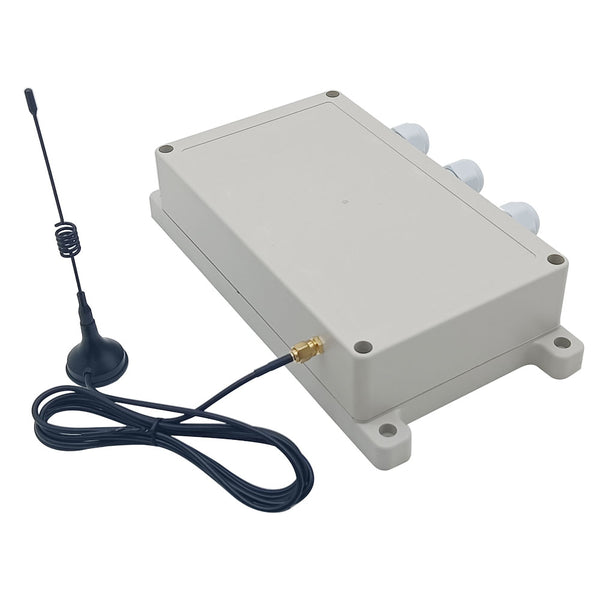

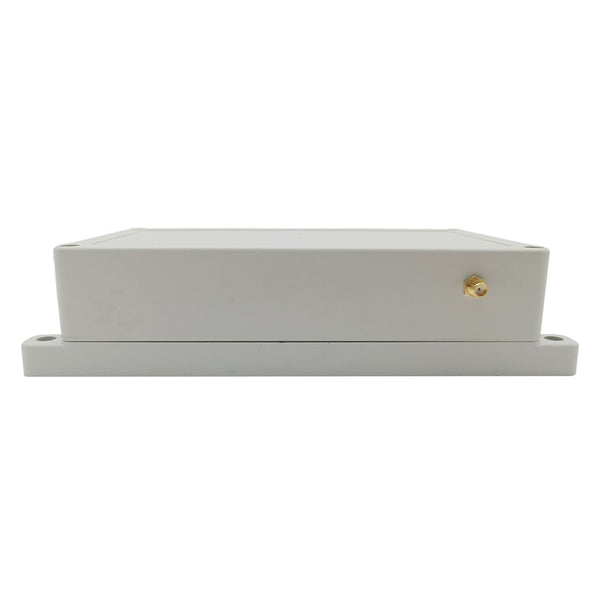

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model: S4PX-DC-ANT3
Operating Voltage: 8~80 VDC
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 4 CH
Output Type: 8~80 VDC same as input voltage
Maximum Load Current of Relay: 30A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
8 Different Control Modes: Self-locking, Momentary, Interlocking, and 5 Mixed modes
Operating Temperature: -20 °C ~ +70 °C

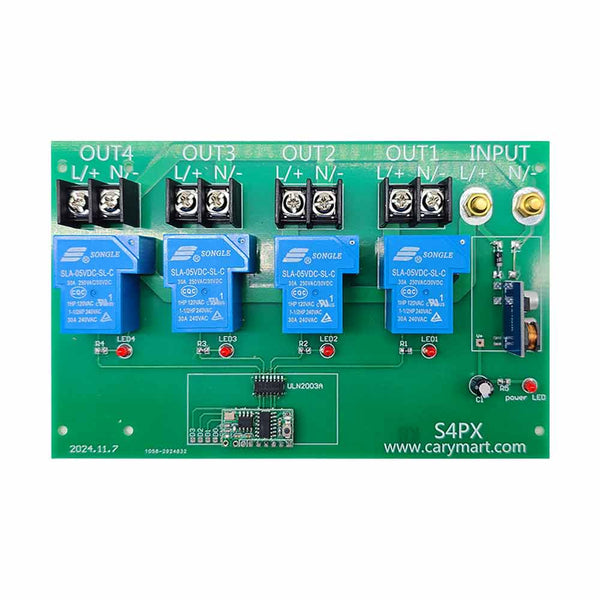

PCB size: 170 x 100 x 18 mm (6.7x 4.0 x 0.7 inches)

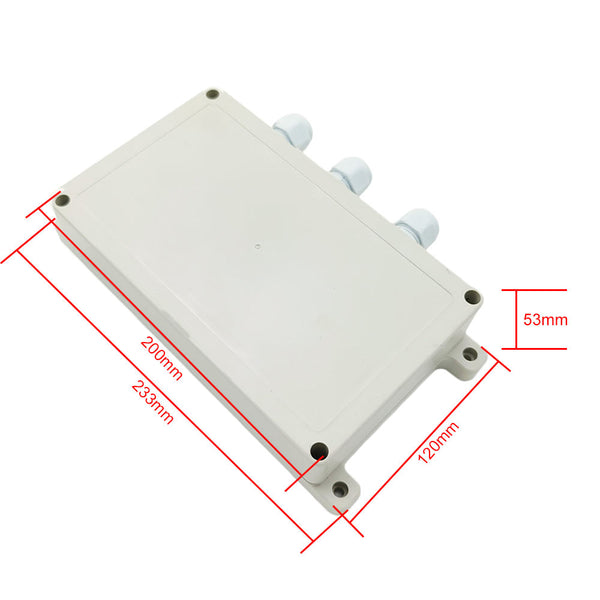

Case size: 200 x 120 x 53 mm (7.9x 4.0 x 2.0 inches)
Matching Transmitters:
The receiver can work with different transmitters, such as model CWB-4 (50M, waterproof), C-4 (100 meters / 300 feet range), CV-4 / CP-4 (500 meters / 1500 feet range) and CB-4 (1000 meters / 3000 feet range) etc.
Working Range:
With a transmitter (such as C-4) to form a complete set, the maximum working distance can reach 300 feet or 100 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no interference. But in the practice, it will be hindered by trees, walls, or other construction, and will be interfered by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-4 transmitter.
Usage:
The receiver can be used to control DC equipment with a voltage in the range of 8~80 VDC.

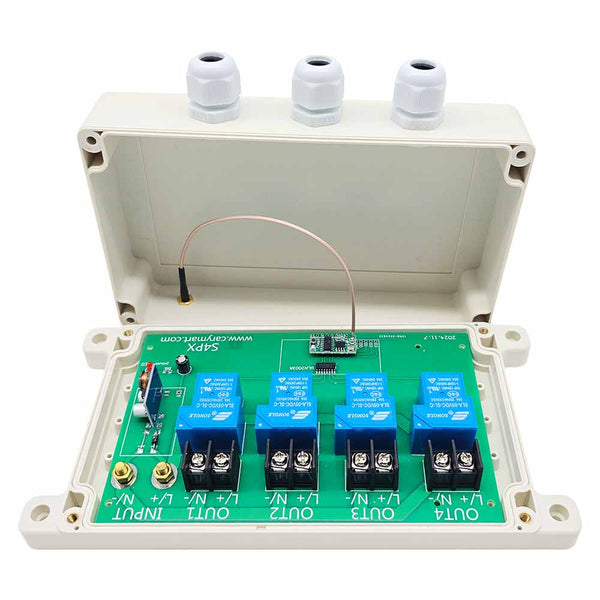

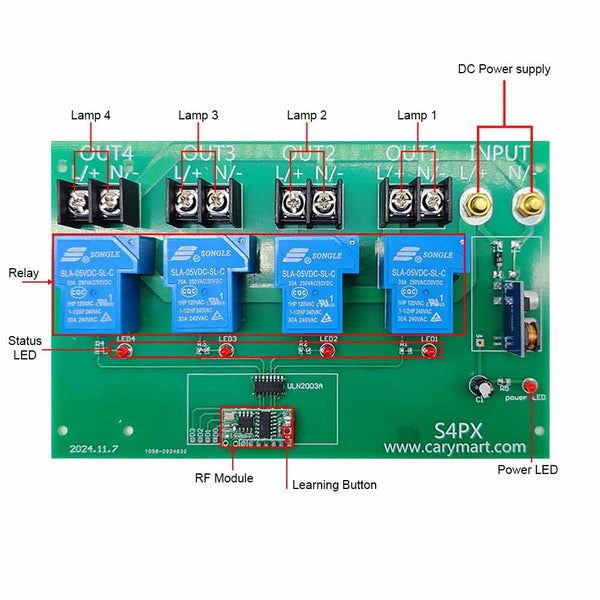

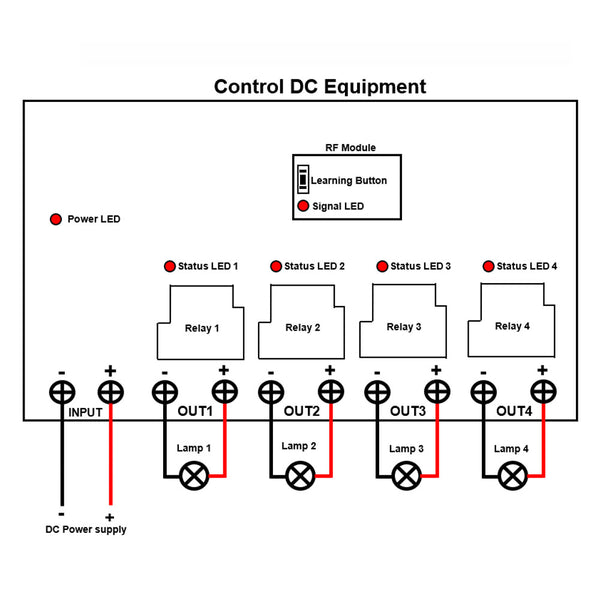

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal L/+ of INPUT, and connect the negative pole of DC power supply to terminal N/- of INPUT.
2) Connect terminal L/+ of OUT to the positive pole of DC lamp, and connect terminal N/- of OUT to the negative pole of DC lamp.
Setting different control modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter C-4:
Press and hold the button 1 on the transmitter: The terminal OUT1 of the receiver outputs DC power, and the connected lamp 1 is turned on.
Release the button 1: The terminal OUT1 of the receiver stops outputting, and the connected lamp 1 is turned off.
……
Press and hold the button 4 on the transmitter: The terminal OUT4 of the receiver outputs DC power, and the connected lamp 4 is turned on.
Release the button 4: The terminal OUT4 of the receiver stops outputting, and the connected lamp 4 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter C-4:
Press the button 1 on the transmitter: The terminal OUT1 of the receiver outputs DC power, and the connected lamp 1 is turned on.
Press the button 1 again: The terminal OUT1 of the receiver stops outputting, and the connected lamp 1 is turned off.
……
Press the button 4 on the transmitter: The terminal OUT4 of the receiver outputs DC power, and the connected lamp 4 is turned on.
Press the button 4 again: The terminal OUT4 of the receiver stops outputting, and the connected lamp 4 is turned off.
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter C-4:
Press the button 1 on the transmitter: The terminal OUT1 of the receiver outputs DC power, and the connected lamp 1 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
……
Press the button 4 on the transmitter: The terminal OUT4 of the receiver outputs DC power, and the connected lamp 4 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
4) Setting Momentary (Channel 1) + Self-locking (Channels 2~4) mode: Press the learning button in the receiver module 5 times, signal LED continuously flashes 5 times and then goes off.
5) Setting Momentary (Channels 1~3) + Self-locking (Channel 4) mode: Press the learning button in the receiver module 6 times, signal LED continuously flashes 6 times and then goes off.
6) Setting Momentary (Channels 1~2) + Self-locking (Channel 3~4) mode: Press the learning button in the receiver module 7 times, signal LED continuously flashes 7 times and then goes off.
7) Setting Momentary (Channels 1~2) + Interlocking (Channel 3~4) mode: Press the learning button in the receiver module 8 times, signal LED continuously flashes 8 times and then goes off.
8) Setting Self-locking (Channels 1~2) + Interlocking (Channel 3~4) mode: Press the learning button in the receiver module 9 times, signal LED continuously flashes 9 times and then goes off.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the factory.
1) Press the learning button once in the receiver, signal LED on the receiver flashes one time and then stays on, this indicates that the receiver enters the learning status.
2) Press button 1 on transmitter, if the signal LED flashes one time, this indicates that the pairing with button 1 is successful. Then press button 2 on transmitter, if the signal LED flashes one time, this indicates that the pairing with button 2 is successful. Then press button 3 on transmitter, if the signal LED flashes one time, this indicates that the pairing with button 3 is successful. Then press button 4 on transmitter, if the signal LED flashes one time, this indicates that the pairing with button 4 is successful.
3) Press the learning button in the receiver again for 1-2 seconds, signal LED turns off, this indicates that the receiver exits the learning status.
4) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
Notice: We have paired the transmitter to the receiver, if you don’t want the receiver to work with the transmitter, you can delete all transmitters codes stored in the receiver.
Operation: Press the learning button in the receiver 10 times and then release the learning button, signal LED flashes 10 times quickly and then goes off, this indicates that all stored codes have been deleted successfully.
