Product Description:
Model No: 0021003 (C-4)

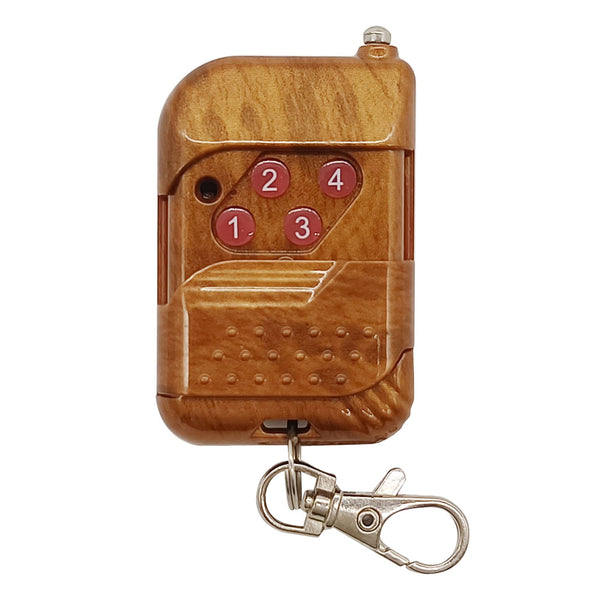

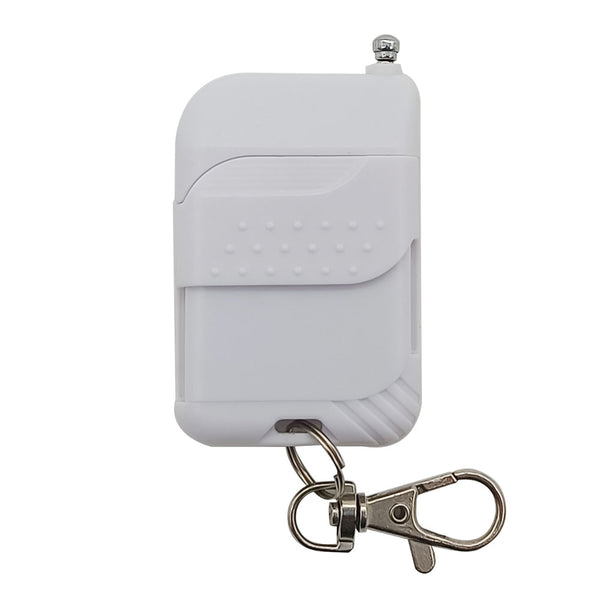

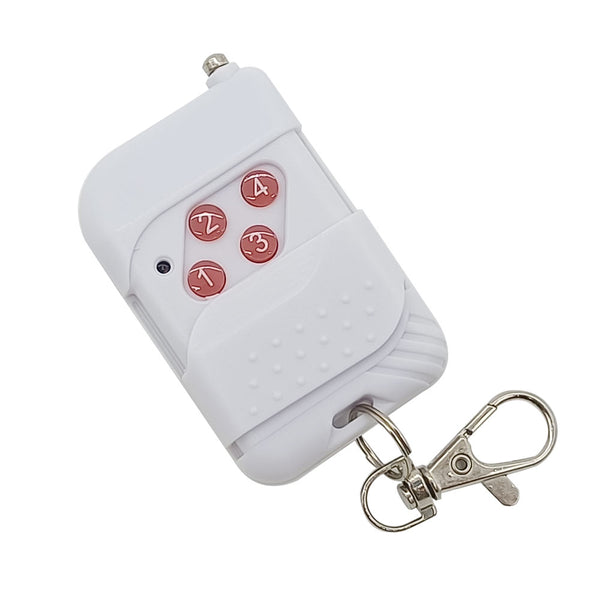

With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.

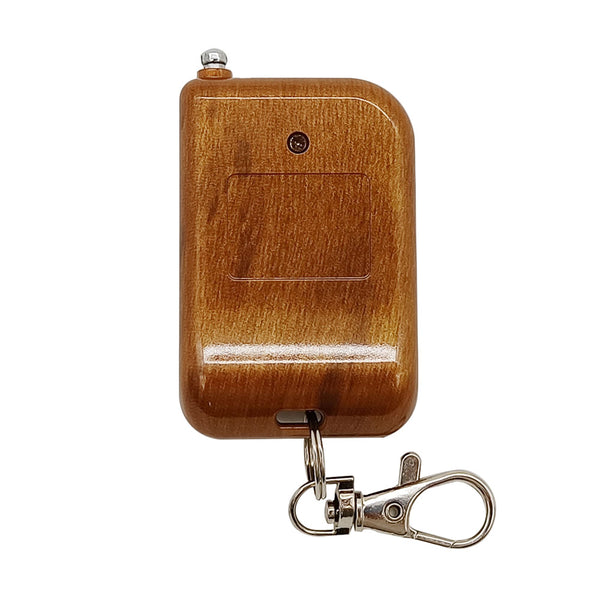

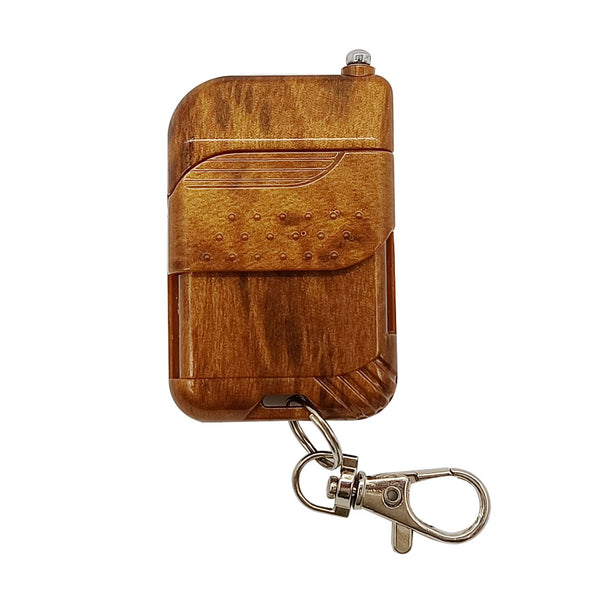

Shell Color: White / Wood color
Channel/Button: 4
Button Symbol: 1, 2, 3, 4

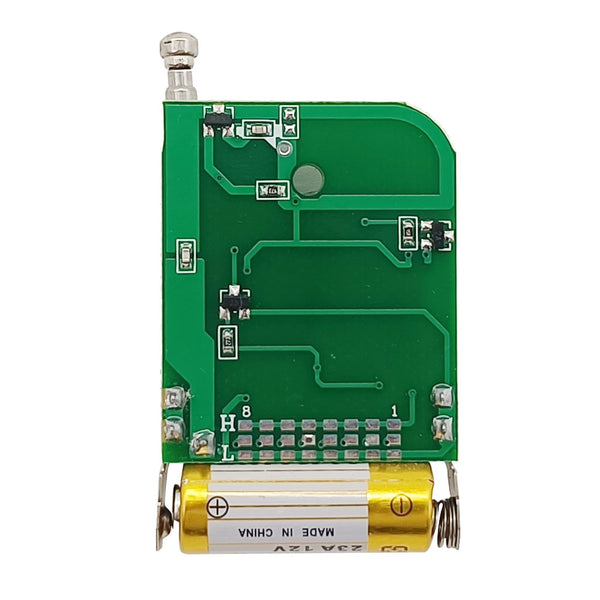

Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 6mA
Operating Frequency: 433Mhz

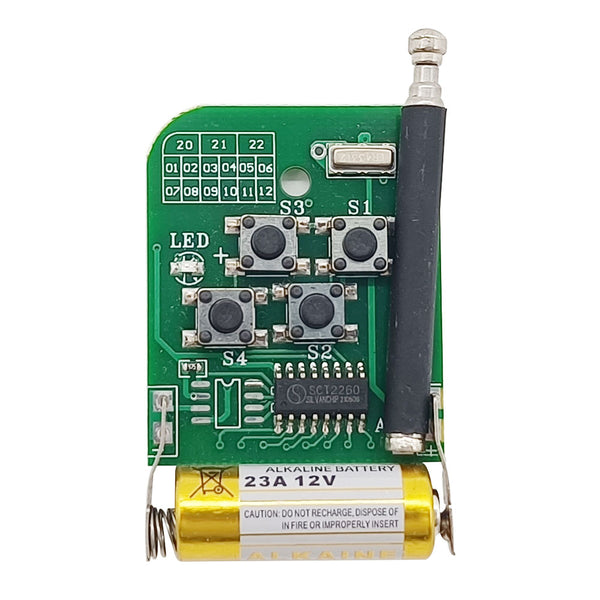

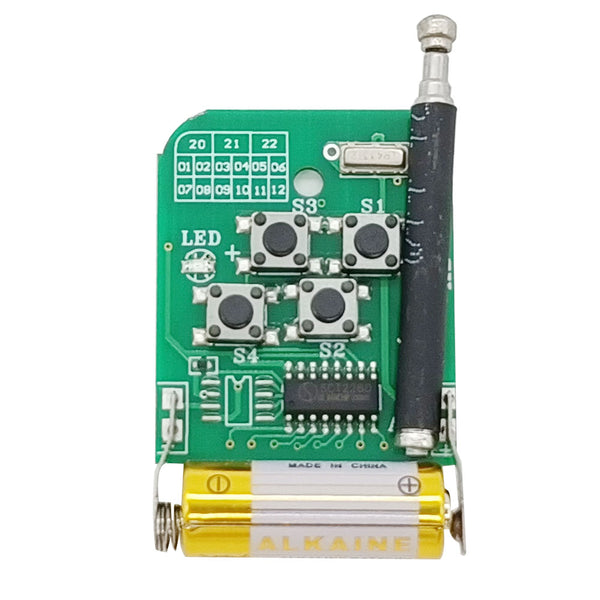

Encoding Chip: PT2262 / PT2264 / SC2262

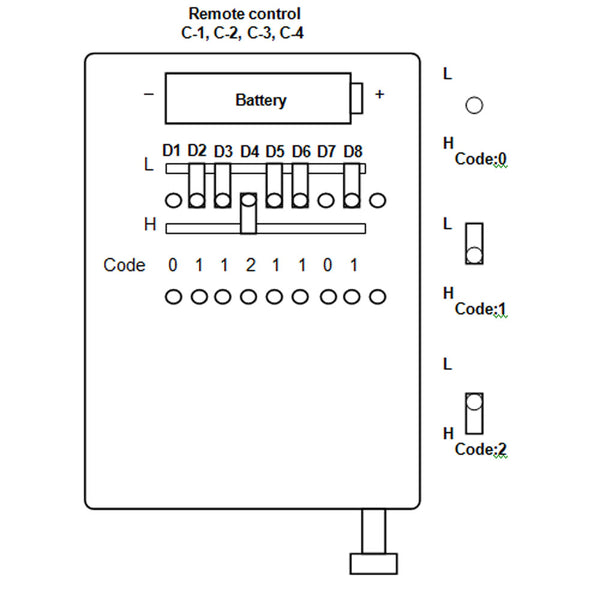

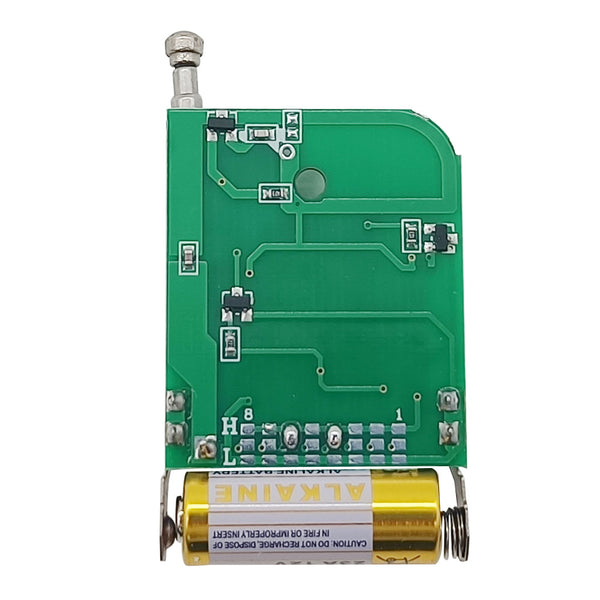

Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 100m / 300ft (theoretically)
The distance of 100m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 100m.

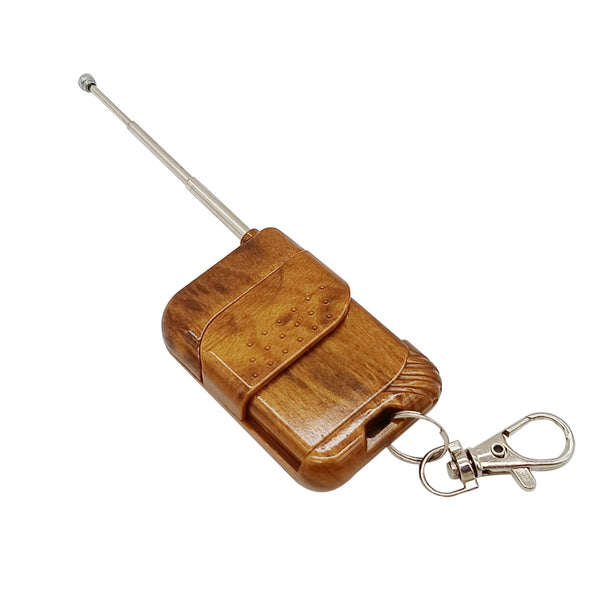

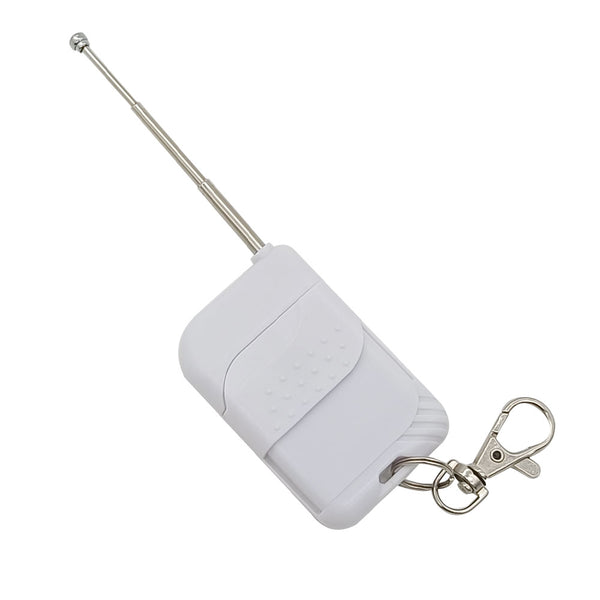

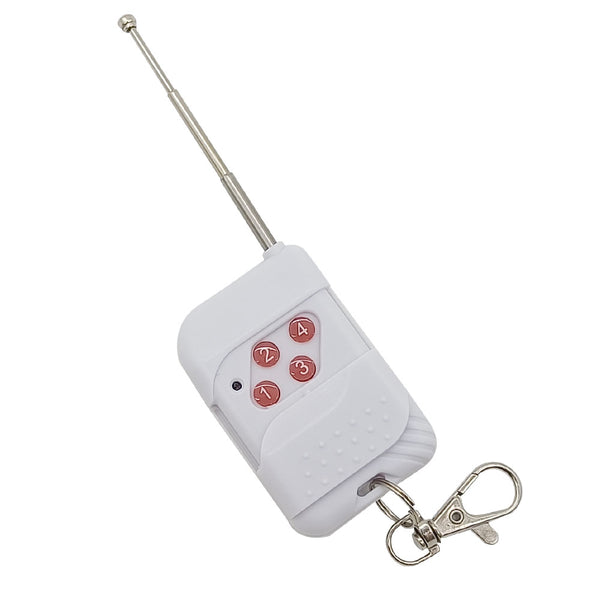

If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 58mm x 39mm x 16mm
Weight: 30g
Uses:
garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.
