Feature:
Gearhead motor
High quality
With metal cover
Built-in cooling fan
Heavy duty design
Runs in either direction by reversing power supply polarity
Benefiting from high torque and low noise, this motor is solidly constructed and ready to install in numerous applications
Specifications:
Diameter: 37mm
Shaft length: 15.5mm
Shaft diameter: 6mm

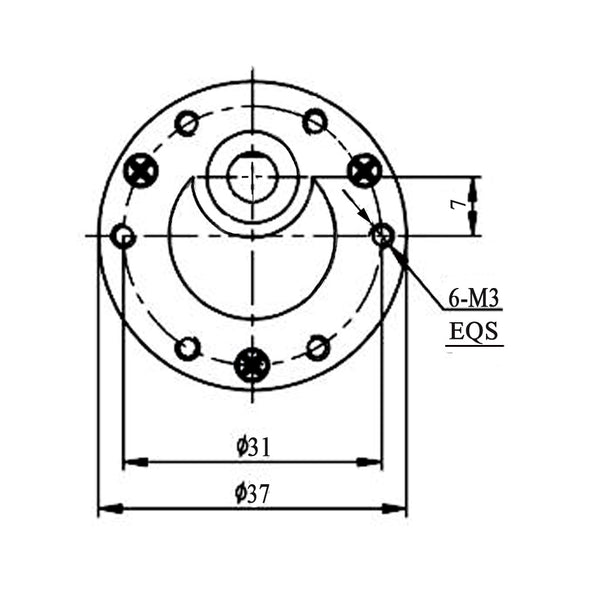

Front panel 3.0mm Screw for fixing this motor
Nominal voltage: 24V DC
Operating voltage range: 12 - 36V DC
Power: 15W
Optional no-load speed at 24V: 12RPM, 22RPM, 45RPM, 107RPM, 200RPM, 600RPM, 960RPM.
Parameters:
Application:
Mainly used for remote-controlled car, electric motorbike, ATV, Kart, robot, rolling blind and electric projector, etc.
Warning:
Do not frequently stall the motor, or else the gear of motor will be broken.
Owing to large torque and high power, the starting current of motor is relatively large, up to 6A. After starting the motor, the current will be back to normal, about 1A~2A. You should choose high power supply above 10A, or else you cannot start the motor.
Gearhead motor
High quality
With metal cover
Built-in cooling fan
Heavy duty design
Runs in either direction by reversing power supply polarity
Benefiting from high torque and low noise, this motor is solidly constructed and ready to install in numerous applications
Specifications:
Diameter: 37mm
Shaft length: 15.5mm
Shaft diameter: 6mm
Front panel 3.0mm Screw for fixing this motor
Nominal voltage: 24V DC
Operating voltage range: 12 - 36V DC
Power: 15W
Optional no-load speed at 24V: 12RPM, 22RPM, 45RPM, 107RPM, 200RPM, 600RPM, 960RPM.
Parameters:
| No-load speed at 24V (RPM) | 12 | 22 | 45 | 107 | 200 | 600 | 960 |
| Load speed (RPM) | 9 | 17 | 36 | 85 | 160 | 480 | 672 |

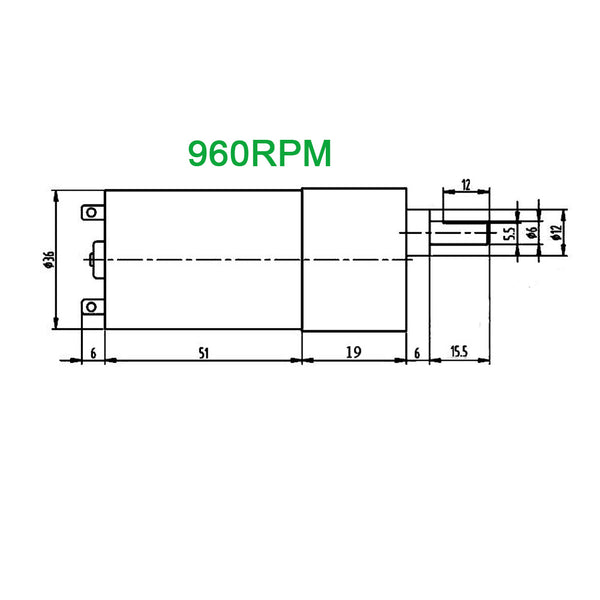

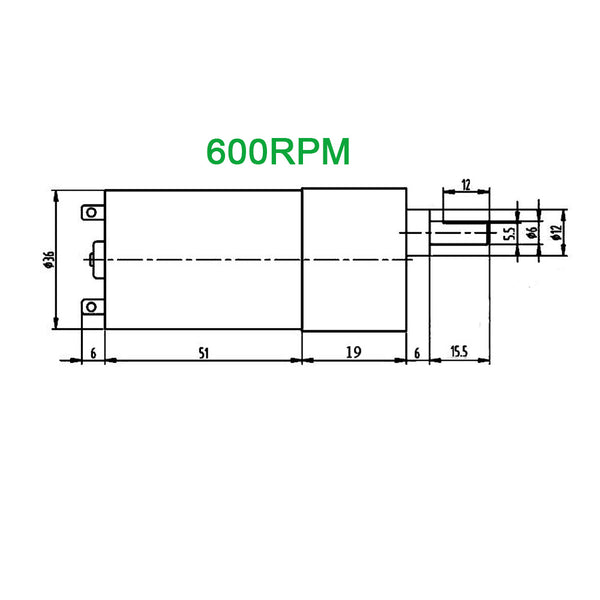

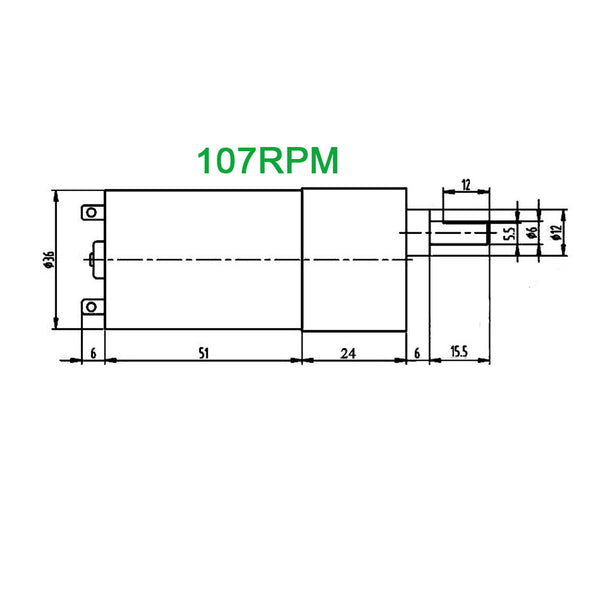

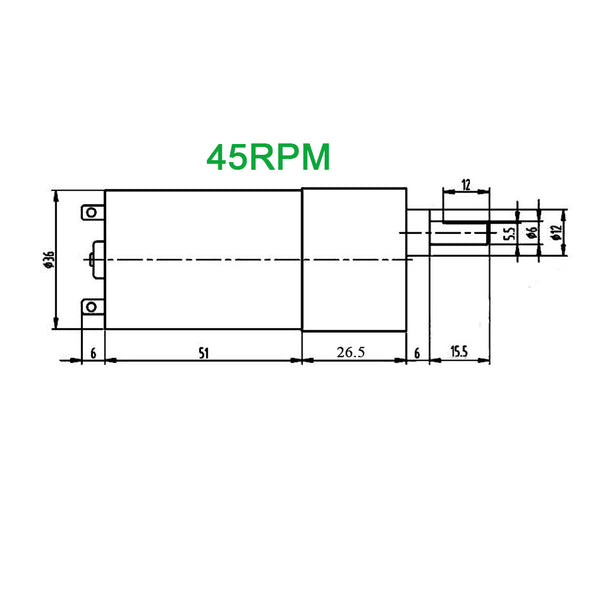

| Total length (including shaft) (MM) | 107.5 | 105 | 105 | 102.5 | 100.5 | 97.5 | 97.5 |
| No load current (A) | 135 | 135 | 135 | 135 | 135 | 140 | 140 |
| Load current (A) | 0.35 | 0.35 | 0.35 | 0.35 | 0.4 | 0.5 | 0.5 |
| Operating torque (kg.cm) | 60 | 40 | 19 | 8 | 4.5 | 1.2 | 0.8 |
| Stall torque (kg.cm) | Banned | Banned | 76 | 35 | 18 | 4.8 | 4 |
| Stall current (A) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Gear ratio | 1:506 | 1:270 | 1:131 | 1:56 | 1:30 | 1:10 | 1:6.25 |
Application:
Mainly used for remote-controlled car, electric motorbike, ATV, Kart, robot, rolling blind and electric projector, etc.
Warning:
Do not frequently stall the motor, or else the gear of motor will be broken.
Owing to large torque and high power, the starting current of motor is relatively large, up to 6A. After starting the motor, the current will be back to normal, about 1A~2A. You should choose high power supply above 10A, or else you cannot start the motor.
