Feature:
Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Relay Output: This receiver is relay output, it can be used to operate both DC and AC equipments. The terminal is NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to it.
With wired control terminals: You can connect sensors, limit switches, manual switches or external devices to control the receiver.
With the external antenna, it can have a further working range.
Adjustable delay time: 0 seconds ~ 99 hours
Design with low-power and high-speed CMOS technology.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

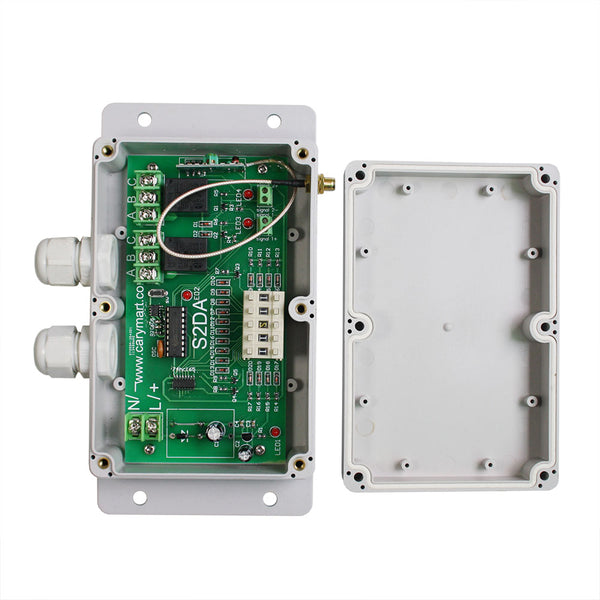

Receiver:
Model No.: S2DA-DC06-ANT3/ S2DA-DC09-ANT3 / S2DA-DC12-ANT3 / S2DA-DC24-ANT3
Power Supply (Operating Voltage): DC6V (S2DA-DC06-ANT3), DC9V±1V (S2DA-DC09-ANT3), DC12V±1V (S2DA-DC12-ANT3), DC24V±1V (S2DA-DC24-ANT3)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Transmitting Frequency: 433MHz
Channel: 1 CH
Control Mode: Delay (Press -> ON; Then OFF after the delay time)
Adjustable delay time: 0 seconds ~ 99 hours
Maximum Working Current: 10A / each channel
Static Current: ≤6mA
PCB size: 140mm x 73mm x 18mm
Case size: 192mm x 100mm x 45mm
Work with Fixed code transmitters.

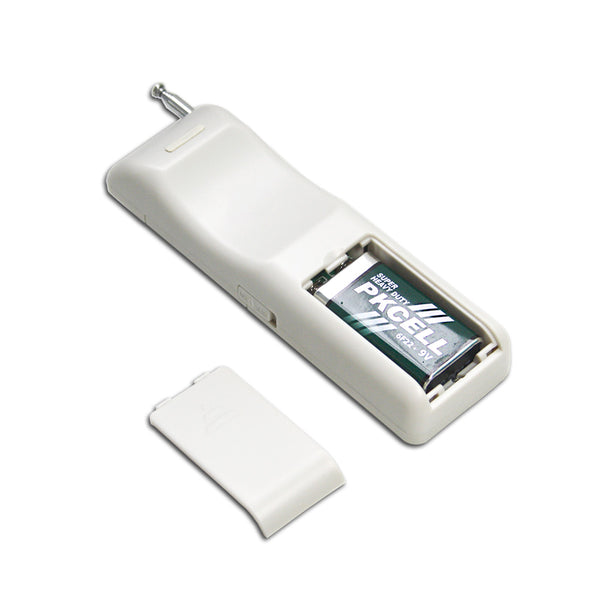

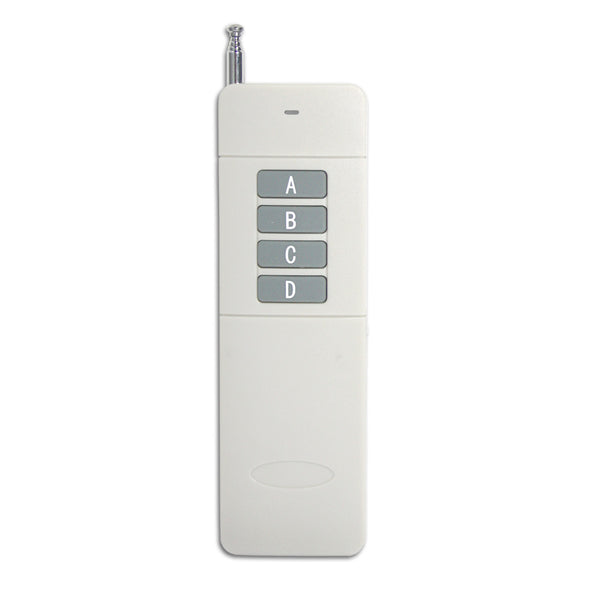

transmitter:
Model No.: 0021026 (CB-4)
Shell Color: Grey
Channel/Button: 4
Button Symbol: A, B, C, D
Operating Voltage: 9V (1 x 6F22 -9V battery, can be used for 12 months)
Operating Current: 30mA
Operating Frequency: 433Mhz
Encoding Chip: PT2262 / PT2264 / SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 1000m / 3000ft (theoretically)
The distance of 1000m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 1000m.
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 135mm x 42mm x 25mm
Weight: 95g
Uses: garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.

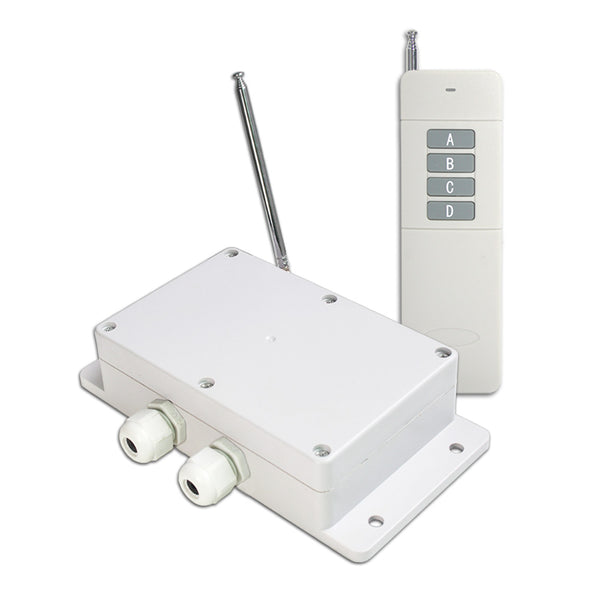

Matching Transmitters:
The receiver can work with different transmitters, such as model C-2 / C-4 (100M), CWB-2 / CWB-4 (50M, waterproof), CP-2 / CP-4/CV-4 (500M), or CB-2 / CB-4 (1000M), CBW-2 / CBW-4 (1000M, waterproof) etc.
Working Range:
Super long range, with a transmitter (such as CB-4) to form a complete set, the maximum working distance can reach 2000M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.

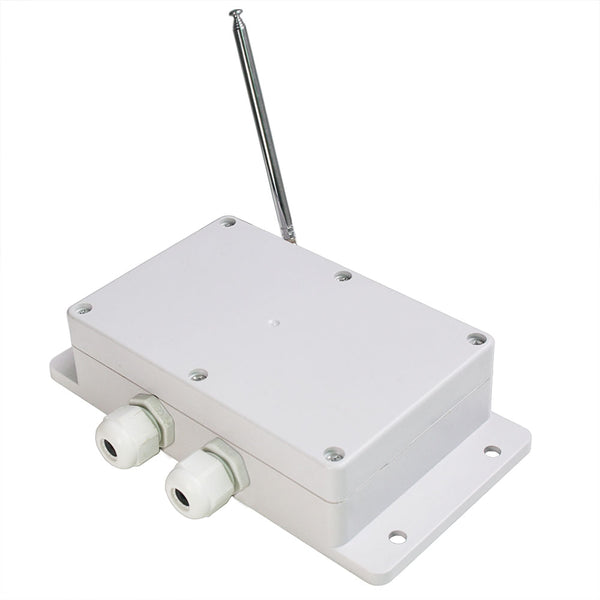

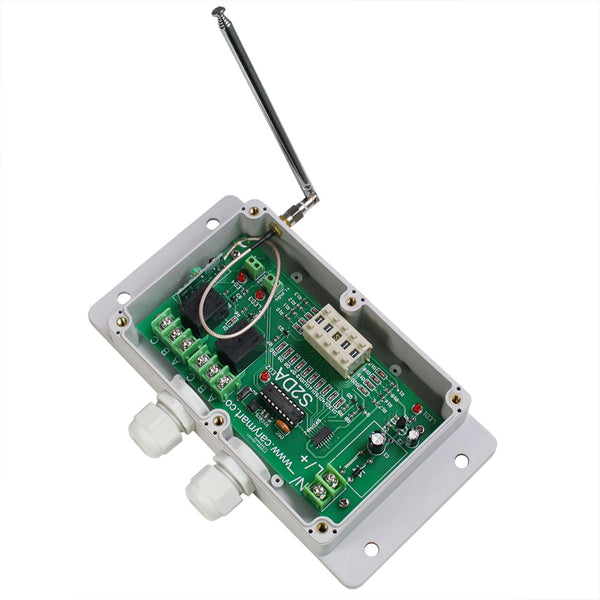

External telescopic antenna:
Length of external telescopic antenna: 108mm / 445mm (stretch)
External telescopic antenna use SMA connector.
If you stretches the external telescopic antenna, it can have a further working range.
Usage:
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.
Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals A and B are Normally Open; Terminals A and C are Normally Closed.
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +”, and connect the negative pole of DC power supply to terminal “N / -”.
2) Connect terminal C to the positive pole of DC power supply, connect terminal B to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.
If you want to control an AC 220V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +”, and connect the negative pole of DC power supply to terminal “N / -”.
2) Connect terminal C to the live wire of AC power supply, connect terminal B to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.
Press button 1: Turn on relay 1 (connect B and C, disconnect A and B), the lamp 1 is on.
After delay time: Turn off relay 1 by itself (disconnect B and C, connect A and B), the lamp 1 is off.
Press button 3: Turn off relay 1 immediately, no need to wait for delay time.
Press button 2: Turn on relay 2 (connect B and C, disconnect A and B), the lamp 2 is on.
After delay time: Turn off relay 2 by itself (disconnect B and C, connect A and B), the lamp 2 is off.
Press button 4: Turn off relay 2 immediately, no need to wait for delay time.
Press buttons of “＋” and “－” on the timer, adjust delay time from 0 second to 99 hours. Two buttons of Timer 1 adjust delay time of relay 1; two buttons of Timer 2 adjust delay time of relay 2. “H” is Hour, “M” is Minute, and “S” is Second.
For example, if you set “2 0 M 0 5” on Timer, it means the delay time on Timer 1 is 5 minutes; the delay time on Timer 2 is 20 minutes.

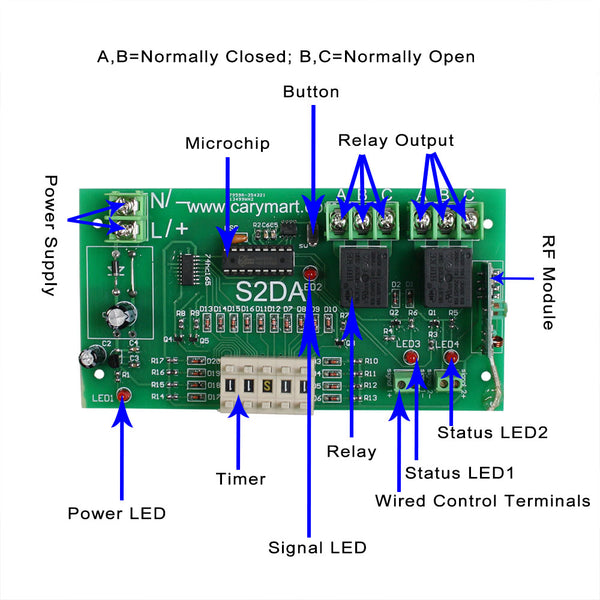

Wired control terminals:
The receiver has manual control terminals, you can connect external devices, sensors, or manual switches to control the receiver.
1) Signal input:
You can connect external devices (with low level output signal) to manual terminals “Signal 1-”, “Signal 1+”, “Signal 2-” and “Signal 2+”, then the external device’s output signal can control the receiver.
When the external device outputs low level signal to manual terminal “Signal 1-” and terminal “Signal 1+”, turns on the relay1 connect B and C, disconnect A and B), the lamp 1 is on.
When the external device stops to output signal: Turn off relay 1 (disconnect B and C, connect A and B), the lamp 1 is off.
When the external device outputs low level signal to manual terminal “Signal 2-” and terminal “Signal 2+”, turns on the relay 2 (connect B and C, disconnect A and B), the lamp 2 is on.
When the external device stops to output signal: Turn off relay 2 (disconnect B and C, connect A and B), the lamp 2 is off.
2) The manual switches:
You can connect manual switch to terminals “Signal 1-”,“Signal 1+”,“Signal 2-” and “Signal 2+”, and then you can use this manual switch to control the receiver.
When connect terminals “Signal 1-” and “Signal 1+”, turns on the relay 1 (connect B and C, disconnect A and B), the lamp 1 is on.
And when disconnect terminals “Signal 1-” and “Signal 1+”, turns off the relay 1 (disconnect B and C, connect A and B), the lamp 1 is off.
When connect terminals “Signal 2-” and “Signal 2+”, turns on the relay 2 (connect B and C, disconnect A and B), the lamp 2 is on.
And when disconnect terminals “Signal 2-” and “Signal 2+”, turns off the relay 2 (disconnect B and C, connect A and B), the lamp 2 is off.
Package Include:
1 x Receiver: S2DA-DC09-ANT3 / S2DA-DC12-ANT3 / S2DA-DC24-ANT3 (2 Channel / Delay Control Mode)
1 x Transmitter: CB-4
1 x User manual
Download the User Manual:Wireless Receiver, Remote Controller
