The DC motor is a machine that transforms electric energy into mechanical energy in form of rotation. It can rotate forward or reverse, and you can exchange DC motor's two wires to change the rotating direction of motor.
Application:
Mainly used for remote-controlled car, toy car, miniature DC pump, electric motorbike, ATV, Kart, robot, rolling blind and electric projector etc.
Feature:
Gearhead motor
High quality
With metal cover
Built-in cooling fan
Heavy duty design
Runs in either direction by reversing power supply polarity
Benefiting from high torque and low noise, this motor is solidly constructed and ready to install in numerous applications.
Specifications:
Nominal voltage: 6V DC
Operating voltage range: 3 - 9V DC

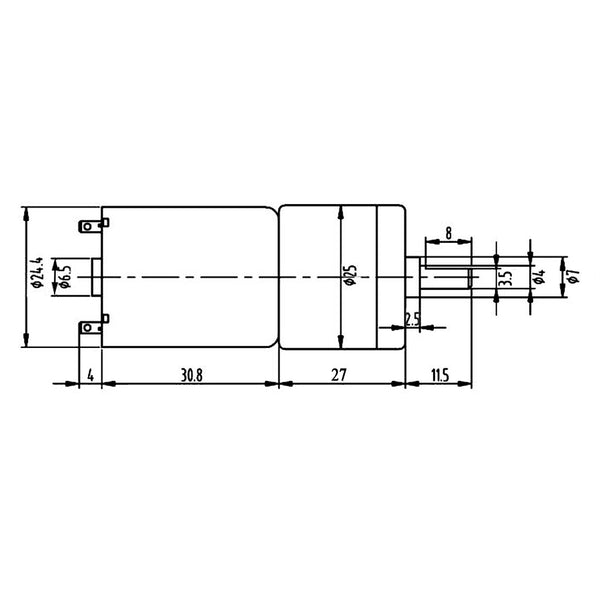

Diameter: 25mm
Length (excluding shaft): 57.8mm
Total length: 73.3mm
Shaft length: 11.5mm
Shaft diameter: 4mm

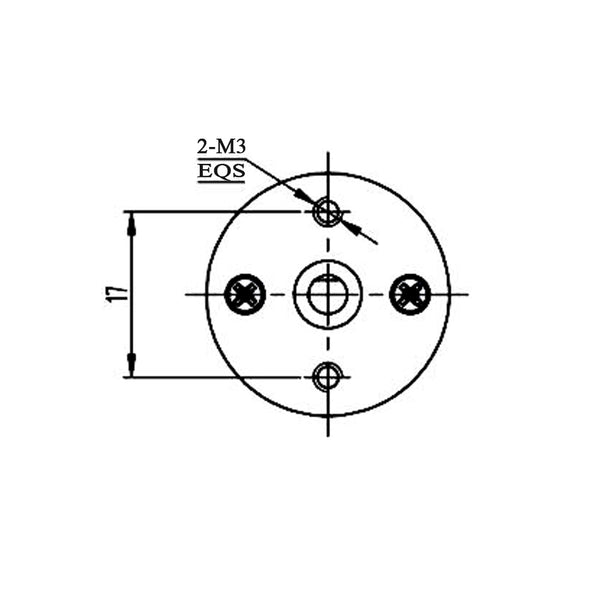

Front panel 3.0mm Screw for fixing this motor
Optional no-load speed at 6V: 12RPM, 26RPM, 58RPM, 133RPM, 281RPM, 646RPM, 1363RPM.
Application:
Mainly used for remote-controlled car, toy car, miniature DC pump, electric motorbike, ATV, Kart, robot, rolling blind and electric projector etc.
Feature:
Gearhead motor
High quality
With metal cover
Built-in cooling fan
Heavy duty design
Runs in either direction by reversing power supply polarity
Benefiting from high torque and low noise, this motor is solidly constructed and ready to install in numerous applications.
Specifications:
Nominal voltage: 6V DC
Operating voltage range: 3 - 9V DC
Diameter: 25mm
Length (excluding shaft): 57.8mm
Total length: 73.3mm
Shaft length: 11.5mm
Shaft diameter: 4mm
Front panel 3.0mm Screw for fixing this motor
Optional no-load speed at 6V: 12RPM, 26RPM, 58RPM, 133RPM, 281RPM, 646RPM, 1363RPM.
| No-load speed at 6V | 12 RPM | 26 RPM | 58 RPM | 133 RPM | 281 RPM | 646 RPM | 1363 RPM |
| No-load current (MA) | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Load speed (RPM) | 10 | 20 | 46 | 113 | 238 | 516 | 1090 |
| Load current (MA) | 280 | 280 | 300 | 300 | 300 | 300 | 300 |
| Operating torque (kg.cm) | 10 | 5 | 3 | 1.1 | 0.5 | 0.23 | 0.1 |
| Stall torque (kg.cm) | Banned | 35 | 15 | 6 | 4 | 1.5 | 0.8 |
| Stall current (MA) | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| Gear ratio | 1:500 | 1:226 | 1:103 | 1:45 | 1:21.3 | 1:9.28 | 1:4.4 |
