Package Include:
1 x Receiver: S2X-AC-ANT3
1 x Transmitter: HR-2
1 x User manual
Application:
This wireless RF switch or radio receiver is an electric device with 2 channels AC power output, it and the transmitter form a remote control kit.
This kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can long range remote control equipment on land, water and air, such as remote control lamp, light, motor, fan, pump, electric solenoid valve, window blinds, garage door, and business signs. The applications are endless.
Feature:
Wireless remote control, easy to install.

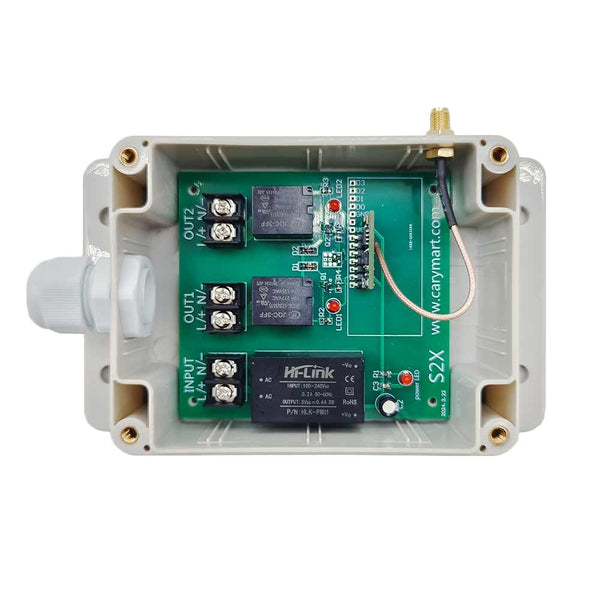

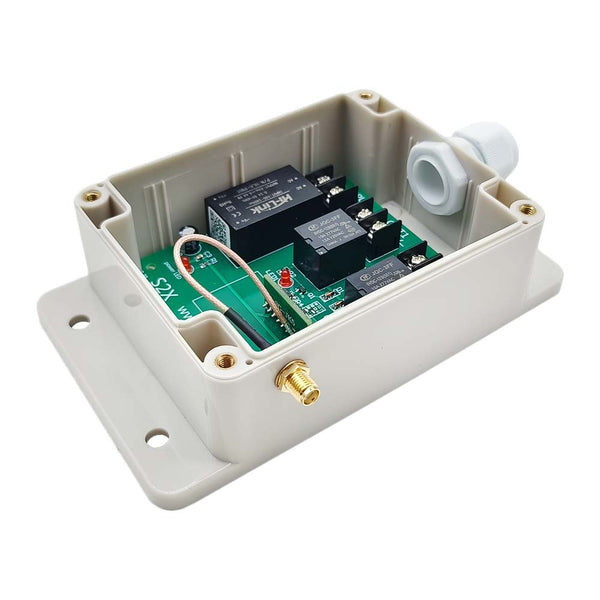

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc, and 220V AC (200V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

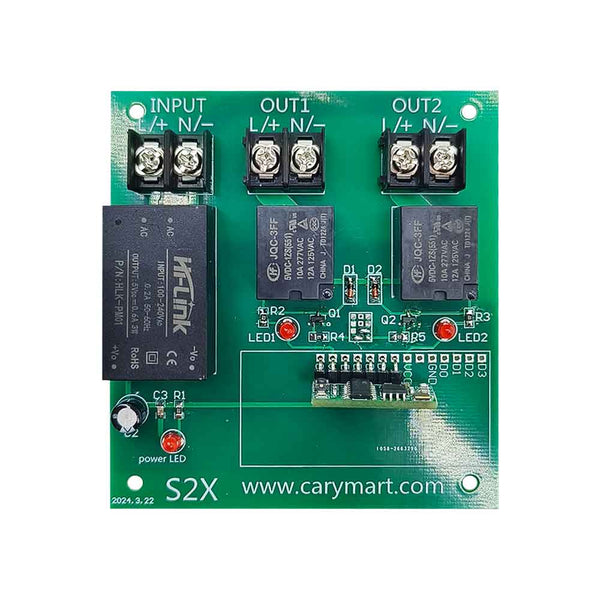

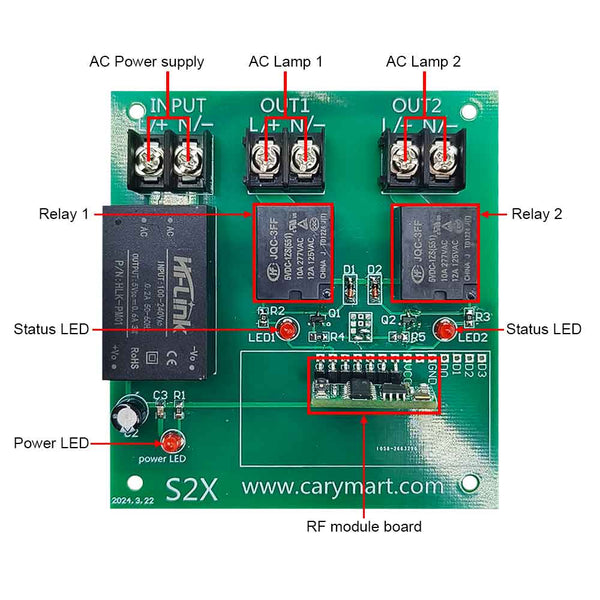

Receiver Parameters:
Model No.: S2X-AC-ANT3
Operating Voltage: 100~240VAC (110V/120V/220V/240V)
Output Type: 100~240VAC (110V/120V/220V/240V)
Channel: 2 Way
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 10A / each channel
3 Control modes: Self-locking, Momentary, and Interlocking
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)
Transmitter Parameters:

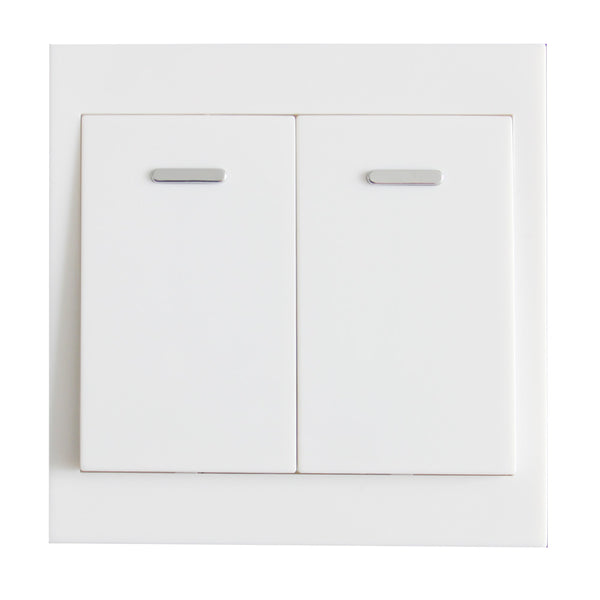

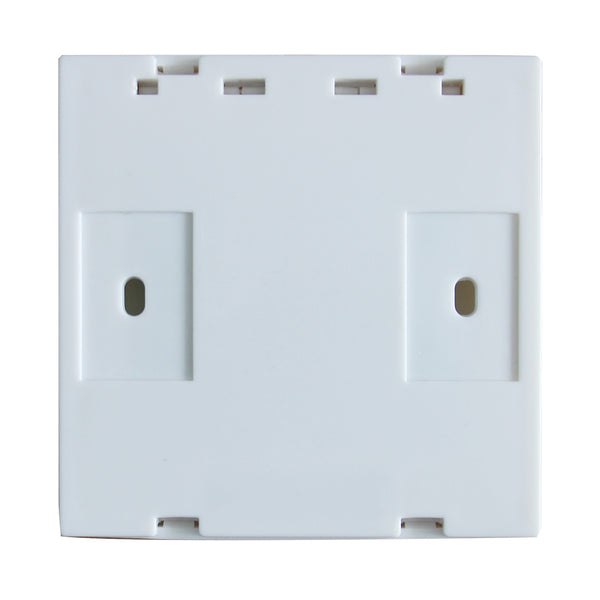

Model No.: 0021081 (HR-2)

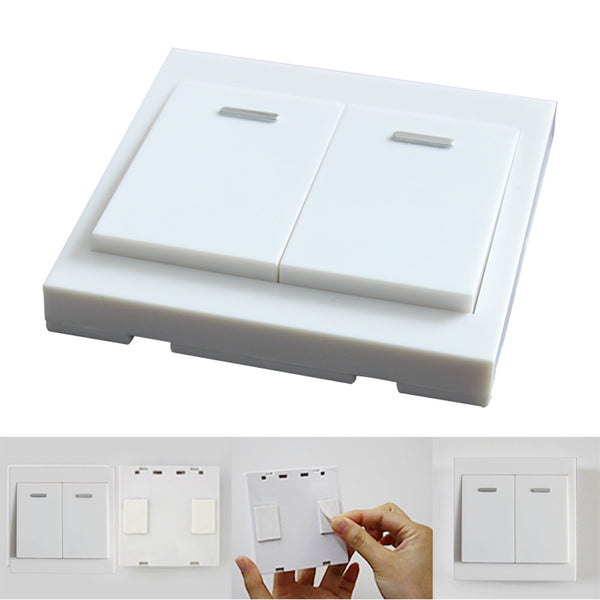

Wall Mounted Switch
Channel/Button: 2
Button Symbol: no symbol
Operating Voltage: 12V (1 x 27A -12V battery, can be used for 12 months)
Operating Current: 4mA
Operating Frequency: 433Mhz
Encoding Chip: EV1527
Transmitting Distance: 50m / 150ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 86mm x 86mm x 16mm
Matching Transmitters:
The receiver can work with different transmitters, such as model C-2 (100 meters / 300 feet range), CP-2 (500 meters / 1500 feet range), CD-2 (Industrial, 1000 meters / 3000 feet range) , or CB-2 (1000 meters / 3000 feet range) etc.
Working Range:
With a transmitter (such as HR-2) to form a complete set, the maximum working distance can reach 50 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
IIf you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-2 transmitter.
Usage:

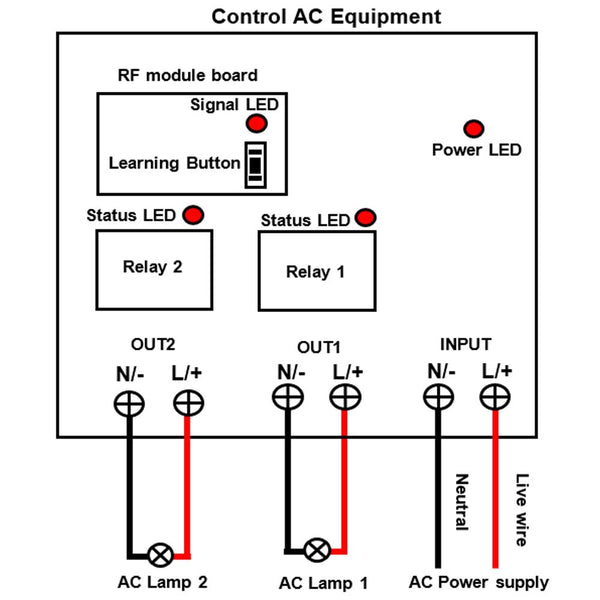

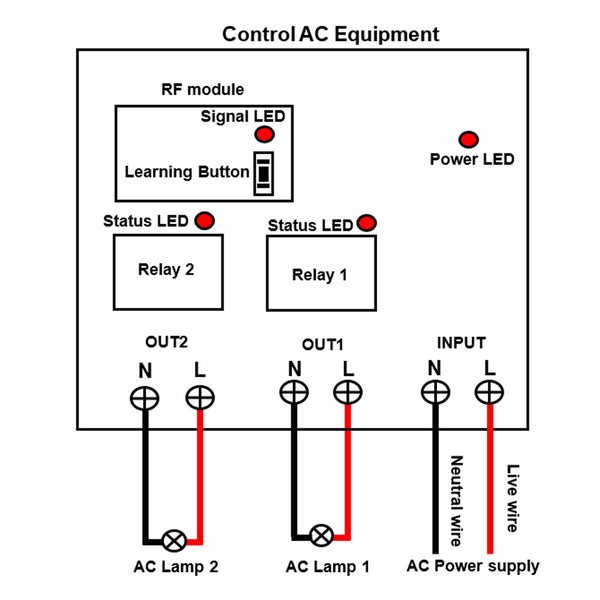

The receiver can be used to control AC 110~240V equipments.
Setting different control modes:
1) Setting Self-locking mode (working with transmitter HR-2): Press and hold the button of receiver until signal LED flashes 3 times, then release button.
Press the left button of the transmitter: The terminals “OUT1” of the receiver outputs AC power, and the connected light 1 is turned on.
Press the left button of the transmitter again: The terminals “OUT1” of the receiver stops outputting, and the connected light 1 is turned off.
Press the right button of the transmitter: The terminals “OUT2” of the receiver outputs AC power, and the connected light 2 is turned on.
Press the right button of the transmitter again: The terminals “OUT2” of the receiver stops outputting, and the connected light 2 is turned off.
2) Setting Momentary mode (working with transmitter HR-2): Press and hold the button of receiver until signal LED flashes 2 times, then release button.
Press and hold the left button of the transmitter: The terminals “OUT1” of the receiver outputs AC power, and the connected light 1 is turned on.
Release the left button of the transmitter: The terminals “OUT1” of the receiver stops outputting, and the connected light 1 is turned off.
Press and hold the right button of the transmitter: The terminals “OUT2” of the receiver outputs AC power, and the connected light 2 is turned on.
Release the right button of the transmitter: The terminals “OUT2” of the receiver stops outputting, and the connected light 2 is turned off.
3) Setting Interlocking mode (working with transmitter HR-2): Press and hold the button of receiver until signal LED flashes 1 time, then release button.
Press the left button of the transmitter: The terminals “OUT1” of the receiver outputs AC power, and the connected light 1 is turned on; The terminals “OUT2” of the receiver stops outputting, and the connected light 2 is turned off.
Press the right button of the transmitter: The terminals “OUT2” of the receiver outputs AC power, and the connected light 2 is turned on; The terminals “OUT1” of the receiver stops outputting, and the connected light 1 is turned off.
