Feature:
Wireless control, easy to install.
Control Lights, Motors, Fans, electrically operated Doors/ Locks/ Windows/ Blinds/ Cars or Other Appliances.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 433MHz.
Receiver:
Model No.: S2T-AC110 / S2T-AC220
Channel: 2 CH
Control Modes: Self-locking
Coding Type: Fixed code
Coding Setting: By learning
Power Supply (Operating Voltage): AC100~120V (S2T-AC110), AC200~240V (S2T-AC220)

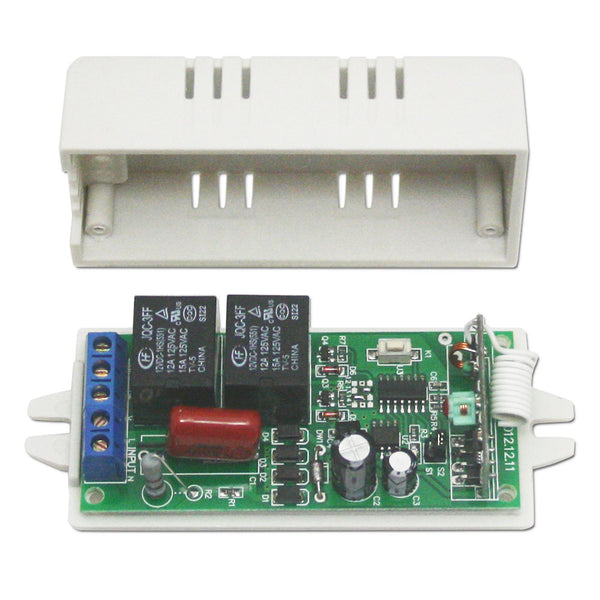

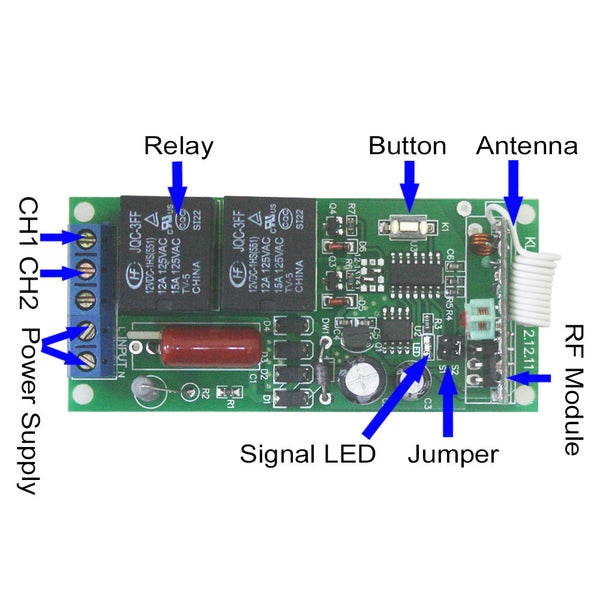

PCB size: 80mm x 35mm x 14mm

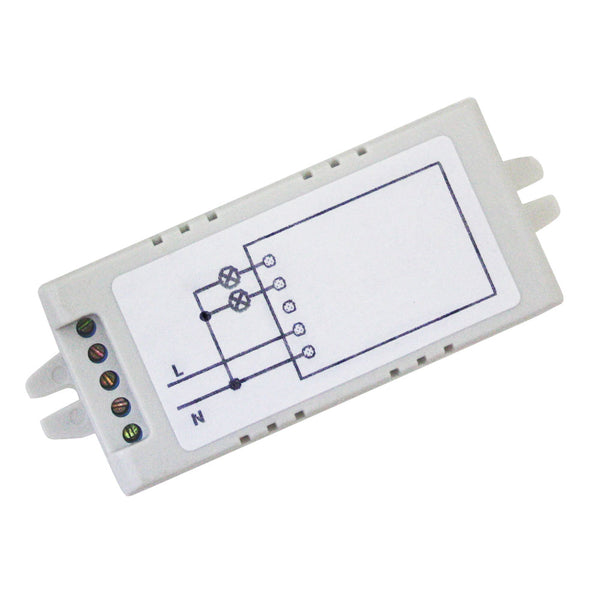

Case size: 100mm x 40mm x 24mm
Maximum Working Current: 3A / each channel
Usage:

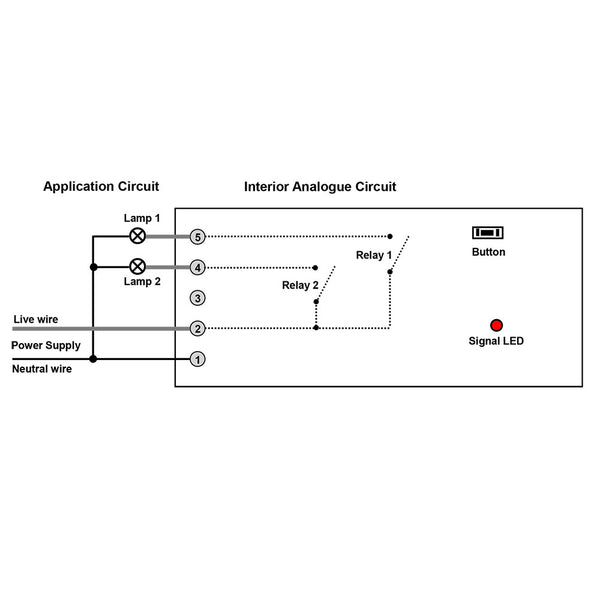

Connect the neutral wire to the terminal “1”, and the live wire to the terminal “2”. Connect the lamp 1 to the terminal “5” and the neutral wire.
Connect the lamp 2 to the terminal “4” and the neutral wire.
1) Press button 1, turn on the lamp 1; Press button 1 again, turn off the lamp 1.
2) Press button 2, turn on the lamp 2; Press button 2 again, turn off the lamp 2.
Package Include:
Receiver: S2T-AC110 / S2T-AC220 (2 Channel / Self-locking Control Mode)
User manual
