Feature:
Wireless control, easy to install.
Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 433MHz

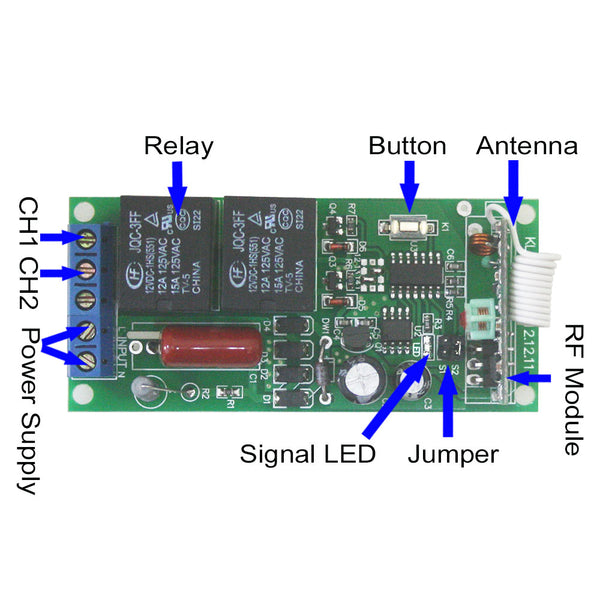

Receiver:
Model No: S2XC-AC220
Channel: 2 CH
Control Modes: Self-locking, Momentary, Interlocking
Coding Setting: By learning
Power Supply (Operating Voltage): AC100~120V (S2M-AC110), AC200~240V (S2M-AC220)

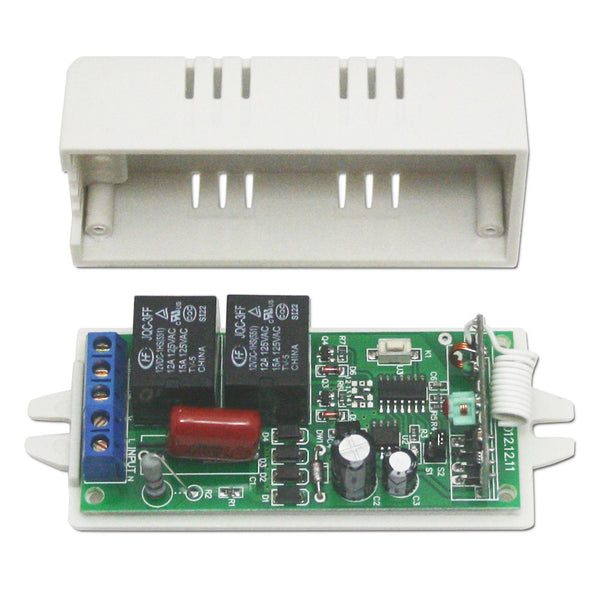

PCB size: 80mm x 35mm x 14mm
Case size: 100mm x 40mm x 24mm
Maximum Working Current: 3A / each channel
Usage:

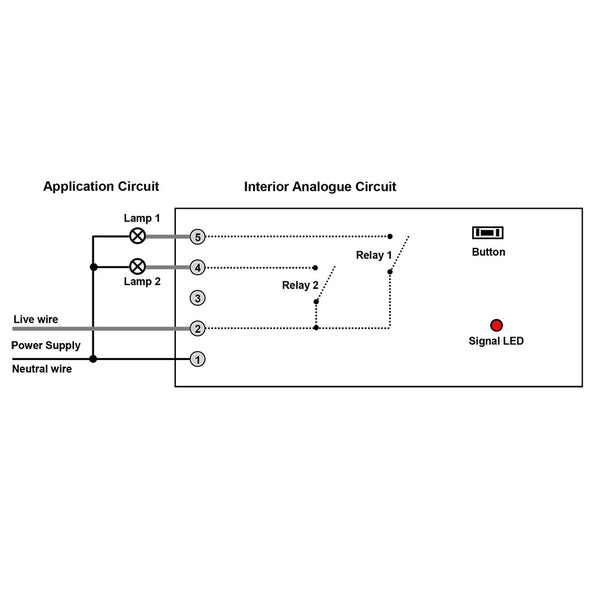

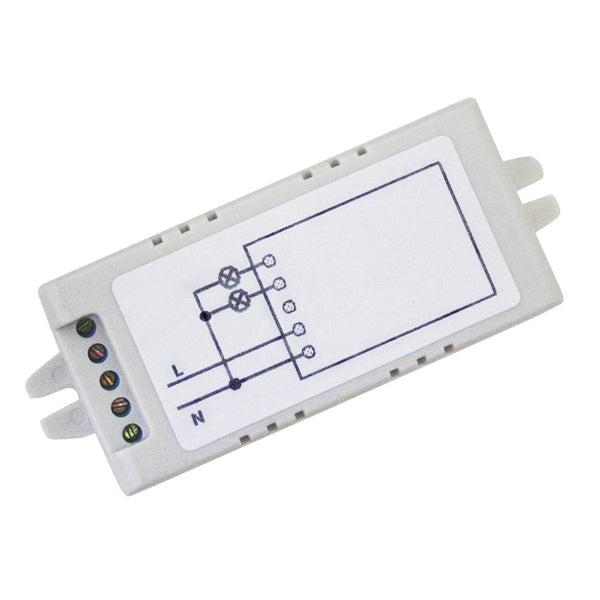

Connect the neutral wire to the terminal “1”, and the live wire to the terminal “2”. Connect the lamp 1 to the terminal “5” and the neutral wire.
Connect the lamp 2 to the terminal “4” and the neutral wire.
Setting different control modes: (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following operation):
1) Setting control mode Self-locking: Connect Jumper-2.
Press button A of the transmitter: Connected lamp 1 is on.
press button A again: Connected lamp 1 is off.
Press button B of the transmitter: The connected lamp 2 is on.
press button B again: Connected lamp 2 is off.
2) Setting control mode Momentary: Disconnect Jumper.
Press and hold button A on the transmitter: Connected lamp 1 is on.
Release button A: Connected lamp 1 is off.
Press and hold button B on the transmitter: Connected lamp 2 is on.
Release button B: Connected lamp 2 is off.
3) Setting control mode Interlocking: Connect Jumper-1.
Press button A on the transmitter: Connected lamp 1 is on; Connected lamp 2 is off.
Press button B on the transmitter: Connected lamp 2 is on; Connected lamp 1 is off.
Package Include:
1 x Receiver: S2XC-AC220
1 x User manual
Wireless control, easy to install.
Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 433MHz
Receiver:
Model No: S2XC-AC220
Channel: 2 CH
Control Modes: Self-locking, Momentary, Interlocking
Coding Setting: By learning
Power Supply (Operating Voltage): AC100~120V (S2M-AC110), AC200~240V (S2M-AC220)
PCB size: 80mm x 35mm x 14mm
Case size: 100mm x 40mm x 24mm
Maximum Working Current: 3A / each channel
Usage:
Connect the neutral wire to the terminal “1”, and the live wire to the terminal “2”. Connect the lamp 1 to the terminal “5” and the neutral wire.
Connect the lamp 2 to the terminal “4” and the neutral wire.
Setting different control modes: (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following operation):
1) Setting control mode Self-locking: Connect Jumper-2.
Press button A of the transmitter: Connected lamp 1 is on.
press button A again: Connected lamp 1 is off.
Press button B of the transmitter: The connected lamp 2 is on.
press button B again: Connected lamp 2 is off.
2) Setting control mode Momentary: Disconnect Jumper.
Press and hold button A on the transmitter: Connected lamp 1 is on.
Release button A: Connected lamp 1 is off.
Press and hold button B on the transmitter: Connected lamp 2 is on.
Release button B: Connected lamp 2 is off.
3) Setting control mode Interlocking: Connect Jumper-1.
Press button A on the transmitter: Connected lamp 1 is on; Connected lamp 2 is off.
Press button B on the transmitter: Connected lamp 2 is on; Connected lamp 1 is off.
Package Include:
1 x Receiver: S2XC-AC220
1 x User manual
