Package Include:
1 x Receiver: S1XW-AC-ANT3
1 x User manual
Introduction:
This receiver is a super long range remote switch. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. It uses a transceiver chip to implement bidirectional communication. Its ideal working distance is up to 5 kilometers, which is an excellent device for remote control and long-distance communication.
Application:
This receiver is an electric device with 1 channel AC power output, it and the transmitter form a wireless remote-control system. This system may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems. The applications are endless.
Feature:
Wireless remote control, easy to install.
Super long working range: With the transmitter forming a complete set, the maximum working distance may reach 5000 meters in an open area.

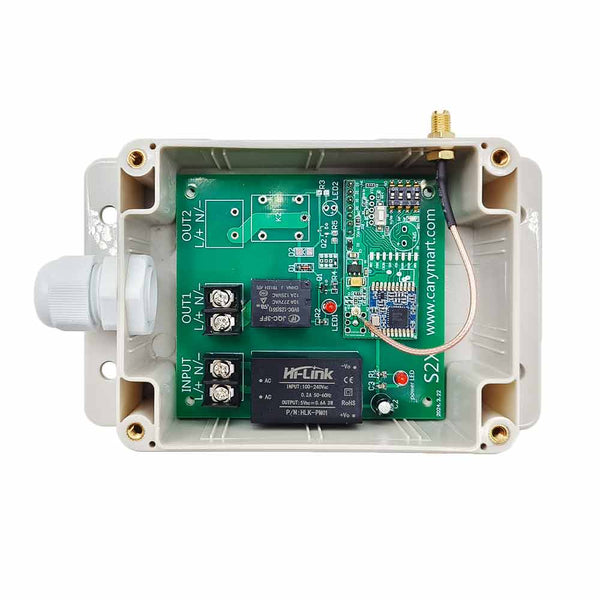

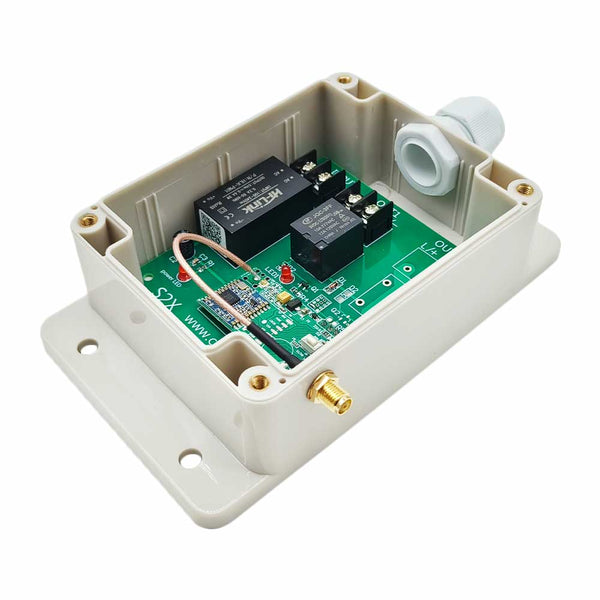

Waterproof: The receiver has waterproof case and waterproof connector; it can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Feedback Function:
The receiver and the transmitter have a Two-way working mode, so the user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the signal from the transmitter, it will immediately transmit a feedback signal to the transmitter. When the transmitter receives this signal, it will send out a buzzing sound to inform you that the receiver has been successfully triggered.
Receiver Parameters:
Model: S1XW-AC-ANT3
Operating Voltage: 110~240V AC (110V/120V/220V/240V)
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: 110~240V AC (110V/120V/220V/240V)
Maximum Load Current of Relay: 10A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20°C ~ +70°C

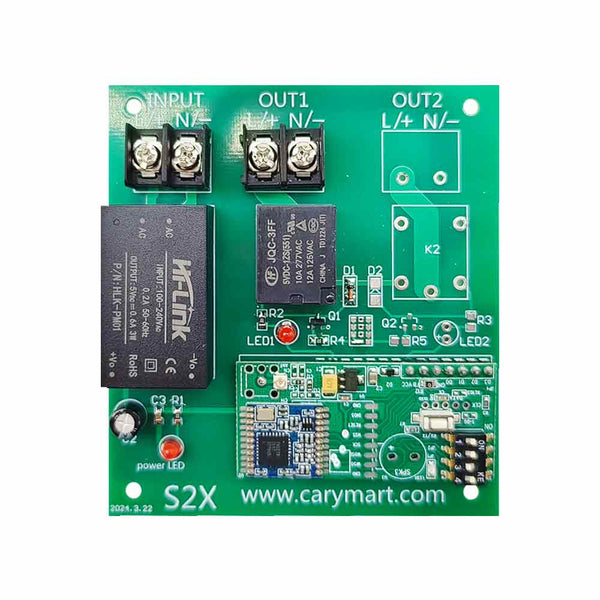

PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 153 x 90 x 55 mm (6.0 x 3.6 x 2.2 inches)
Matching Transmitters:
This receiver only works with 5000m transmitters, such as model CC-1 (1 button, 5000 Meter / 15000 feet), CC-2 (2 buttons, 5000 Meter / 15000 feet), CCW-1 (1 button, waterproof, 5000 Meter / 15000 feet), or CCW-2 (2 buttons, waterproof, 5000 Meter / 15000 feet).
When you set the receiver in Self-locking mode or Momentary mode, it should work with single button transmitter, such as model CC-1 or CCW-1.
When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model CC-2 or CCW-2.
Super Long Working Range:
The receiver and the transmitter form a wireless remote control switch, the maximum working distance may reach 15000 feet or 5000 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no interference. But in the practice, it will be hindered by trees, walls or other construction, and will be interfered by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
Usage:
The receiver can be used to control 110~240VAC devices.

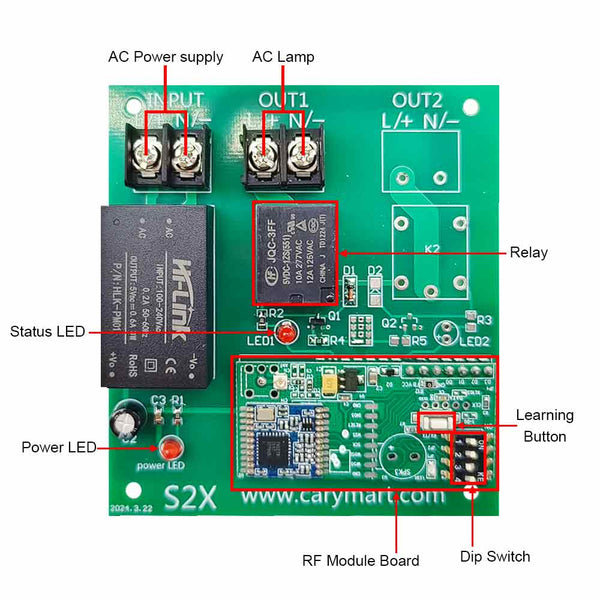

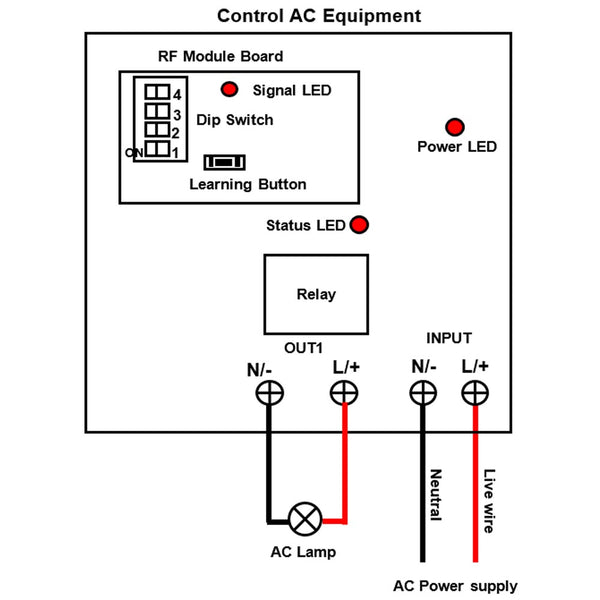

Wiring:
If you want to control an AC 120V or AC 220V lamp, do as following:
1) Connect the live wire of AC power supply to terminal <L/+> of INPUT, and connect the neutral wire of AC power supply to terminal <N/-> of INPUT.
2) Connect the live pole of AC lamp to terminal <L/+> of OUT1, and connect the neutral pole of AC lamp to terminal <N/-> of OUT1.
Setting different control modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Turn on the third bit of the dip switch.
The operation of Self-locking mode with the transmitter CC-1:
Press the button on the transmitter: The terminal <OUT1> of the receiver outputs AC power, and the connected lamp is turned on.
Press the button again: The terminal <OUT1> of the receiver stops outputting, and the connected lamp is turned off.
2) Setting Momentary mode: Turn off the second bit and the third bit of the dip switch.
The operation of Momentary mode with the transmitter CC-1:
Press and hold the button on the transmitter: The terminal <OUT1> of the receiver outputs AC power, and the connected lamp is turned on.
Release the button: The terminal <OUT1> of the receiver stops outputting, and the connected lamp is turned off.
3) Setting Interlocking mode: Turn on the second bit of the dip switch.
The operation of Interlocking mode with the transmitter CC-2:
Press the button A on the transmitter: The terminal <OUT1> of the receiver outputs AC power, and the connected lamp is turned on.
Press the button B on the transmitter: The terminal <OUT1> of the receiver stops outputting, and the connected lamp is turned off.
How to set the feedback function:
You can turn on the fourth bit of the dip switch to activate the feedback function; or turn off the fourth bit to deactivate the feedback function.
Attention: The first bit of the dip switch needs to be set in the ON position.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the factory.
1) Press the learning button in the receiver for 1-2 seconds, until the signal LED on the receiver turns on, this indicates that the receiver enters the learning status.
2) Press any one button on the transmitter within 5 seconds, if signal LED flashes 3 times quickly and then goes off, this indicates that the pairing is successful.
3) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
We have paired the transmitter to the receiver, if you don’t want the receiver to work with the transmitter, you can delete all transmitters codes stored in the receiver.
Operation: Press and hold the learning button in the receiver for 3-4 seconds, the signal LED first comes on, then flashes 3 times quickly and then goes out, at this time release the learning button, this indicates that all stored codes have been successfully deleted successfully.
