Package Include:

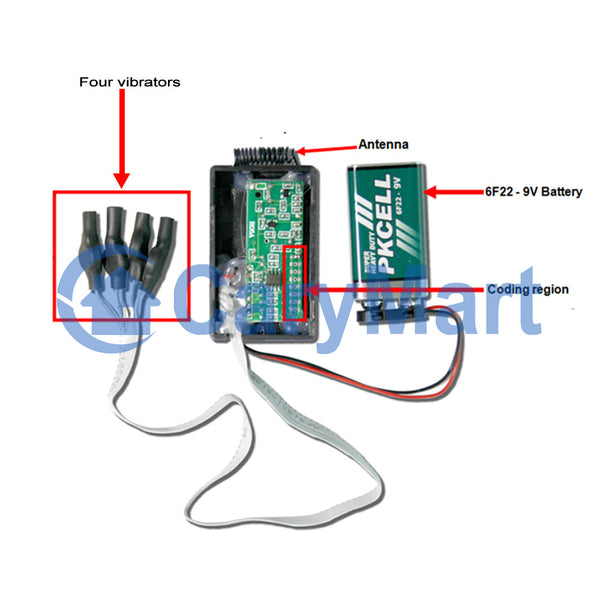

1 x Receiver: Z-01 (Four vibrators)
1 x Transmitter: CP-4
1 x User manual
Feature:
Wireless control.
You can control the receiver with transmitter (remote control) from any place within a reliable distance, the wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency:315MHz

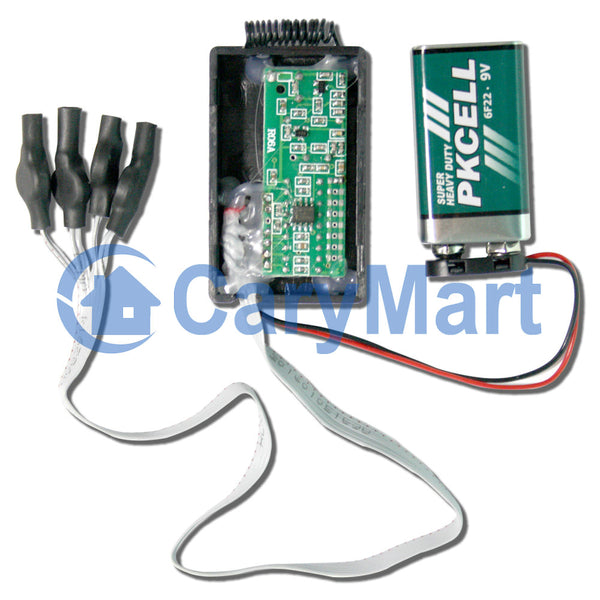

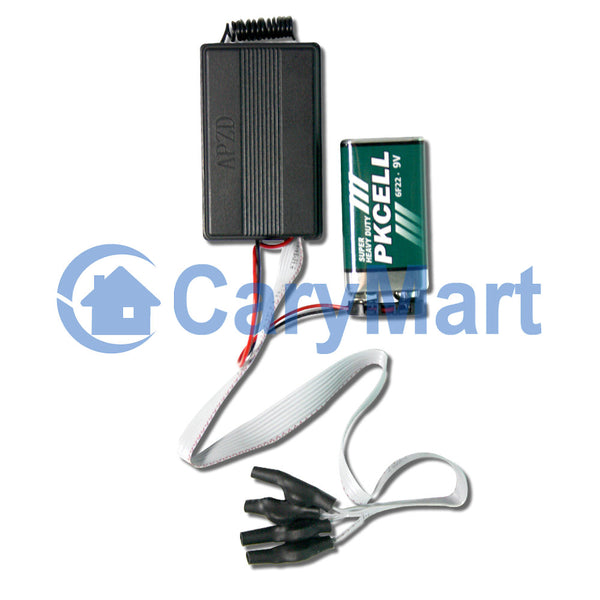

Receiver:
Model No.: Z-01
Mode: Vibration

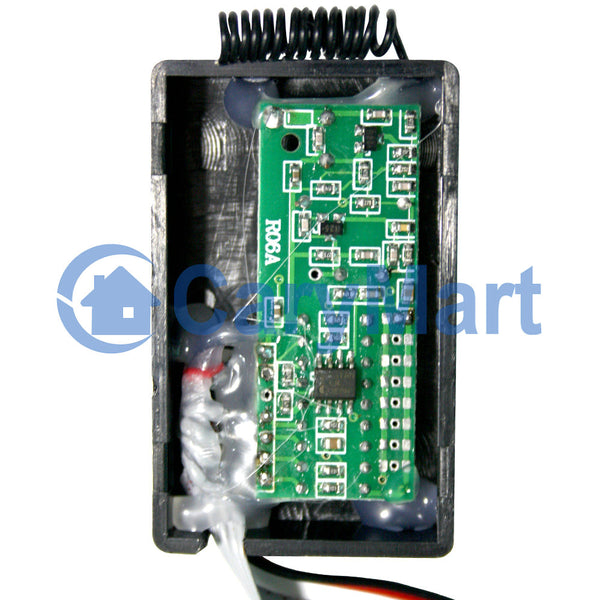

Decode: Fixed code by soldering
Power Supply: 1 x 6F22 - 9V Battery (included)
Size: 58mm x 35mm x 14mm

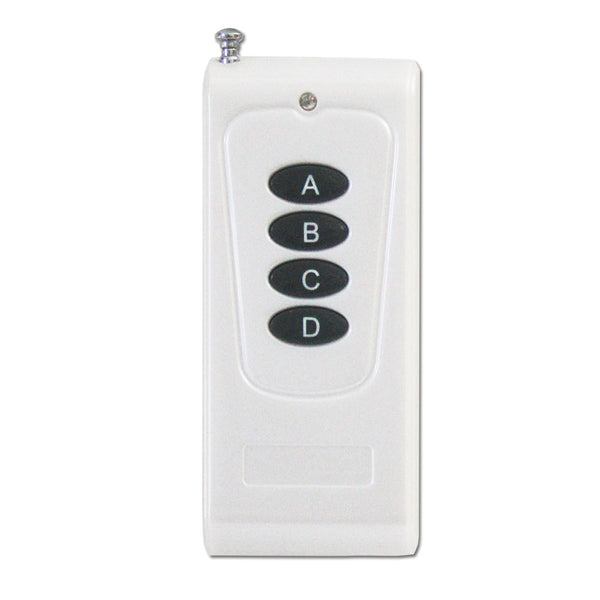

Transmitter:
Model No.: CP-4
Shell Color: White
Channel/Button: 4
Button Symbol: A, B, C, D

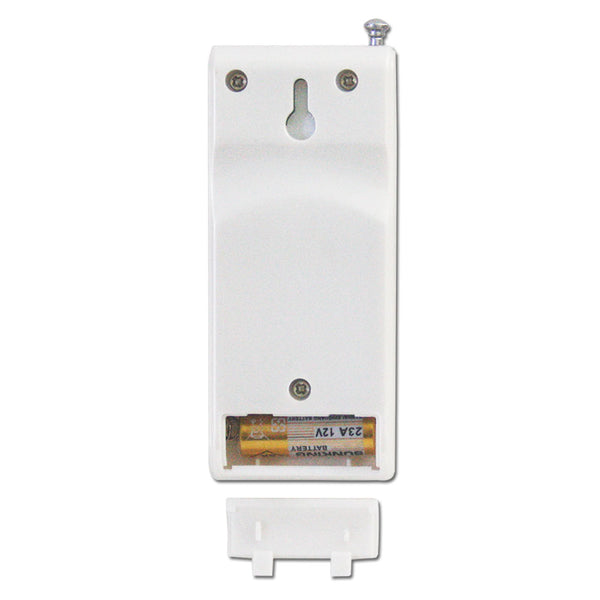

Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 8mA
Operating Frequency: 315Mhz
Encoding Chip: PT2262/ PT2264/ SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 85mm x 36mm x 16mm
Weight: 40g
Usage:
Press and hold button A of transmitter, The first vibrator of the receiver vibrates.
Release button A of transmitter, The first vibrator of the receiver stops.
Press and hold button B of transmitter, The second vibrator of the receiver vibrates.
Release button B of transmitter, The second vibrator of the receiver stops.
Press and hold button C of transmitter, The third vibrator of the receiver vibrates.
Release button C of transmitter, The third vibrator of the receiver stops.
Press and hold button D of transmitter, The fourth vibrator of the receiver vibrates.
Release button D of transmitter, The fourth vibrator of the receiver stops.
Download the User Manual: Wireless Receiver
