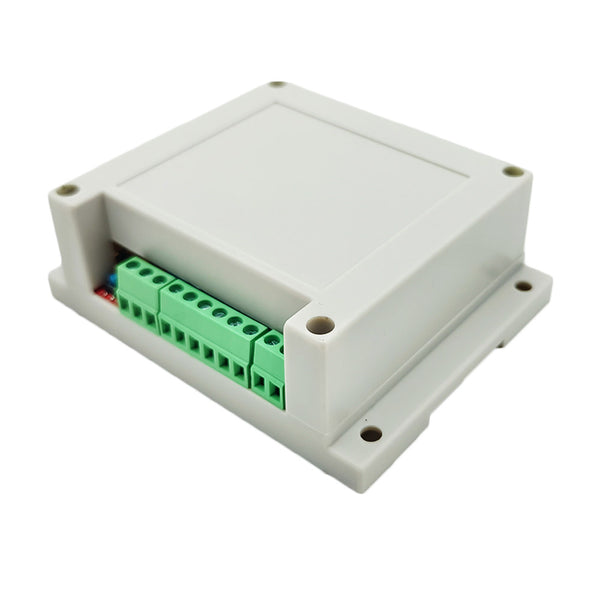

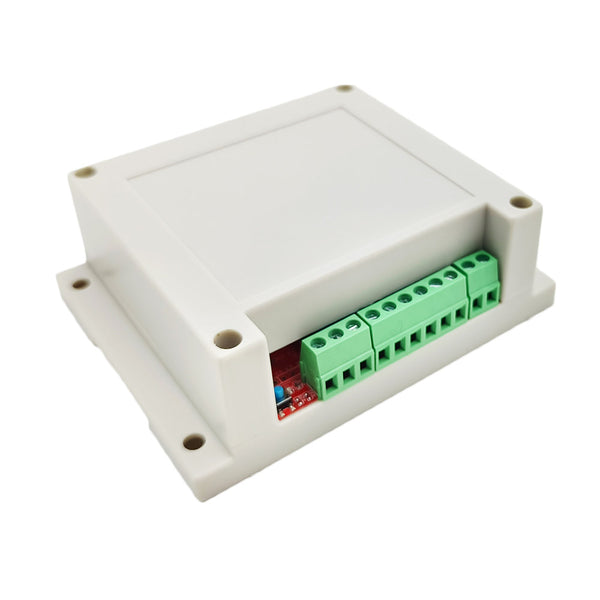

Product Application:
It is suitable for a variety of automation occasions, such as industrial, agricultural, commercial and home intelligence. Through the smart phone and the Internet, we can use this WIFI switch to realize remote control of various devices such as AC lamps, DC lamps, single color LED strips, fans, and household appliances etc. As long as the original device has an ON/OFF power switch, we can use this WiFi switch instead of the power switch to achieve intelligent control.
Product Parameters:
Working voltage: DC 7~30V
Output: relay output (normally open and normally close)
Relay working voltage range: AC 110~240V or DC 0~28V
The range of wires that the terminals can be connected: 22-12 AWG
Channel: 3 Channels
Working mode: Self-locking
Static current: ≤6mA
Working temperature: -20°C ~ +70°C
Maximum load: 10A/channel

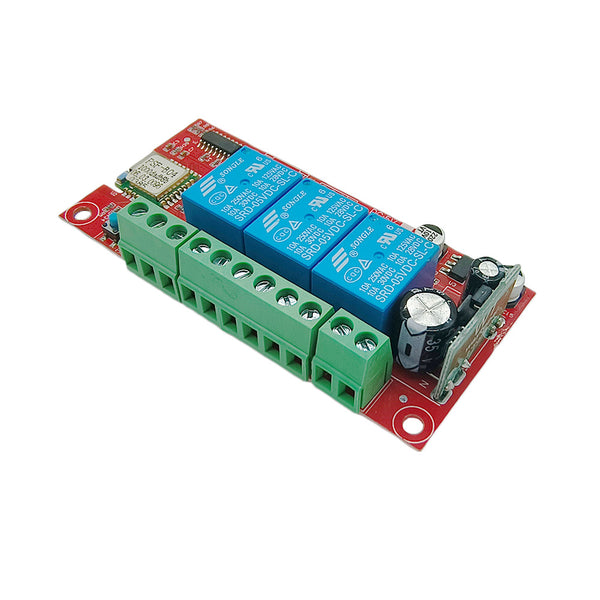

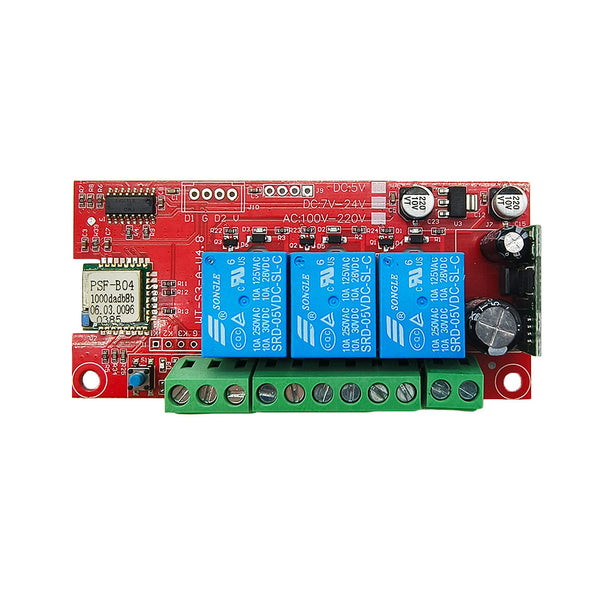

PCB size: 68mm x48mm x19mm

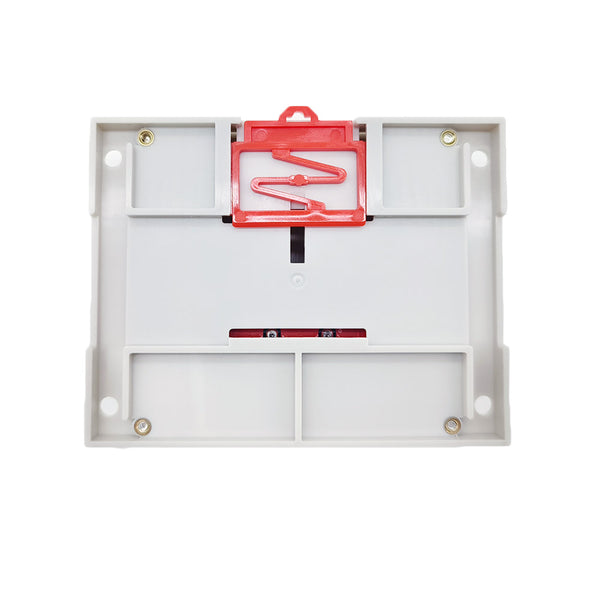

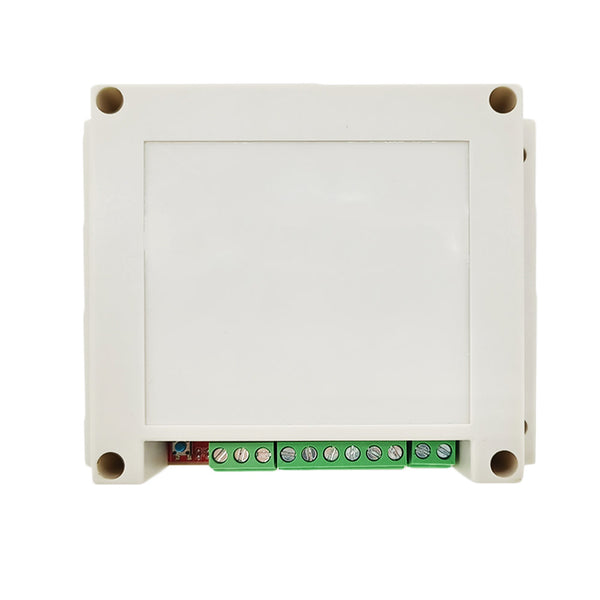

Shell size: 75mm x54mm x27mm
Product Features:
Connect to the Internet via the WIFI signal of the wireless router.
Via smartphone app to control, no distance limit.
Relay output: The output terminal is NO / NC and can be used to control DC or AC equipment.
Manual switch port: Can be connected to manual switches or other devices to control the WiFi switch.
Limited switch port: Can be connected to limit switches or other devices to control the WiFi switch.
It has the characteristics of reverse power protection and overcurrent protection.
It offers apps for Android and iOS and is free to use.
The Android version of the app supports a variety of Android phones or tablets.
The iOS version of the app supports a variety of iPhone, iPad and iPod Touch.
The APP supports English, French, German, Spanish, Russian and other languages.
Timing function: You can set the device to run automatically at different times of the day.
Support for custom scene settings, can get out of the phone to achieve automatic control.
With the sharing function, you can share this device with other mobile phones for common operation.
Product Use:
A. For APP’s installation, registration and use, please refer to the manual of the APP.

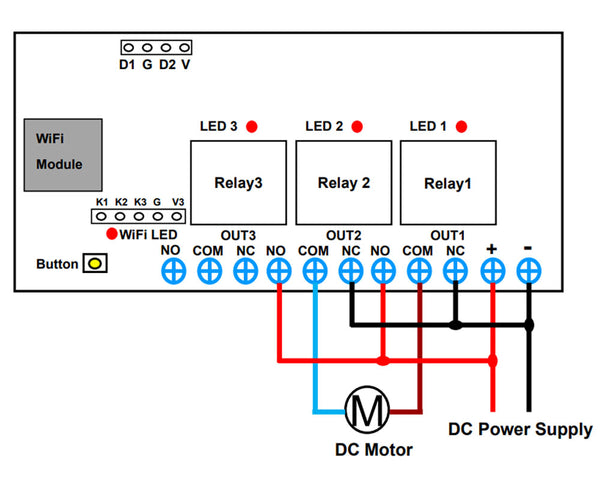

B. Control DC devices, such as three DC lamps, connect as shown below:
1) Connect the positive pole of the DC power supply to the input terminal "+" of the WiFi switch, and connect the negative pole of the DC power supply to the input terminal "-" of the WiFi switch;
2) Connect the positive pole of the DC power supply to the output terminal "NO" of the WiFi switch, connect the output terminal "COM" of the WiFi switch to the positive pole of the DC lamp, and connect the negative pole of the DC lamp to the negative pole of the DC power supply.
C. Control the AC device, such as three AC lamps, connect as shown below:
1) Connect the positive pole of the DC power supply to the input terminal "+" of the WiFi switch, and connect the negative pole of the DC power supply to the input terminal "-" of the WiFi switch;
2) Connect the live wire of the AC power supply to the output terminal "NO" of the WiFi switch, connect the output terminal "COM" of the WiFi switch to one end of the AC lamp, and connect the other end of the AC lamp to the neutral line of the AC power supply.
D. Through the APP operation is as follows:
Press button 1 on the APP, relay 1 is activated (two terminals "NO" and "COM" of OUT1 are connected, two terminals "NC" and "COM" are disconnected), and the lamp 1 is turned on.
Press button 1 on the APP again, relay 1 is deactivated (two terminals "NO" and "COM" of OUT1 are disconnected, two terminals "NC" and "COM" are connected), and lamp 1 is turned off.
Press button 2 on the APP, relay 2 is activated (two terminals "NO" and "COM" of OUT2 are connected, two terminals "NC" and "COM" are disconnected), and the lamp 2 is turned on.
Press button 2 on the APP again, relay 2 is deactivated (two terminals "NO" and "COM" of OUT2 are disconnected, two terminals "NC" and "COM" are connected), and lamp 2 is turned off.
Press button 3 on the APP, relay 3 is activated (two terminals "NO" and "COM" of OUT3 are connected, two terminals "NC" and "COM" are disconnected), and the lamp 3 is turned on.
Press button 3 on the APP again, relay 3 is deactivated (two terminals "NO" and "COM" of OUT3 are disconnected, two terminals "NC" and "COM" are connected), and lamp 3 is turned off.
E. Manual control:
You can connect three two-pin momentary type manual switches respectively to terminals "K1" and "G", "K2" and "G", "K3" and "G" to control the three relays
When use the momentary switch 1 to connect two terminals "K1" and "G", the relay 1 is activated and the lamp 1 is turned on.
When use the momentary switch 1 again to connect two terminals "K1" and "G", the relay 1 is deactivated and the lamp 1 is turned off.
When use the momentary switch 2 to connect two terminals "K2" and "G", the relay 2 is activated and the lamp 2 is turned on.
When use the momentary switch 2 again to connect two terminals "K2" and "G", the relay 2 is deactivated and the lamp 2 is turned off.
When use the momentary switch 3 to connect two terminals "K3" and "G", the relay 3 is activated and the lamp 3 is turned on.
When use the momentary switch 3 again to connect two terminals "K3" and "G", the relay 3 is deactivated and the lamp 3 is turned off.
"eWeLink" APP Download, Registration and Login
Operations of eWeLink APP
