Video :
Operation Video of Wireless Remote Control Switch
Features:
Wireless control, easy to install
Waterproof case with waterproof connectors. The receiver can be installed outdoors.
With high power of 30A
Control DC motors of rolling blinds/doors, projection screens, awnings, pumps, winches, conveyors or other appliances and mechanicals with voltage DC6V/9V/12V/24V.
You can rotate the motor in positive or reversal direction with the transmitter (remote control) from any place within a reliable distance; the wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 433MHz

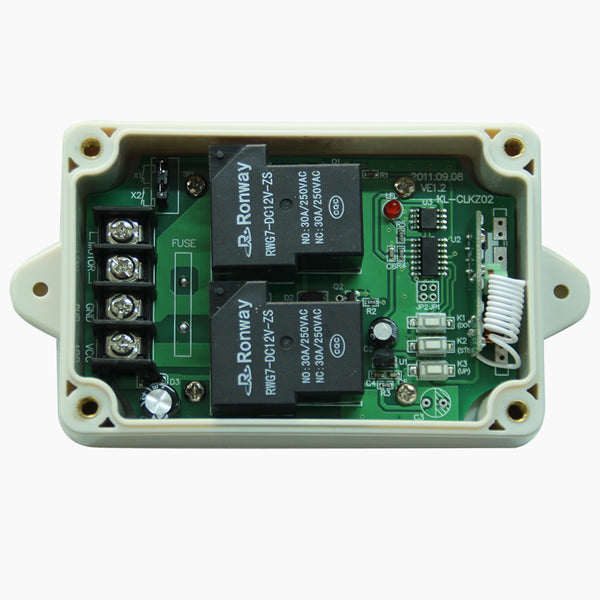

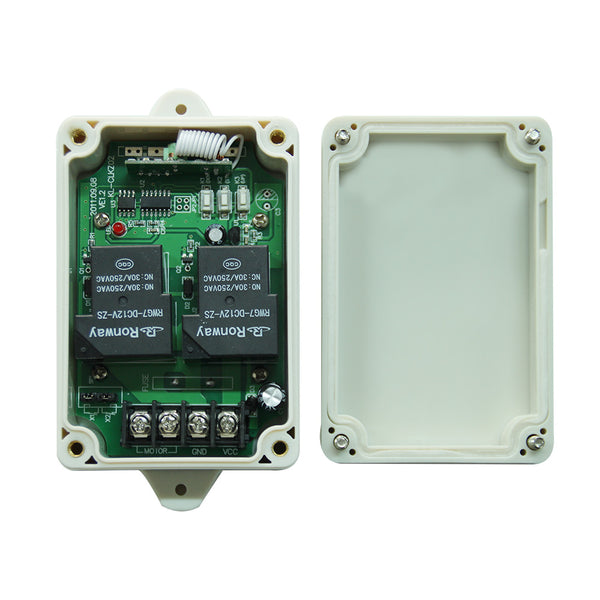

Receiver:
Model No.: S1PF3-DC
Coding Type: Fixed code or learning code
Coding Setting: By learning
Power Supply (Operating Voltage): DC6V (S1PF3-DC06), DC9V±1V (S1PF3-DC09), DC12V±1V (S1PF3-DC12), DC24V±1V (S1PF3-DC24)
Output: DC6V (S1PF3-DC06), DC9V (S1PF3-DC09), DC12V (S1PF3-DC12), DC24V (S1PF3-DC24)

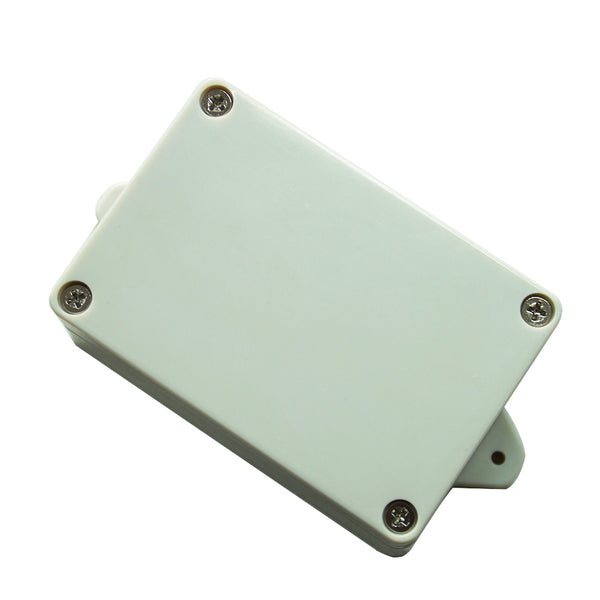

Case Size: 100mm x 67mm x 39mm
Quiescent Current: 5mA
Rated Current: 15A
The Maximum Instantaneous Current of Starting Motor: 30A

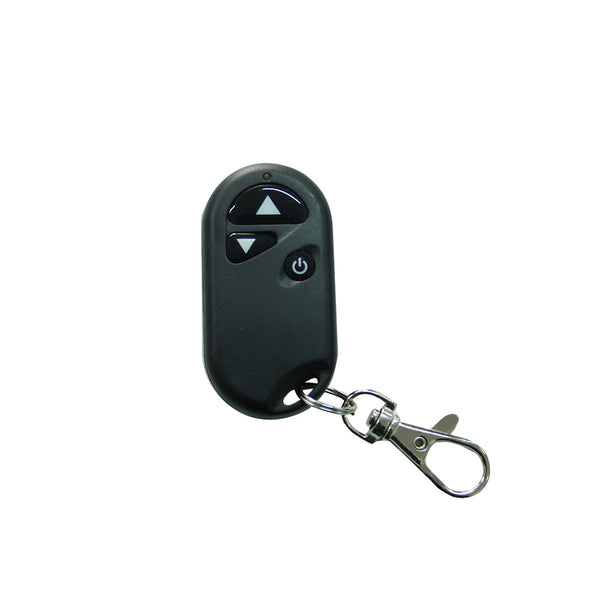

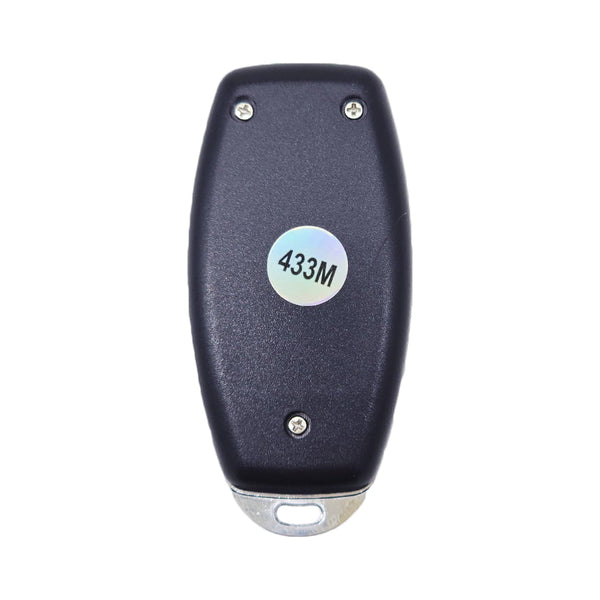

Transmitter:
Model No.: 0021102 (CWC-3)
Channel: 3 CH
Waterproof
Remote Control Distance: 50m/300ft (theoretically)
Encode: Fixed code by soldering
Unit Size: 58mm x 30mm x 12mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)
Usage:

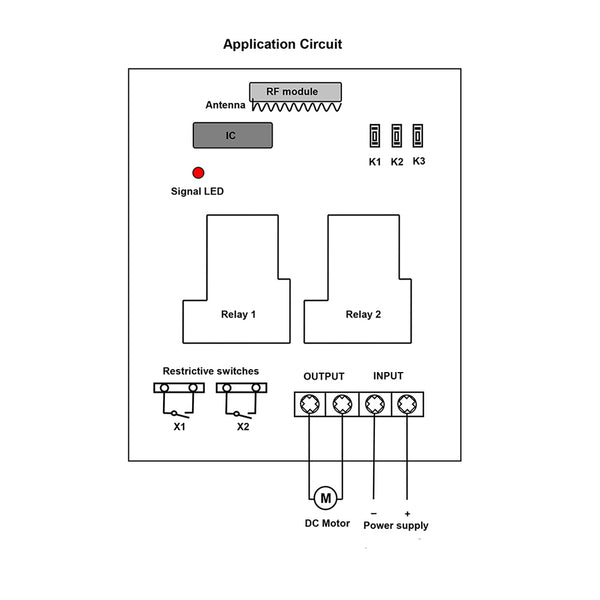

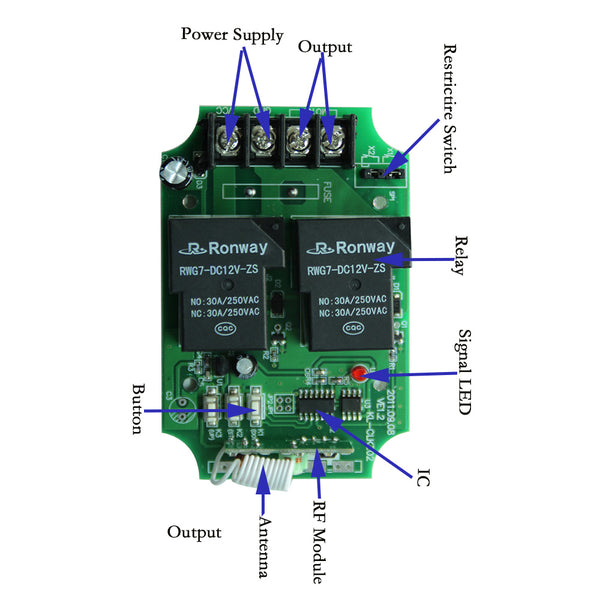

Connect DC power supply to terminal “INPUT”, Connect linear actuator to terminal “OUTPUT”.
Interlocking Mode: Connect JP1
Press button ▲ on remote: linear actuator extends outward.
Press button ▼ on remote: linear actuator retracts inward.
Press button ■ on remote: linear actuator stops.
Momentary Mode: Connect JP2
Press and hold button ▲ on remote: linear actuator extends outward; Release the button, linear actuator stops.
Press and hold button ▼ on remote: linear actuator retracts inward; Release the button, linear actuator stops.
Package Include:
1 x Receiver: S1PF3-DC
2 x Transmitter: CWC-3
1 x User manual
