By using this motor remote control kit, you can remote control DC motor in high power. The motor remote control kit is suitable for the motors of rolling blinds / doors, projection screens, awnings, pumps, winches, conveyors or other appliances and machines. Remote control distance is up to 1000M.
Features:
Application: It can be used in rolling blinds, rolling doors, projection screens, awnings, pumps, winches, conveyors or other appliances and equipments with DC motors, it can remote control DC motor rotates in the positive or reversal direction.
Wireless control, easy to install.

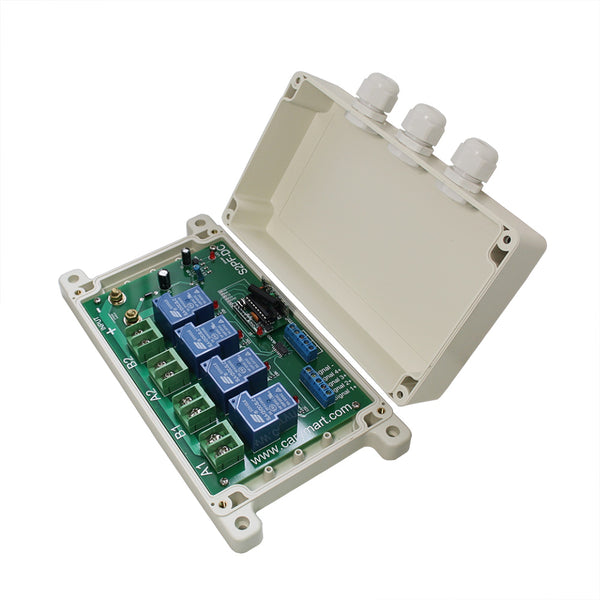

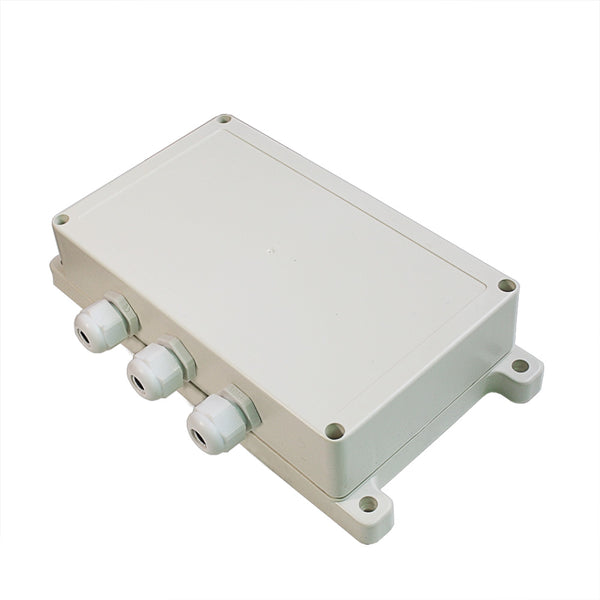

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
You can rotate two motors separately in the positive or reversal direction with the transmitter (remote control) from any place within a reliable distance. The RF wireless signal can pass through walls, floors and doors.
High Power: Each channel can work at maximum current 30A.
With limit control terminals: You can connect limit switches or sensors to stop the motor.
With wired control terminals: You can connect manual switches or external devices (with low level output signal, such as sensors) to control the motor.
Use an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
With characteristics of reverse power protection and over current protection.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Receiver Parameters:
Model No: S2PF-DC06 / S2PF-DC09 / S2PF-DC12 / S2PF-DC24
Control Modes: Momentary, Interlocking,
Coding Type: Fixed code or learning code
Coding Setting: By learning
Power Supply (Operating Voltage): DC6V (S2PF-DC06), DC9V±1V (S2PF-DC09), DC12V±1V (S2PF-DC12), DC24V±1V (S2PF-DC24)
Output: DC6V (S2PF-DC06), DC9V (S2PF-DC09), DC12V (S2PF-DC12), DC24V (S2PF-DC24)
Working Frequency: 433MHz
Channel: 2 CH, can work with 2 DC motors
Static Current: ≤6mA
Maximum Working Current: 30A / each channel, so motor's maximum starting current can not exceed 30A.
PCB Size: 170mm x 109mm x 25mm
Case Size: 200mm x 120mm x 53mm

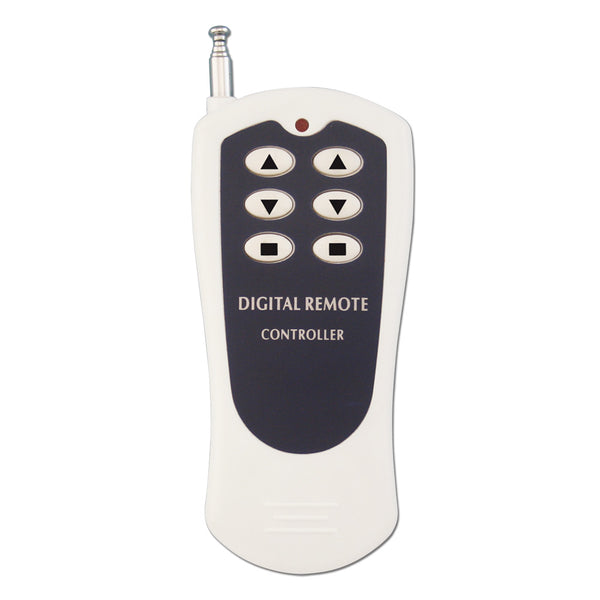

Transmitter Parameters:
Model No.: 0021052 (CV-6-2)
Shell Color: White
Channel/Button: 6
Button Symbol: Two▲, Two▼, Two■

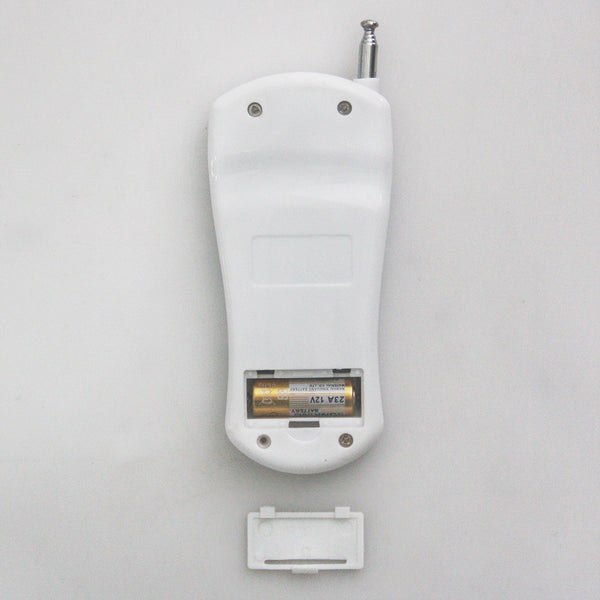

Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433Mhz
Encoding Chip: LX2260A-R4
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 500m / 1500ft (theoretically)
The distance of 500m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 500m.
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm
Weight: 55g
Uses: garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.
Note:
1. The receiver can work with different transmitters. When you set the receiver in momentary mode, it should work with four button transmitters, such as model C-4 (100M), CWB-4 (50M, waterproof), CP-4 (500M), CV-4-2 (500M), or CB-4 (1000M) etc. When you set the receiver in latched mode, it should work with six button transmitters, such as model CP-6 (500M), CV-6-2 (500M), or CB-6 (1000M) etc.
2. With a transmitter (such as CV-6-2) to form a complete set, the working distance can reach 500M in an open ground. The maximum working distance 500M is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may or may not reach 500M. If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB transmitters.
Usage (with transmitter CV-6-2):

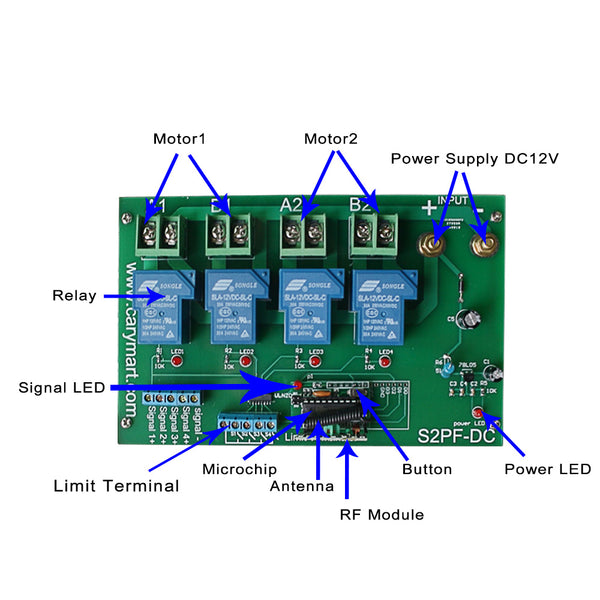

Connect the positive pole of DC power supply to terminal “+” of INPUT, and connect the negative pole of DC power supply to terminal “-” of INPUT.

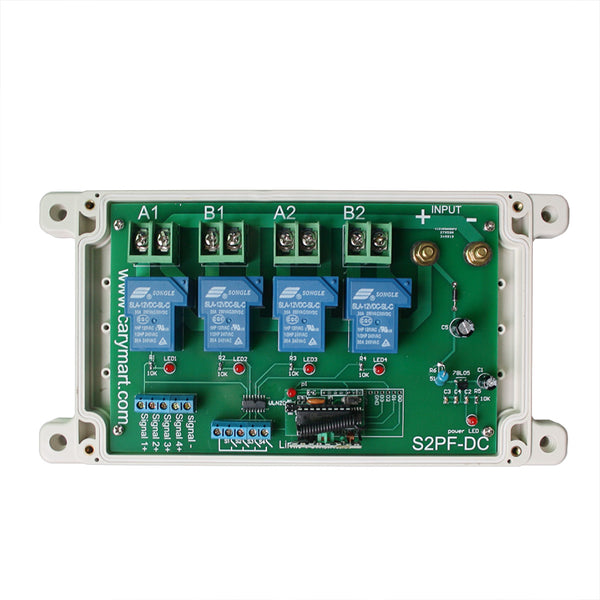

Connect terminals “A1” and “B1” to motor 1; connect terminals “A2” and “B2” to motor 2. You can exchange motor's two wires to change the rotating direction of motor.
Setting control mode Interlocking: Do not connect Jumper-1 (CN1) or Jumper-2 (CN2)
Press button ▲ on the left: motor 1 rotates in positive direction.
Press button ▼ on the left: motor 1 rotates in reversal direction.
Press button ■ on the left: motor 1 stops.
Press button ▲ on the right: motor 2 rotates in positive direction.
Press button ▼ on the right: motor 2 rotates in reversal direction.
Press button ■ on the right: motor 2 stops.
Setting control mode Momentary: Only connect Jumper-1 (CN1)
Press and hold button ▲ on the left: motor 1 rotates in positive direction. Release button ▲ on the left: motor 1 stops.
Press and hold button▼ on the left: motor 1 rotates in reversal direction. Release button ▼ on the left: motor 1 stops.
Press and hold button ▲ on the right: motor 2 rotates in positive direction. Release button▲ on the right: motor 2 stops.
Press and hold button▼ on the right: motor 2 rotates in reversal direction. Release button ▼ on the right: motor 2 stops.
Limit control terminals:
Limit control terminals S1, S2, S3 and S4 are normally open, you can connect limit switches or sensors (normally open type) to terminals S1, S2, S3 and S4, and then you can use limit switches or sensors to stop the motor.
When motor 1 rotates in positive direction, if connect two terminals of S1, the motor 1 will stop automatically.
When motor 1 rotates reversal direction, if connect two terminals of S2, the motor 1 will stop automatically.
When motor 2 rotates in positive direction, if connect two terminals of S3, the motor 2 will stop automatically.
When motor 2 rotates reversal direction, if connect two terminals of S4, the motor 2 will stop automatically.
Wired control terminals:
You can connect manual switches, external devices or sensors (with low level output signal) to control the motor.
1) The manual switches:
You can connect manual switches to terminals “Signal-”, “Signal 1+”, “Signal 2+”, “Signal 3+”, “Signal 4+”, then you can use manual switches to control the motor.
When connect terminals “Signal 1+” and “Signal-”, motor 1 rotates in positive direction. And when disconnect “Signal 1+” and “Signal-”, motor 1 stops.
When connect terminals “Signal 2+” and “Signal-”, motor 1 rotates in reversal direction. And when disconnect “Signal 2+” and “Signal-”, motor 1 stops.
When connect terminals “Signal 3+” and “Signal-”, motor 2 rotates in positive direction. And when disconnect “Signal 3+” and “Signal-”, motor 2 stops.
When connect terminals “Signal 4+” and “Signal-”, motor 2 rotates in reversal direction. And when disconnect “Signal 4+” and “Signal-”, motor 2 stops.
2) Signal input:
You can connect external devices (with low level output signal) to terminals “Signal-”, “Signal 1+”, “Signal 2+”, “Signal 3+”, “Signal 4+”, then the external device’s output signal can control the motor.
When the external device outputs low level signal to terminal “Signal-” and “Signal 1+“, motor 1 rotates in positive direction.
When the external device outputs low level signal to terminal “Signal-” and “Signal 2+“, motor 1 rotates in reversal direction.
When the external device outputs low level signal to terminal “Signal-” and “Signal 3+“, motor 2 rotates in positive direction.
When the external device outputs low level signal to terminal “Signal-” and “Signal 4+“, motor 2 rotates in reversal direction.
Download the User Manual: Wireless Receiver, Remote Controller
