The DC motor is a machine that transforms electric energy into mechanical energy in form of rotation. It can rotate forward or reverse, and you can exchange DC motor's two wires to change the rotating direction of motor.
Application:
Mainly used for remote-controlled car, toy car, miniature DC pump, electric motorbike, ATV, Kart, robot, rolling blind and electric projector etc.
Feature:
Gearhead motor
High quality
With metal cover
Built-in cooling fan
Heavy duty design
Runs in either direction by reversing power supply polarity
Benefiting from high torque and low noise, this motor is solidly constructed and ready to install in numerous applications.
Specifications:
Nominal voltage: 24V DC
Operating voltage range: 12 - 36V DC

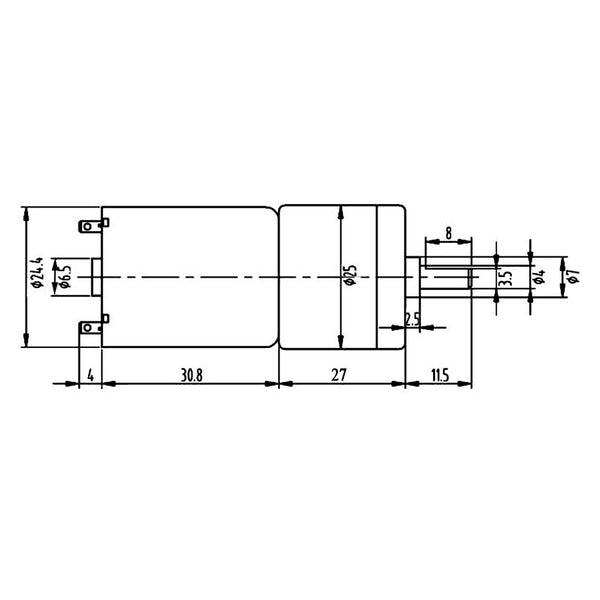

Diameter: 25mm
Length (excluding shaft): 57.8mm
Total length: 73.3mm
Shaft length: 11.5mm
Shaft diameter: 4mm

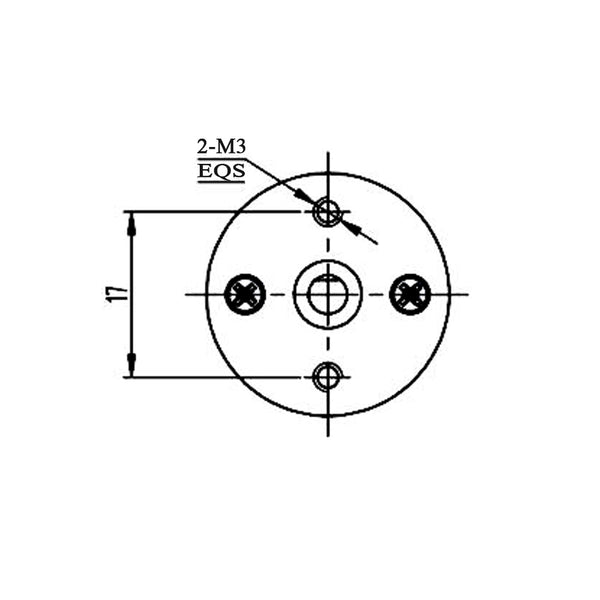

Front panel 3.0mm Screw for fixing this motor
Optional no-load speed at 24V: 10RPM, 22RPM, 48RPM, 111RPM, 178RPM, 409RPM, 863RPM
Application:
Mainly used for remote-controlled car, toy car, miniature DC pump, electric motorbike, ATV, Kart, robot, rolling blind and electric projector etc.
Feature:
Gearhead motor
High quality
With metal cover
Built-in cooling fan
Heavy duty design
Runs in either direction by reversing power supply polarity
Benefiting from high torque and low noise, this motor is solidly constructed and ready to install in numerous applications.
Specifications:
Nominal voltage: 24V DC
Operating voltage range: 12 - 36V DC
Diameter: 25mm
Length (excluding shaft): 57.8mm
Total length: 73.3mm
Shaft length: 11.5mm
Shaft diameter: 4mm
Front panel 3.0mm Screw for fixing this motor
Optional no-load speed at 24V: 10RPM, 22RPM, 48RPM, 111RPM, 178RPM, 409RPM, 863RPM
| No-load speed at 12V | 10 RPM | 22 RPM | 48 RPM | 111 RPM | 178 RPM | 409 RPM | 863 RPM |
| No-load current (MA) | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Load speed (RPM) | 8 | 17 | 38 | 88 | 142 | 327 | 690 |
| Load current (MA) | 260 | 260 | 260 | 260 | 260 | 260 | 260 |
| Operating torque (kg.cm) | 7 | 3.2 | 1.4 | 0.64 | 0.4 | 0.17 | 0.083 |
| Stall torque (kg.cm) | 35 | 16 | 7.4 | 3.2 | 2 | 0.88 | 0.4 |
| Stall current (MA) | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Gear ratio | 1:378 | 1:171 | 1:78 | 1:34 | 1:21.3 | 1:9.28 | 1:4.4 |
