This is the operation video of wireless remote control AC lamp , you can click the website: https://www.youtube.com/watch?v=p1Gyh2Fk7TQ&feature=youtu.be
Feature:
Wireless control, easy to install
Control Lights, Motors, Fans, electrically operated Doors / Locks / Windows / Blinds /
Cars or Other Appliances with voltage of AC 200~240V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Audible / visual indication
Use microcontroller model of EM78P156, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 433MHz
Receiver:

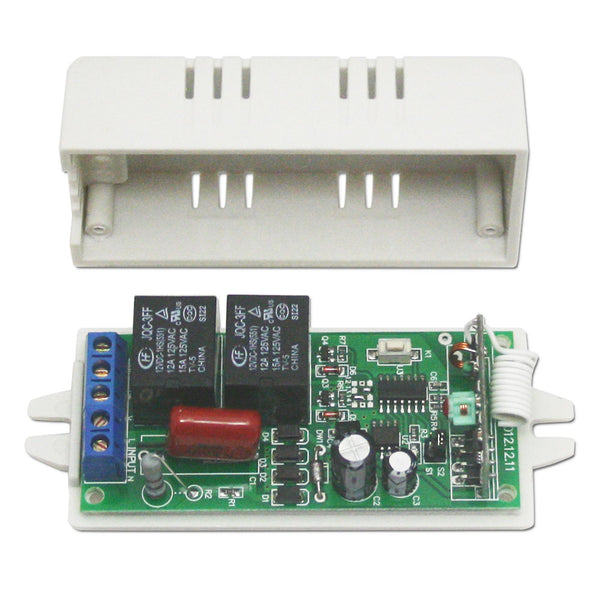

Model No.: S2XC-AC
Channel: 2 CH
Control Modes: Self-locking, Momentary, Interlocking
Coding Type: Fixed code or learning code
Coding Setting: By learning
Power Supply (Operating Voltage): AC200~240V (S2XC-AC220)
PCB size: 80mm x 35mm x 14mm
Case size: 100mm x 40mm x 24mm
Maximum Working Current: 3A/each channel
Transmitter:

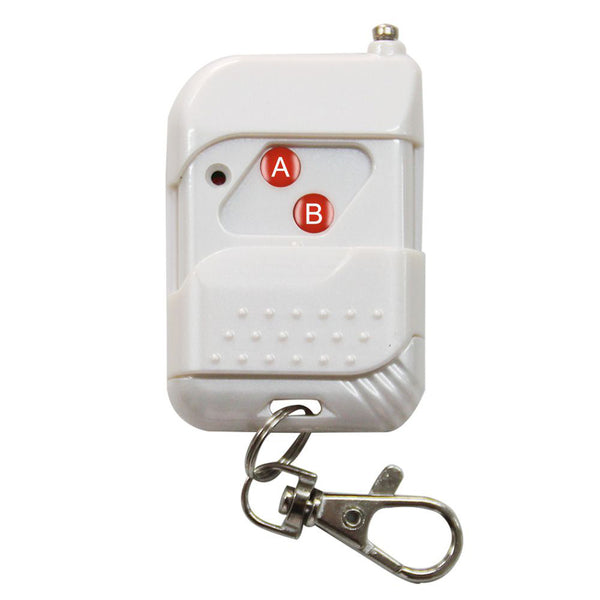

Model No.: C-2
Channel: 2 CH
Remote Control Distance: 100m / 300ft (theoretically)
Encode: Fixed code by Soldering
Unit size: 58mm x 39mm x 16mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)
Usage:

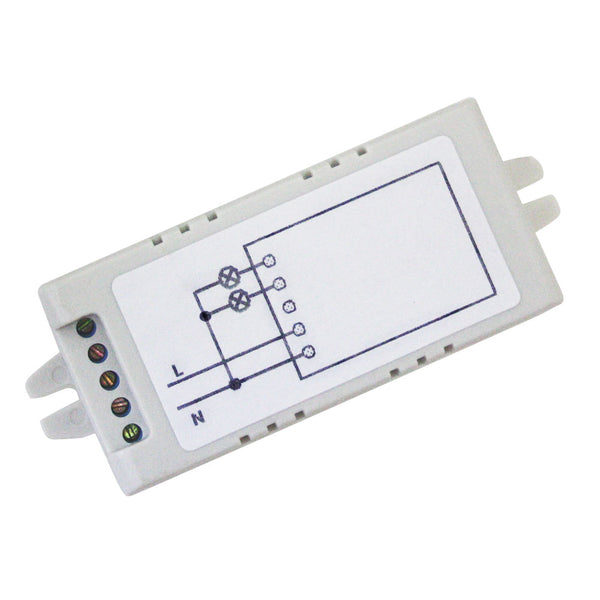

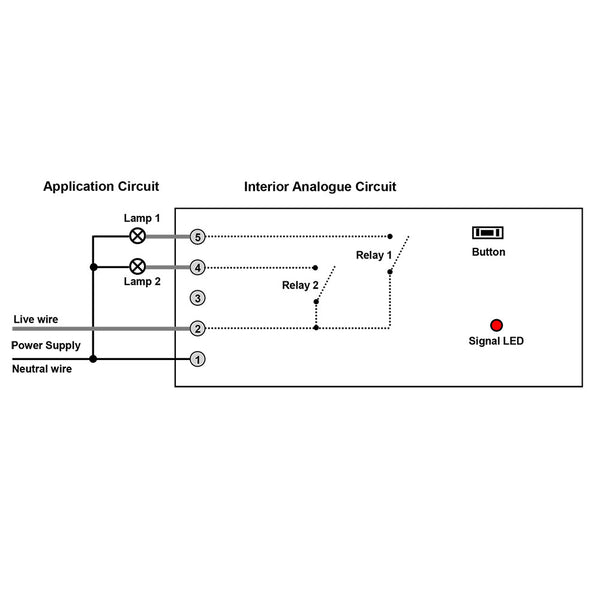

Connect the neutral wire to the terminal “1”, and the live wire to the terminal “2”. Connect the lamp 1 to the terminal “5” and the neutral wire. Connect the lamp 2 to the terminal “4” and the neutral wire.
Setting different control modes (We have set the receiver as Self-locking mode before delivery. If you want to use other modes, do as following):

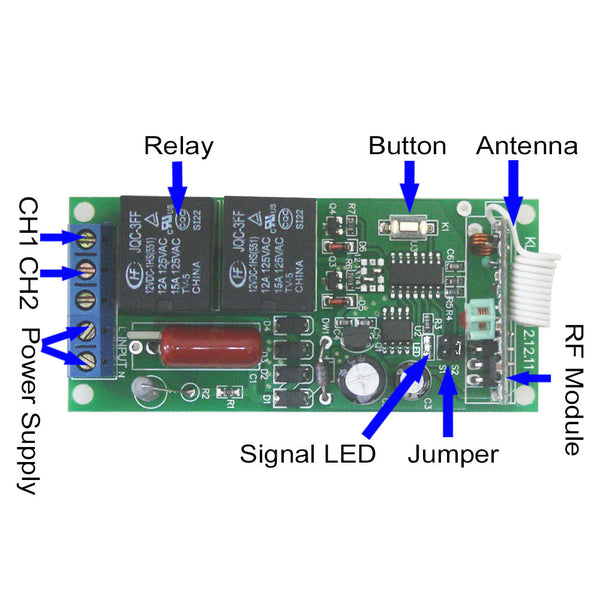

Setting control mode Self-locking: Only connect Jumper-1.
Press button 1: Turn on the relay, terminal OUT outputs AC power.
Press button 1 again: Turn off the relay, terminal OUT no output.
Setting control mode Momentary: Do not connect Jumper-1 and Jumper-2.
Press and hold button 1: Turn on the relay, terminal OUT outputs AC power.
Release button 1: Turn off the relay, terminal OUT no output.
Setting control mode Interlocking: Only connect Jumper-2.
Press button 1: Turn on the relay, terminal OUT outputs AC power.
Press button 2: Turn off the relay, terminal OUT no output.
Package Include:

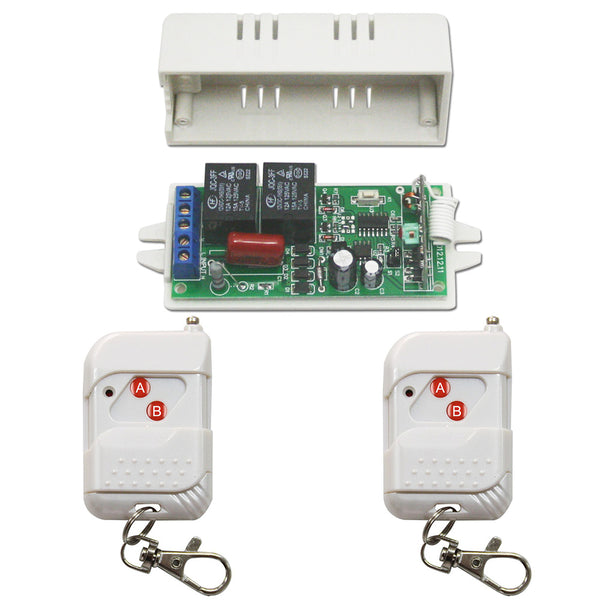

1 x Receiver: S2XC-AC220 (2 Channel / Three Control Modes)
2 x Transmitter: C-2
1 x User manual
Feature:
Wireless control, easy to install
Control Lights, Motors, Fans, electrically operated Doors / Locks / Windows / Blinds /
Cars or Other Appliances with voltage of AC 200~240V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Audible / visual indication
Use microcontroller model of EM78P156, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 433MHz
Receiver:
Model No.: S2XC-AC
Channel: 2 CH
Control Modes: Self-locking, Momentary, Interlocking
Coding Type: Fixed code or learning code
Coding Setting: By learning
Power Supply (Operating Voltage): AC200~240V (S2XC-AC220)
PCB size: 80mm x 35mm x 14mm
Case size: 100mm x 40mm x 24mm
Maximum Working Current: 3A/each channel
Transmitter:
Model No.: C-2
Channel: 2 CH
Remote Control Distance: 100m / 300ft (theoretically)
Encode: Fixed code by Soldering
Unit size: 58mm x 39mm x 16mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)
Usage:
Connect the neutral wire to the terminal “1”, and the live wire to the terminal “2”. Connect the lamp 1 to the terminal “5” and the neutral wire. Connect the lamp 2 to the terminal “4” and the neutral wire.
Setting different control modes (We have set the receiver as Self-locking mode before delivery. If you want to use other modes, do as following):
Setting control mode Self-locking: Only connect Jumper-1.
Press button 1: Turn on the relay, terminal OUT outputs AC power.
Press button 1 again: Turn off the relay, terminal OUT no output.
Setting control mode Momentary: Do not connect Jumper-1 and Jumper-2.
Press and hold button 1: Turn on the relay, terminal OUT outputs AC power.
Release button 1: Turn off the relay, terminal OUT no output.
Setting control mode Interlocking: Only connect Jumper-2.
Press button 1: Turn on the relay, terminal OUT outputs AC power.
Press button 2: Turn off the relay, terminal OUT no output.
Package Include:
1 x Receiver: S2XC-AC220 (2 Channel / Three Control Modes)
2 x Transmitter: C-2
1 x User manual
