Package Include:
1 x Transmitter: CB-2N-2
1 x User manual
Working Principle:
Transmitter CB-2N-2 is a special long range remote control with normally open contact trigger, and it can be triggered by two dry contacts instead of two manually operated buttons. It has 3 input wires for connecting two devices with normally open contact, such as warning host, cable detectors, various sensors, limit switches, Programmable Logic Controllers and so on.
This transmitter can be combined with different types of receivers to form a wireless control system, and this system is used to wirelessly control the device A through the device B with normally open contact.
Application:

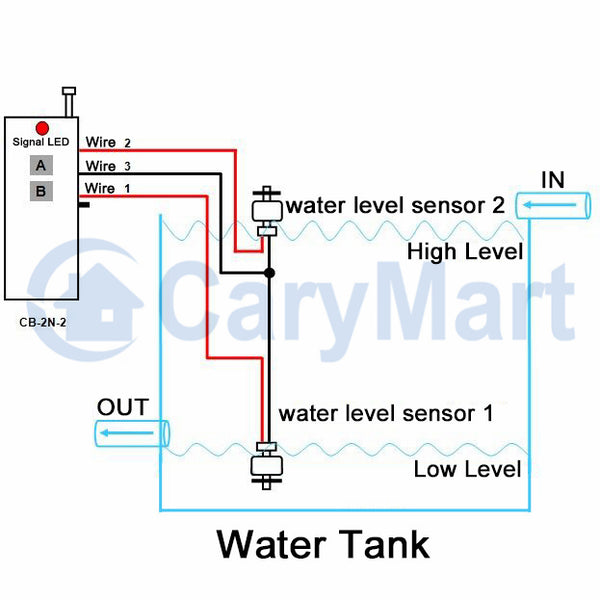

You can use this transmitter and the receiver to remotely control the AC or DC devices by the normally open contact of another device. Such as water pump automatic control system for tank (see attached diagram). You can connect two water level sensors to this transmitter, and connect the water pump to the receiver, then the pump will automatically work according to the water level.
When the water reaches the low water level, the water level sensor 1 is triggered, the transmitter automatically emits a wireless signal "ON". When the receiver receives this wireless signal, it will turn on the pump motor to pump water into the tank.
When the water reaches the high water level, the water level sensor 2 is triggered, the transmitter automatically emits a wireless signal "OFF". When the receiver receives this wireless signal, it will turn off the pump motor to stop pumping water.
Feature:
Wireless control, easy to install.
Triggered By Two Normally Open Dry Contacts.
Wireless RF signal can pass through walls, floors, doors or windows.
Reliable control: The signal has thousands of different combinations, and the receiver only works with the transmitter which use the same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

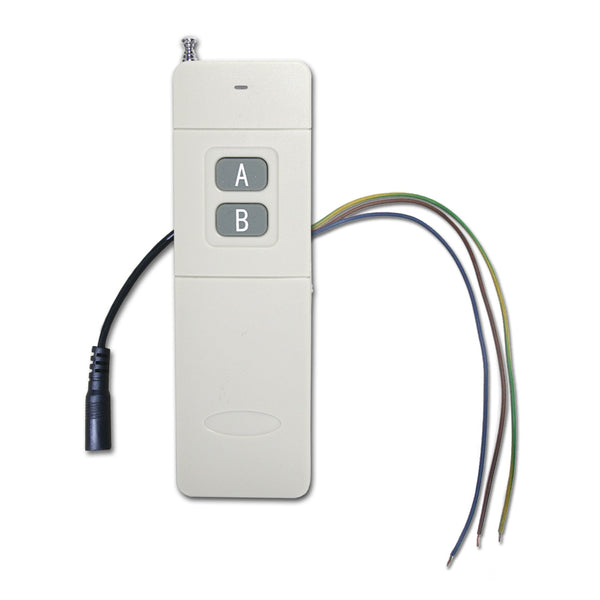

Transmitter Parameters:
Model No.: 0021046 (CB-2N-2)
With External Trigger Wires.
Triggering method: When wire 1 and wire 3 are connected, it will send wireless signal "ON". When wire 2 and wire 3 are connected, it will send wireless signal "OFF".
Channel/Button: 2
Button Symbol: A, B

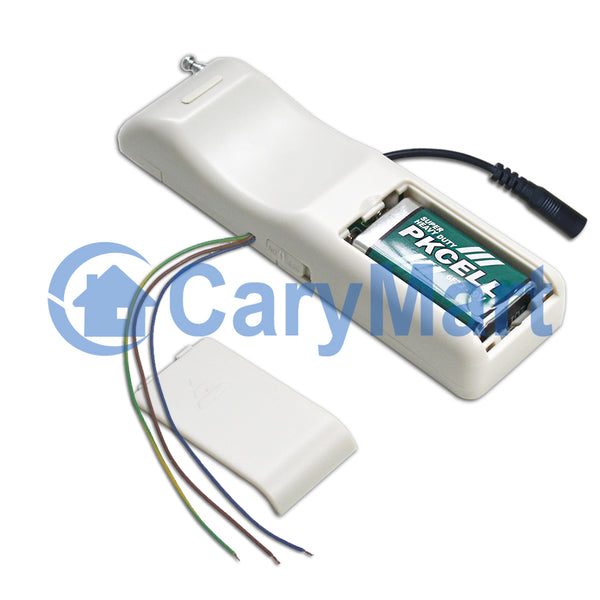

Operating Voltage: 9V (1 x 6F22-9V battery, can be used for a week; or 1 x 9V Rechargeable Lithium Battery, can be used for two weeks. If you want a longer working time, please use a 9V power adapter.)
Operating Current: 30mA
Operating Frequency: 315MHz
Encoding Chip: PT2262 / PT2264 / SC2262
Transmitting Distance: 1000m / 3000ft (theoretically)

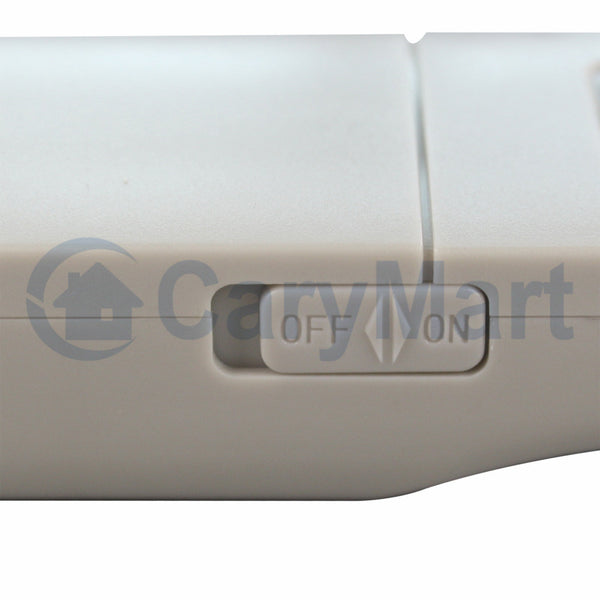

It has an power switch on the side.
Unit Size: 135mm x 42mm x 25mm
Working Range:
With a receiver (such as S1UA-DC-ANT3) to form a complete set, the maximum working distance can reach 1000M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
Usage:
If you want to control the device A by the normally open contacts of the device B, do as following:
1. Connect the device A to the receiver.
2. Connect the normally open contact 1 from the device B to the transmitter's input wires 1 and 3.
3. Connect the normally open contact 2 from the device B to the transmitter's input wires 2 and 3.
4. When the normally open contact 1 is connected, the transmitter's input wires 1 and 3 is also connected, the transmitter automatically emits a wireless signal "ON", which is equivalent to the function of the button "ON" on the transmitter. When the receiver receives this wireless signal, it will activate its relay to turn on the device A.
5. When the normally open contact 2 is connected, the transmitter's input wires 2 and 3 is also connected, the transmitter automatically emits a wireless signal "OFF", which is equivalent to the function of the button "OFF" on the transmitter. When the receiver receives this wireless signal, it will deactivate its relay to turn off the device A.
6. You also can press two buttons on the transmitter to turn on / off the device A.
The transmitter can remote control different receivers, including :
Relay Output: Latched Control Mode
0020197 (S1UA-DC-ANT3) , 0020466 (S1U-AC-ANT3) , 0020302 (S1PU-DC-ANT3) , 0020488 (S1PU-AC-ANT3)
Power Output: Latched Control Mode
0020490 (S1X-DC-ANT3) , 0020393 (S1X-AC-ANT3) , 0020052 (S1PX-DC-ANT3) , 0020053 (S1PX-AC-ANT3)
1 x Transmitter: CB-2N-2
1 x User manual
Working Principle:
Transmitter CB-2N-2 is a special long range remote control with normally open contact trigger, and it can be triggered by two dry contacts instead of two manually operated buttons. It has 3 input wires for connecting two devices with normally open contact, such as warning host, cable detectors, various sensors, limit switches, Programmable Logic Controllers and so on.
This transmitter can be combined with different types of receivers to form a wireless control system, and this system is used to wirelessly control the device A through the device B with normally open contact.
Application:
You can use this transmitter and the receiver to remotely control the AC or DC devices by the normally open contact of another device. Such as water pump automatic control system for tank (see attached diagram). You can connect two water level sensors to this transmitter, and connect the water pump to the receiver, then the pump will automatically work according to the water level.
When the water reaches the low water level, the water level sensor 1 is triggered, the transmitter automatically emits a wireless signal "ON". When the receiver receives this wireless signal, it will turn on the pump motor to pump water into the tank.
When the water reaches the high water level, the water level sensor 2 is triggered, the transmitter automatically emits a wireless signal "OFF". When the receiver receives this wireless signal, it will turn off the pump motor to stop pumping water.
Feature:
Wireless control, easy to install.
Triggered By Two Normally Open Dry Contacts.
Wireless RF signal can pass through walls, floors, doors or windows.
Reliable control: The signal has thousands of different combinations, and the receiver only works with the transmitter which use the same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Transmitter Parameters:
Model No.: 0021046 (CB-2N-2)
With External Trigger Wires.
Triggering method: When wire 1 and wire 3 are connected, it will send wireless signal "ON". When wire 2 and wire 3 are connected, it will send wireless signal "OFF".
Channel/Button: 2
Button Symbol: A, B
Operating Voltage: 9V (1 x 6F22-9V battery, can be used for a week; or 1 x 9V Rechargeable Lithium Battery, can be used for two weeks. If you want a longer working time, please use a 9V power adapter.)
Operating Current: 30mA
Operating Frequency: 315MHz
Encoding Chip: PT2262 / PT2264 / SC2262
Transmitting Distance: 1000m / 3000ft (theoretically)
It has an power switch on the side.
Unit Size: 135mm x 42mm x 25mm
Working Range:
With a receiver (such as S1UA-DC-ANT3) to form a complete set, the maximum working distance can reach 1000M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
Usage:
If you want to control the device A by the normally open contacts of the device B, do as following:
1. Connect the device A to the receiver.
2. Connect the normally open contact 1 from the device B to the transmitter's input wires 1 and 3.
3. Connect the normally open contact 2 from the device B to the transmitter's input wires 2 and 3.
4. When the normally open contact 1 is connected, the transmitter's input wires 1 and 3 is also connected, the transmitter automatically emits a wireless signal "ON", which is equivalent to the function of the button "ON" on the transmitter. When the receiver receives this wireless signal, it will activate its relay to turn on the device A.
5. When the normally open contact 2 is connected, the transmitter's input wires 2 and 3 is also connected, the transmitter automatically emits a wireless signal "OFF", which is equivalent to the function of the button "OFF" on the transmitter. When the receiver receives this wireless signal, it will deactivate its relay to turn off the device A.
6. You also can press two buttons on the transmitter to turn on / off the device A.
The transmitter can remote control different receivers, including :
Relay Output: Latched Control Mode
0020197 (S1UA-DC-ANT3) , 0020466 (S1U-AC-ANT3) , 0020302 (S1PU-DC-ANT3) , 0020488 (S1PU-AC-ANT3)
Power Output: Latched Control Mode
0020490 (S1X-DC-ANT3) , 0020393 (S1X-AC-ANT3) , 0020052 (S1PX-DC-ANT3) , 0020053 (S1PX-AC-ANT3)
